Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC213553538-X
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Position And Way: 2/2 Way Voltage: AC, DC All Available
Mounting Type: Flange Guide Tube And Outer Diameter: 13.5mm
Installation Height For Coil: 50.8mm Plunger Seal For Orifice Diameter: 10.5mm
Application: DMF Series Pulse Valve Guide Tube Material: Stainless Steel
High Light:

solenoid valve stem

,

stainless steel valve stems

SBFEC Type New Version Solenoid Stem DMF Series Dust Collector Pulse Valve Armature Repair Kits FKM Seals

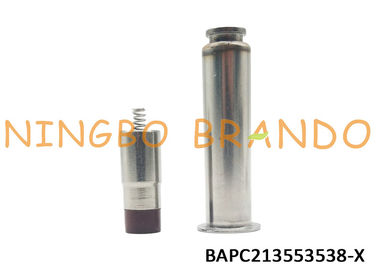

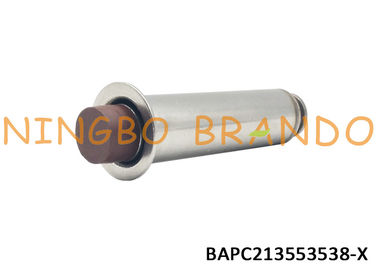

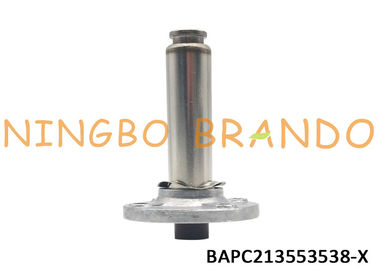

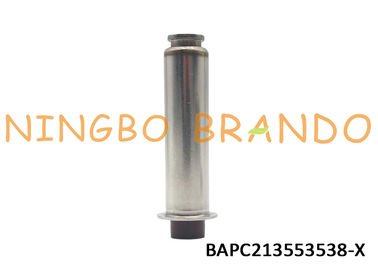

This solenoid armature is the main part of DMF series dust collector solenoid valve. The solenoid stem can be replacement of SBFEC type solenoid pulse valve. The Electrical signal application to the plunger , control the spring for controlling the fluid go or not go. We are a professional manufacturer of armature assembly in China. Using specialized materials for production, Brando's line of armatures boast exceptional quality and precision. Even after long hours of usage and continuous operation, the products does not accumulate magnetism allows fast separation.


Position And Way:2/2 Way
Voltage: AC, DC All Available
Mounting Type:Flange
Guide Tube And Outer Diameter:13.5mm
Installation Height For Coil:50.8mm
Plunger Seal For Orifice Diameter:10.5mm
Application:DMF Series Pulse Valve
Guide Tube Material:Stainless Steel

Repair Kits Armature Assembly Overall Dimensions for SBFEC Type pulse valve:
Repair Kits Armature Assembly Overall Dimensions for SBFEC Type pulse valve

Technical Data About SBFEC Type Pulse Valve stem:

Model BAPC213553538
Type 2/2 Way
Function Normally Closed (NC)
Core Tube Material 304 Stainless steel
Moving Core Material Stainless steel 430FR
Seal Material NBR, HNBR, FKM, EPDM, Silicone, all available
Suitable Coil Hole Diameter 13.5mm
Suitable Coil Height 50.8mm
Inlet Orifice Max 10.5mm
Voltage DC, AC
Connection Flange
Application Examples DMF-Z, DMF-ZM, DMF-Y, DMF-T Series Pulse Valve

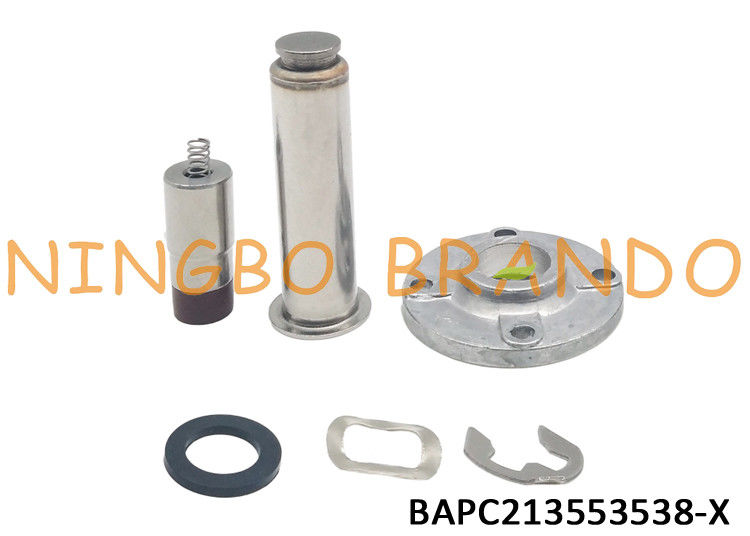

Material:

Plunger: stainless steel

Guide Tube: Stainless Steel 304

Spring; Stainless Steel 304

Rubber: NBR, HNBR, FKM, EPDM, Silicone, all available

Retaining round base: Aluminium

Clip: stainless steel



Application:

SBFEC Type New Version Solenoid Stem DMF Series Dust Collector Pulse Valve Armature Repair Kits FKM Seals 1



Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut can be provided if has demands.
