| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | G102 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Name: | K10200 K10201 K10203 Goyen Type Pulse Valve Diaphragm Repai Kits | Size: | For 4'' Pulse Valve |
|---|---|---|---|
| Material: | Nylon, Buna, FKM | Suitable Valve Number: | CA/RCA102MM |

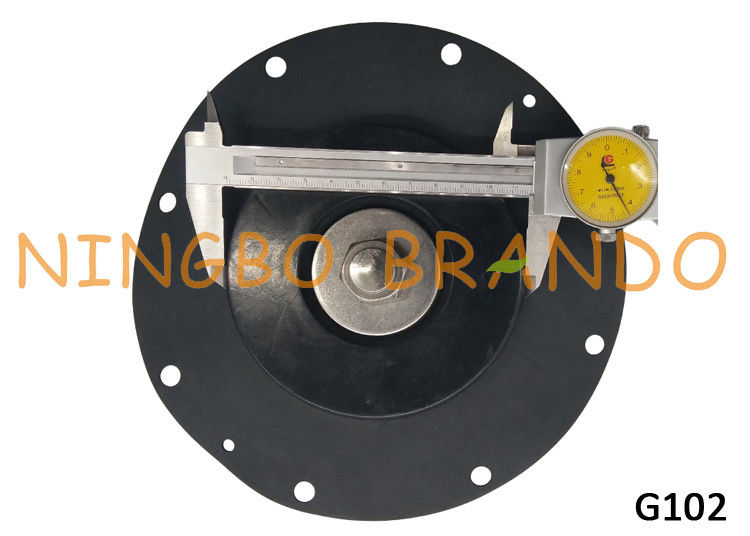

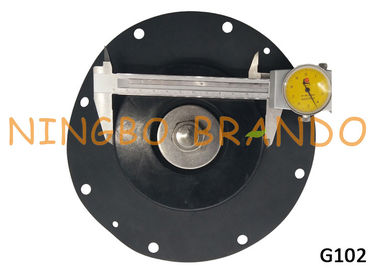

| Diaphragm Outer Distance: | 200mm | Center Distance: | 184.5mm |
| Sealing Gasket OD: | 116.5mm | Sealing Gasket ID: | 60mm |
| High Light: | Goyen Diaphragm,Goyen Pulse Valve Diaphragm,Goyen Diaphragm Repair Kit |
||

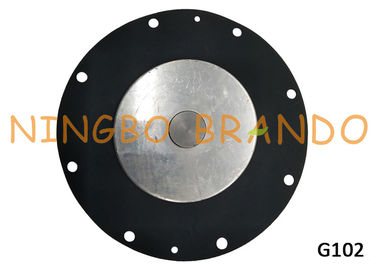

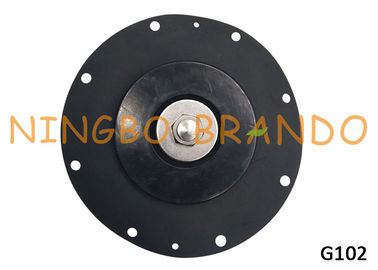

Goyen Type K10201 FKM K10200 Nylon K10203 Buna 4''Solenoid Valve Diaphragm Repair Kits For CA/RCA102MM Pulse Valve
K10200 K10201 K10203 is Goyen Type Pulse Valve Diaphragm Repai Kits. The diaphragm divides the electromagnetic pulse valve into the front and rear air Chambers. When the compressed air is connected to the rear air chamber through the throttle hole, the pressure in the rear air chamber will press the diaphragm tightly to the valve's output port and the electromagnetic pulse valve will be in the state of "closed". The electromagnetic pulse valve armature is reset when the electrical signal of the pulsed injection control instrument disappears. The vent hole of the rear air chamber is closed. The pressure of the rear air chamber increases, making the diaphragm close to the valve outlet.
We also have diaphragm valves, diaphragm repair kits, solenoids and control boards. If you have any questions, contant us.
Dimension:
Reference Number:
Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
