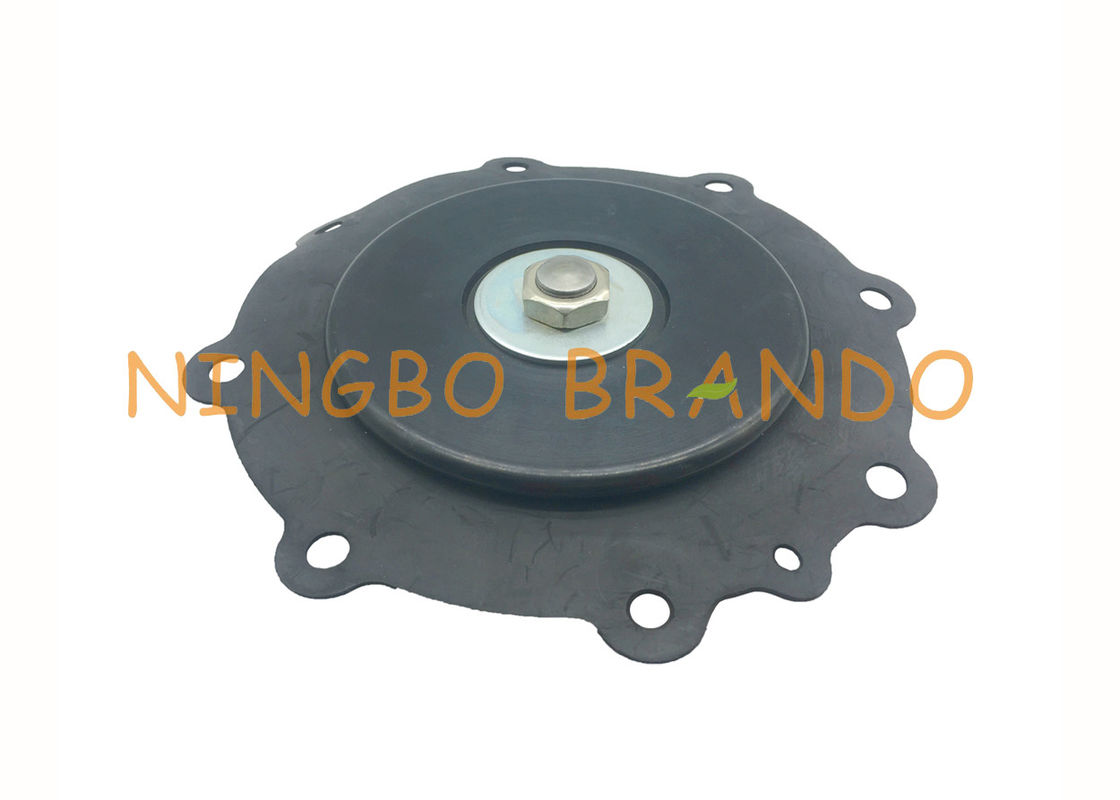

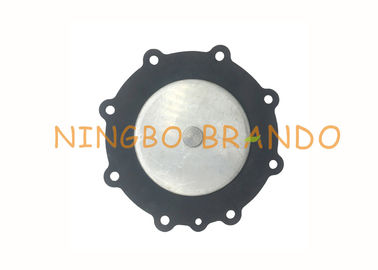

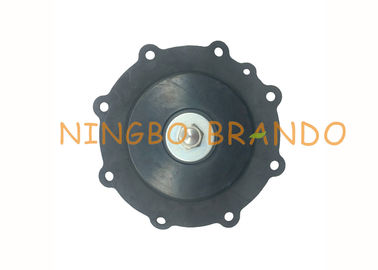

Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material

Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material

  • Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material
  • Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material
  • Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material
Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: J102
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Name: Diaphragm Repair Kit Suitable Valves: JISI 100A, JISR 100A, JIHI 100A, JIHR 100A
Diaphragm Material: NBR/Buna Mounting Hole Size: φ10mm
Diaphragm Outer Diameter: φ193mm Center Distance: φ193mm
Seat Material: NBR (Nitrile) Seat Outer Diameter: φ135.5mm
Seat Inner Diameter: φ58mm Bleed Hole: 1
Packaging: Individual Plastic Bag Sealed Size: 4 Inch
High Light:

Joil Diaphragm

,

Joil Pulse Valve Diaphragm

,

Joil Pulse Valve Repair Kit

Solenoid Replacement Diaphragm For 4'' JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material



Because the system of diaphragm pressure gauge (diaphragm pressure gauge) uses the filled sealing liquid as the medium to transmit pressure, the expansion number caused by the influence of temperature on the sealing liquid, the strength of diaphragm and the pressure part of diaphragm pressure gauge (diaphragm pressure gauge) are related to the temperature of medium, and the influence on the low range diaphragm pressure gauge (diaphragm pressure gauge) is more obvious. Generally, the temperature difference of pressure part shall not be more than 0.1% / ℃. Therefore, the accuracy of diaphragm pressure gauge (diaphragm pressure gauge) affected by temperature is the sum of diaphragm and spring tube. Because of the soft connecting pipe, the installation position of the pressure part and the pressure gauge is different, the liquid level difference will be produced, which also affects the accuracy of the diaphragm pressure gauge.



Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:



Ordering Code
Type
Quatity
Suitable valve
Material
J20
3/4''
1
JICI 20, JICR 20,
JISI 20, JISR 20
Nitrile/Buna
J25
1''
1
JICI 25, JICR 25,
JISI 25, JISR 25
J40 & JTY-X
1 1/2''
2
JICI 40, JICR 40,
JISI 40, JISR 40,
JIFI 40, JIFR 40
J50 & JTY-X
2''
2
JISI 50, JISR 50,
JIFI 50, JIFR 50
J76 & JTY-X
2 1/2''
2
JISI 65, JISR 65,
JIFI 65, JIFR 65
J89 & JTY-X
3''
2
JISI 80, JISR 80,
JIHI 80, JIHR 80
J102 & JTY-X
4''
2
JIHI 100, JIHR 100




Main dimension of JISI JISR JIFI JIFR Series NBR Diaphragm:

Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material 0



Details display of JISI JISR JIFI JIFR Series Valve Diaphragm:



Solenoid Replacement Diaphragm For 4" JISI 100A JISR 100A JIHI 100A JIHR 100A Repair Kits NBR Nitrile Buna Material 1


Tips: The related solenoid coils and armature assembly are all supplied.



YouTube Video of Diaphragm Repair Kit For Joil Valve:



Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.



2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.



3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.



4. Facbric-reinforced diaphragms advantages:
* No leakage  * No Lubrication  * No Breakaway Force  * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost  * Simple Design  * Versatility



5. EPDM, FKM all available.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
