Name: DB16/G DB120/C Pulse Valve Diaphragm For Mecair 2 1/2" VNP/VEM220 VNP/VEM420 VNP/VEM424
Brand: Brando
SKU: DB120
Rating: 5 (162 reviews)

Home Products Diaphragm Repair Kit

DB16/G DB120/C Pulse Valve Diaphragm For Mecair 2 1/2" VNP/VEM220 VNP/VEM420 VNP/VEM424

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	DB120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Plastic Bags, Cartons, Pallet
Delivery Time:	4-7 Days
Payment Terms:	L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Name:	DB120/C + DB16/G Diaphragm Repair Kit	Suitable Valve Port:	2 1/2''
Suitable Valves:	VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720	Diaphragm Material:	NBR (Buna)
Mounting Hole Size:	φ11mm	Diaphragm Outer Diameter:	φ170mm
Hole Center Distance:	φ170mm	Bleed Hole:	1
Number Of Diaphragms:	2	Packaging:	Individual Plastic Bag Sealed
High Light:	Mecair Diaphragm , Mecair Pulse Valve Diaphragm , Mecair Diaphragm Repair Kit

DB16/G + DB120/C Pulse Valve Diaphragm For Mecair 2 1/2" VNP/VEM220 VNP/VEM420 VNP/VEM424

To support your aftermarket efforts, Brando manufactures and stocks diaphragm repair kits to fit all standard pulse valve designs of the leading valve suppliers. All kits utilize premium Buna N or neoprene diaphragm material for maximum long life performance. We have wide rage of diaphragm repair kits to fit ASCO, Goyen, Mecair, Tae-Ha, Turbo, JOIL, Norgren, SBFEC and so on.

YouTube video of DB120/C + DB16/G Diaphragm For 2.5'' Mecair Pulse Valve:

Main dimension of NBR Diaphragm Repair Kit For VEM VNP Pulse Valve:

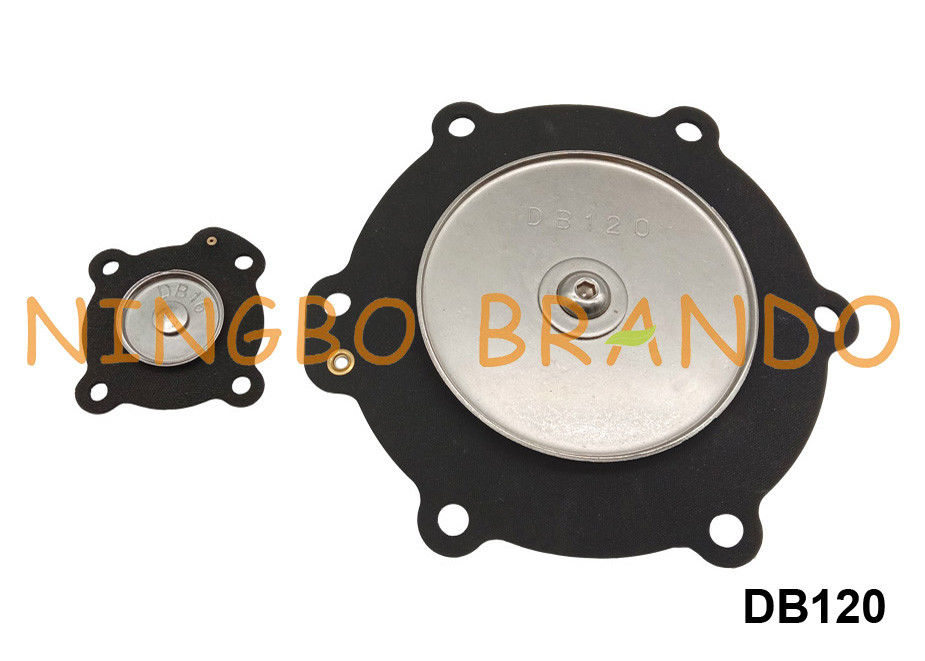

DB16/G DB120/C Pulse Valve Diaphragm For Mecair 2 1/2" VNP/VEM220 VNP/VEM420 VNP/VEM424 0

Details display of Mecair VEM/VNP Diaphragm Pulse Valve Repair Kit:

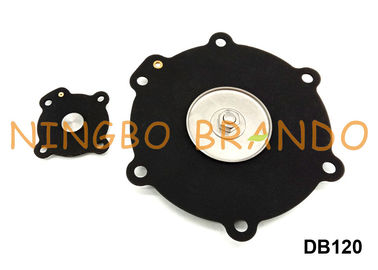

DB16/G DB120/C Pulse Valve Diaphragm For Mecair 2 1/2" VNP/VEM220 VNP/VEM420 VNP/VEM424 1

Available Models of Diaphragm Repair Kits For Mecair VNP/VEM Pulse Valves:

Ordering code	Fitted valve code	Valve port size	Material
DB16	VNP206, VEM206, VNP306, VEM306	3/4''	Nitrile/Buna
DB18	VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708	1''	Nitrile/Buna
DB112	VNP212, VEM212, VNP312, VEM312, VNP412, VEM412	1-1/2''	Nitrile/Buna
DB114	VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714	1-1/2''	Nitrile/Buna
DB116	VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716	2''	Nitrile/Buna
DB120	VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720	2-1/2''	Nitrile/Buna
Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s). The most popular kits are shown above. If you don't see the kit you need, pls don't hesitate to contact us.

Tips: The related solenoid coils and armature assembly are all supplied.

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, FKM all available.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
