Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector

Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector

    • Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector
    • Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector
    • Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector
  • Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: ATY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, , Western Union,
    Supply Ability: 100000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Material: Buna/Nylon Suitable Valve Number: SCG353A050, SCG353A051 Scxe353.060
    Sealing Gasket: Without Spring: With
    Packaging: Individual Sealed Color: Black
    Application: Industry

    Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna/Nylon SCG Repair Kits For Industry Dust Collector



    Product Description



    Diaphragm Features:

    1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. 2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity. 3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength. 4. Facbric-reinforced diaphragms advantages: *No leakage *No Lubrication * No Breakaway Force * No Friction * Functionality Over Wide Pressure Ranges * High Strength * Low Cost * Simple Design * Versatility 5. EPDM, FKM all available.



    Our valve & repair kits have a warranty against failure and defects, so you can ensure that your kits will work well or we will replace them.
    When you buy from us, you get a product that is warranted against any defects and damages. We ensure that your replacement valve works well; if not, we will replace it.
    We supply repair kits that will fit most dust collector valve manufacturers' valves. These alternative repair kits are In STOCK and can ship the same day before 4:00 PM PST. Our valve repair kits have a warranty against failure and defects, so you can ensure that your kits will work well or we will replace them.
    Our high-temperature kits are made of Viton, and you can special order silicone for kits needing to reach temperatures above 500 F. The corrosive resistant kits are made of buna material and seat well during fly ash and other corrosive applications. The normal kits come in nylon and seat softer for a longer-lasting cycle life during cleaning.



    Deference number:

    ordering code fitted valve code valve port size material
    C113443 G353A041, G353A042 3/4'', 1'' TPU/NBR
    C113444 SCG353A043, SCG353A044, SCG353-052, SCG353-053 3/4'', 1''
    C113825 G353A045 1 1/2'' NBR
    C113826 G353A046 1 1/2''
    C113827 SCG353A047, SCG353A065 1 1/2''
    C113685 SCG353A050, SCG353A051 2'', 2-1/2''
    C113686
    C113928 SCEX353.060 3''
    C123432 SCG353D060, G353.060
    C123433
    K096875 (K238864) 8353C033 3/4''
    K200262 (K238866) G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053 1''
    K276886 (K238870) G353A045, G353A046, SCG353A047, SCG353A065 1 1/2''
    K276886B
    K276887 FKM

    tips:EPDM, FKM all available.



    Dimension Diagram:

    Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector

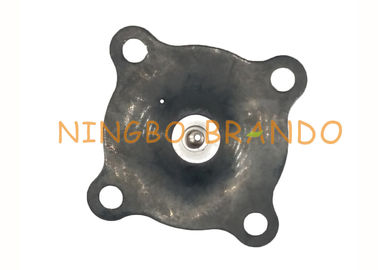

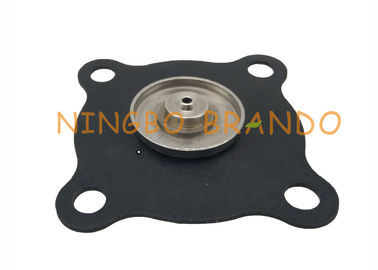

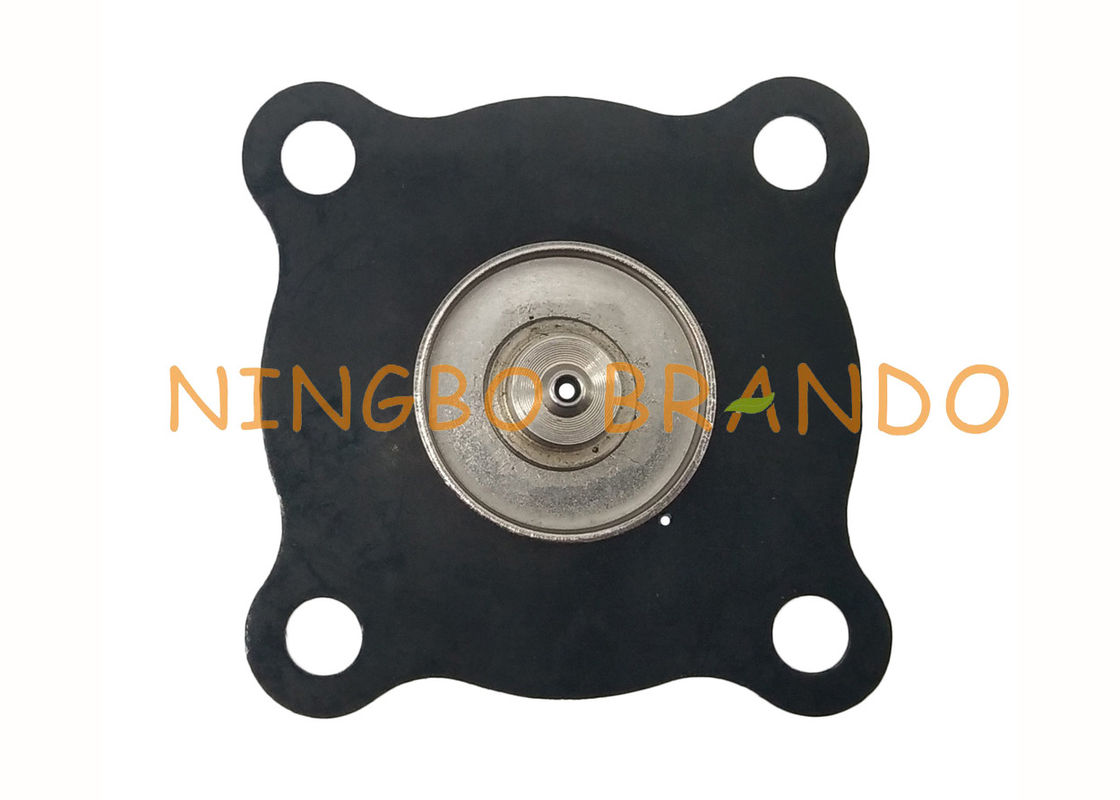

    Detailed Images:



    Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector



    Youtube video of diaphragm videos:







    Our Production:

    Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector

    Packing&shipping

    Pulse Valve Small Diaphragm SCG353A050/51 scxe353.060 Buna / Nylon SCG Repair Kits For Industry Dust Collector



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
