K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM

K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM

    • K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM
    • K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM
    • K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM
    • K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM
  • K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BAPC212050501

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: Negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7
    Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
    Supply Ability: 200000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: K0380 M1131B Goyen Type Solenoid Valve Repair Kit Guide Tube Outer Diameter: 11.9mm
    Installation Height For Coil Assembling: 48.6mm Plunger Seal For Orifice Diameter: 8.6mm
    Guide Tube Material: Stainless Steel Seal Material: NBR (Common), VITON (Available)
    Position & Way: 2/2 Way Non-working Status: Normally Closed
    Shading Ring Material: Copper Application: RCA3D2, RCA3DS, RCA3DM Pilot Valve

    K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM

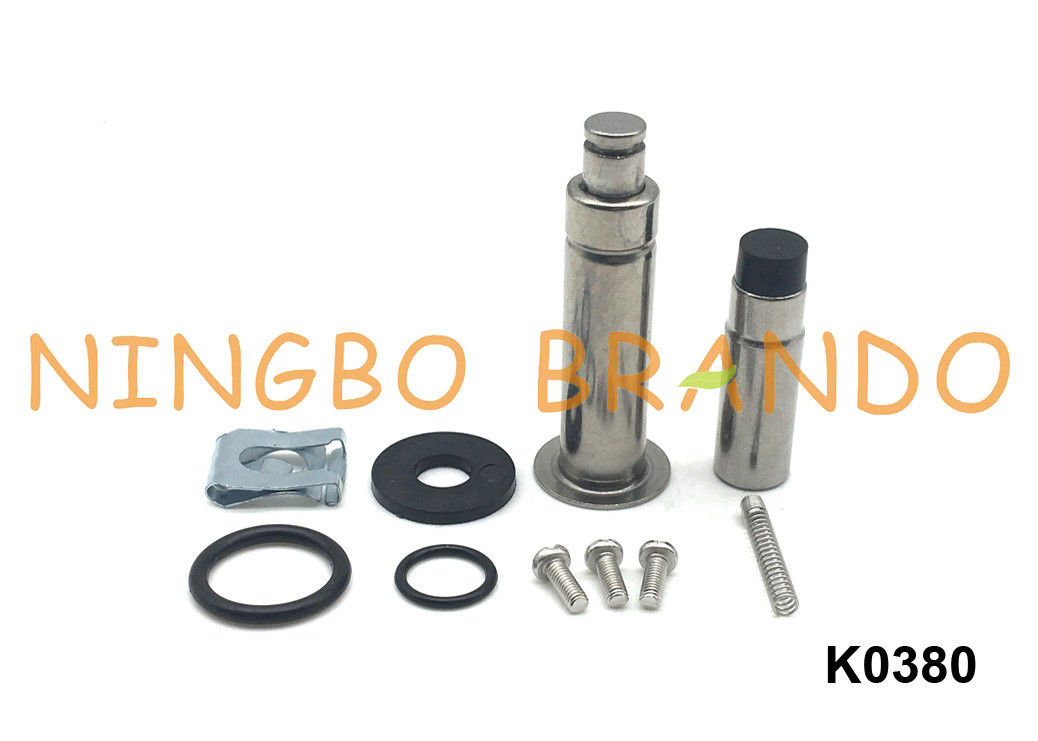

    Replacement for Goyen K0380 (M1131B) repair kit is made for the 3D2 solenoid valves and comes with an armature, small spring, clip, o ring, and three screws. Brando has more than 10 years experiences in manufacturing and exporting solenoid valves, armature assembly and solenoid coils. The RCA3D2 solenoid valve mentioned are also supplied.



    YouTube video of K0380 M1131B Goyen Type Solenoid Valve Rebuild Kit:



    Main dimension of K0380 M1131B Goyen Type Solenoid Valve Repair Kit:

    K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM



    Product details of K0380 M1131B Goyen Type RCA3D Valve Solenoid Kit:

    K0380 M1131B K0384 M1141B Goyen Type Solenoid Valve Repair Kit For RCA3D2 RCA3DS RCA3DM



    Technical data of K0380 M1131B Solenoid Pilot Operator Repair Kit:

    Model Number
    BAPC212050501
    Guide Tube Outer Diameter
    11.9mm
    Installation Height for Coil Assembling
    48.6mm
    Plunger Seal for Orifice Diameter
    8.6mm
    Guide Tube Material
    Stainless Steel
    Seal Material
    NBR, HNBR, FKM, EPDM, Silicone, all available
    Connection Type
    Flange
    Voltage
    All range of AC and DC available
    Position and Way
    2/2 Way
    Non-working Status
    Normally Closed
    Application Examples
    Goyen Type 3D Pilot Solenoid Valve

    Tips: We also supply related Pulse Controller, Diaphragm and Solenoid Coil.



    Factory Production of Solenoid Valve Repair Kit Armature Assembly:



    We stock brand name dust collector diaphragm and solenoid repair kits including the following: Goyen, Asco, Taeha, Turbo, Mecair, Norgren, and so on. Also known as rebuild kits, diaphragm repair kits can return your diaphragm valve back to peak performance. We stock a huge selection of Buna, Nylon, Hytril, and Viton repair kits and can help you find solutions for rush orders.



    Product Features:


    1. Fixed core and movable core (plunger):
    Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



    2. Guide tube (plunger tube):
    * Options of brass and stainless steel, grade of H62 or SUS304;
    * Wall thickness from range of 0.25~2.5mm, others could be customized;
    * Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



    3. Spring:
    Rustproof SUS304 stainless steel, with good performance of restore.



    4. Seals:
    Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



    5 Shading ring:
    Cooper and silver material available.



    6. Washer and retaining nut provided if has demands.
