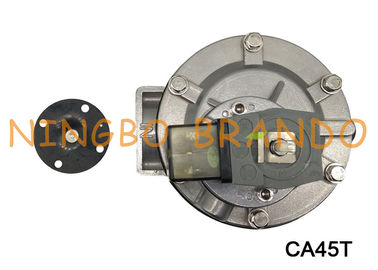

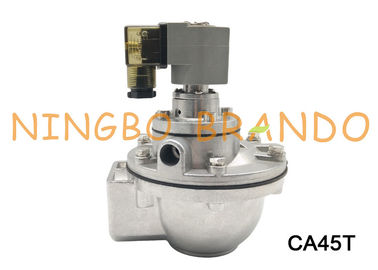

CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System

CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System

    • CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System
    • CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System
    • CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System
    • CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System
  • CA45T Right Angle 1-1/2" Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: ISO、CE
    Model Number: CA45T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: G1-1/2 Inch Number Of Diaphragm: 2
    Function: 2/2 Way, Normally Closed Power: Solenoid
    Working Medium: Air Application: Dust Collector
    Body Material: Diecasting Aluminum Alloy Diaphragm Material: Nitrile

    CA45T Right Angle 1-1/2'' Pneumtic Pulse Valve With Aluminum Alloy Body For Dust Cleaning System



    T Series Threaded Right Angle with aluminum alloy bdoy is one kind of Goyen type Electromagnetic Pulse Valves. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet. Used Widely in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



    Technical Data of CA45T double diaphrgam pulse valve:

    Model No. CA45T
    Number of Diaphragm 2
    Connection Type  Threaded
    Port Size  G1-1/2 Inch
    Working Pressure  0.3~0.8Mpa
    Medium  Air
    Action Type  Pilot Operated
    Temperature Range -5℃ - 55℃
    Relative humidity ≤85%
    Voltage DC24V, AC24V, AC110V, AC220V



    Demension of CA45T Dust Collector Solenoid Pulse Valve:

    Demension of CA45T Dust Collector Solenoid Pulse Valve:



    Deconstruction of CA45T :

    Deconstruction of CA45T



    Part Name  Material
    Main Body  Diecasting Aluminum Alloy
    Diaphragm Material  NBR (common , all available )
    Seal Material  NBR (common , all available )
    Armature (Spring ) Stainless Steel
    Solenoid Coil  Copper

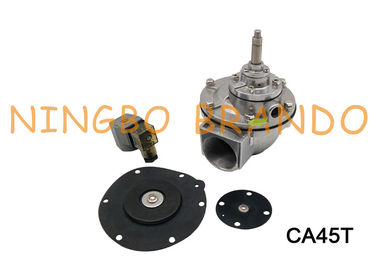

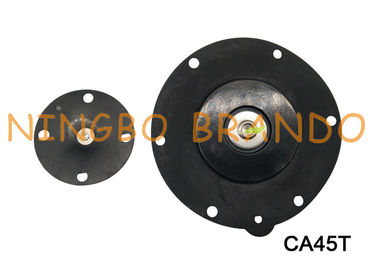

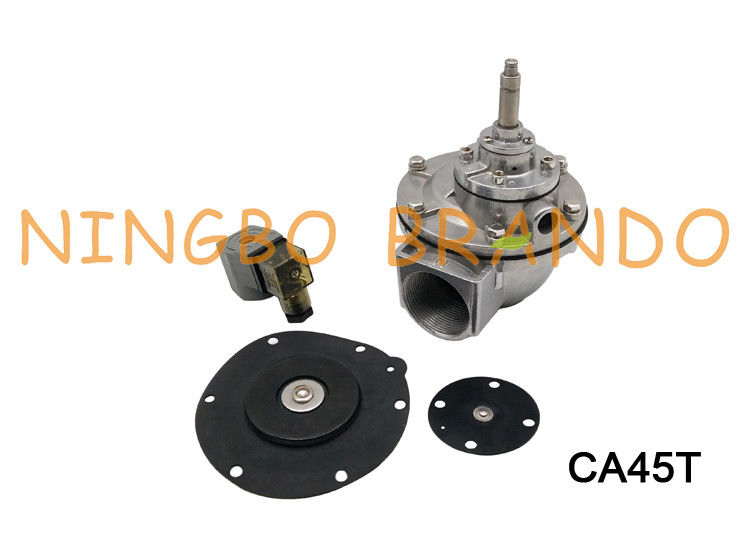

    Maintenance Kits of CA45T:

      Nitrile  Viton  low temp –60°C (–76°F) MIN
    main and secondary diaphragms K4502 K4503 K4522
    Pilot repair kit  K0380 K0384 NA





    How to choose a pulse valve correctly:

    1. According of Port size ,choose the match pulse valve . Goyen Type T series also have G1/2'', G3/4'', G1'', G1-1/4'', G1-1/2'', G2'', G2-1/2'', G3'' Port size diaphragm valve.

    2. According of power supply , Choose AC or DC solenoid pulse valve. AC220V and DC24V are preferred for voltage specifications.

    3. Waterproof solenoid valve should be selected in the environment with high relative humidity and water drops and rain.

    4. For use in corrosive or explosive environments, it is preferred to choose corrosion resistance according to safety requirements.

    5. If the environmental space is limited, please use a multi-function solenoid valve, because it bypasses the bypass and three manual valves and is convenient for online maintenance.

    6.The rated current and power consumption should be selected according to the power supply capacity. It should be noted that the VA value is higher at the time of AC starting, and the indirect pilot solenoid valve should be preferentially selected when the capacity is insufficient.



    Focus on your demands, Offer you best solution:
    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change

    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
