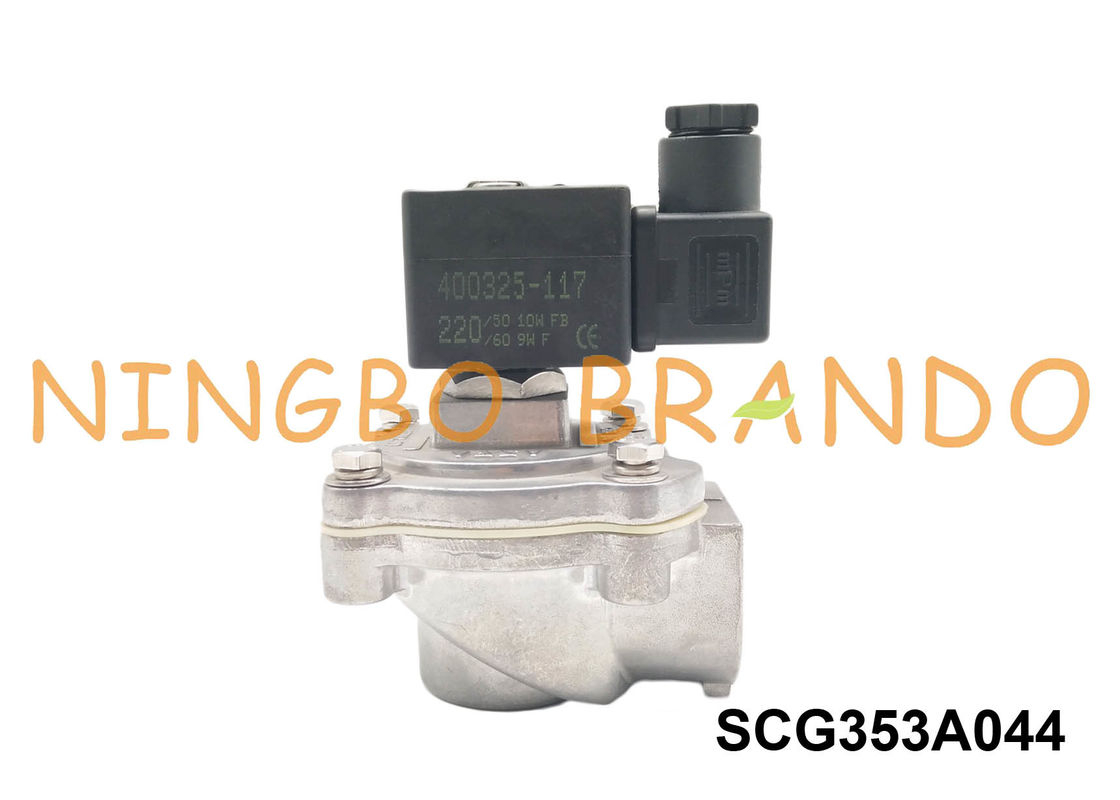

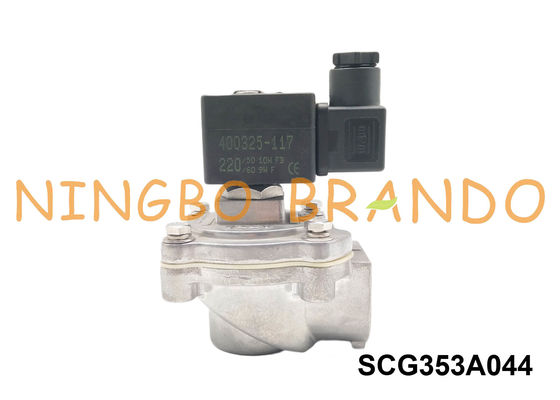

1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V

1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V

    • 1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V
    • 1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V
    • 1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V
    • 1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V
  • 1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: SCG353A044

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: SCG353A044 ASCO Type Pulse Valve Port Size: 1''
    Connection: Female Thread Remote Or Integral: Integral Pilot
    Body Material: Aluminum Diecast Membrane Material: TPU (Common), NBR (Available)
    Pressure: 0.3MPa To 0.8MPa Temperature Of Media: -5℃ To +55℃
    Valve Type: Right Angle Voltages: AC24V, AC110V, AC220V, DC24V, DC12V

    1'' SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V



    Main Features of ASCO Type 353Series Pulse Valves:

    1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
    2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications.
    3. The design with integral compression fittings will facilitate installation because there is no need for threaded piping.
    4. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions.
    5. Integral pilot operated valves satisfy all relevant EC directives.



    YouTube video of SCG353A044 Integral Pilot Operated Solenoid Valve:


    Main dimension of SCG353A044 G1'' Dust Collector Pulse Jet Valve:

    1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V

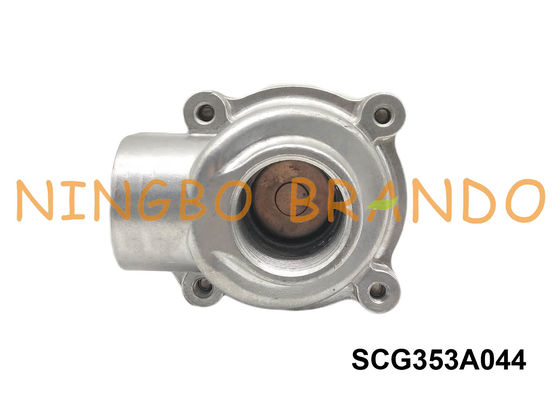

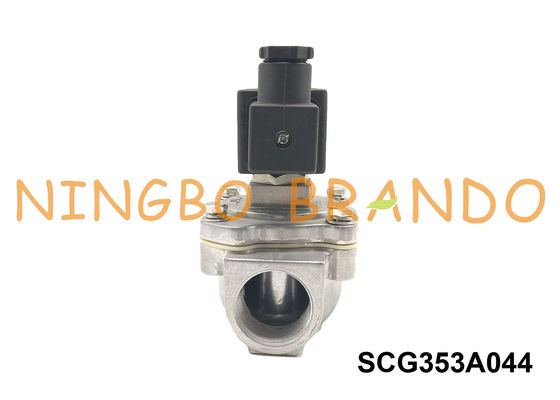

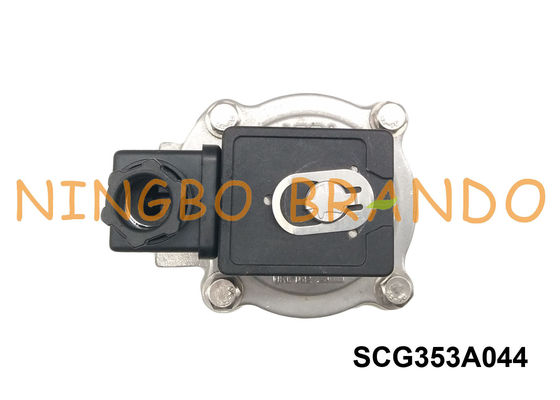

    Details of SCG353A044 ASCO Replacement Dust Collector Pulse Valve:

    1" SCG353A044 ASCO Type Dust Collector Pulse Valve With Integral Pilot Solenoid AC110V AC220V



    Technical parameters of 353 Series ASCO Type Diaphragm Pulse Valves:

    Model No
    SCG353A043
    SCG353A044
    SCG353A047
    SCG353A050
    SCG353A051
    Port Size
    G3/4''
    G1''
    G1-1/2''
    G2''
    G2-1/2''
    Nominal Size
    φ20mm
    φ25mm
    φ40mm
    φ50mm
    φ62mm
    Working Pressure
    0.3 to 0.8MPa
    Environment Temperature
    -5 to +55℃
    Relative Humidity
    ≤85%
    Operating Medium
    Dry clean compressed air
    Service Life
    Over one million times
    Voltages
    AC24V, AC110V, AC220V, DC24V



    Product Advantages:


    1. Ready for use in any dust collector design
    *For noxious substance control and environmental dust management



    2. Cost savings
    *Increased pulse efficiency, reduced energy consumption
    *Durable materials and wide temperature range enhance lifespan
    *Longer filter life, lower dust collector OPEX



    3. Compliance
    *With environmental and health & safety regulations



    4. Ease of installation
    *No welding required with 90° connections directly onto squaretanks
    *Camlock adapter available for attachment to round tanks
