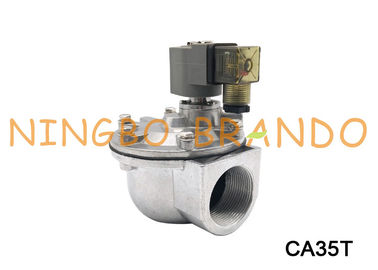

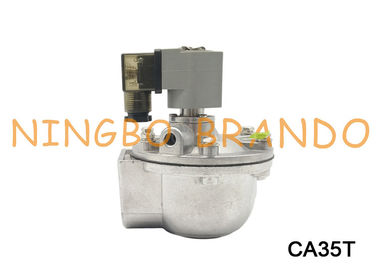

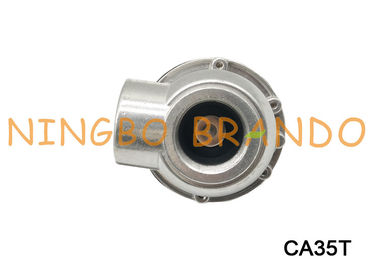

G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters

G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters

    • G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters
    • G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters
    • G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters
    • G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters
  • G1-1/4" Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: CA35T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: G1-1/4 Inch Nornimal Size(mm): 35
    Application: Dust Collector Power: Solenoid
    Structure: Diaphragm Body Material: Aluminum Alloy
    Seal Material: NBR (common) ,all Available Voltage: AC24V, AC110V, AC220V, DC24V

    G1-1/4'' Right Angle Dust Collector Solenoid Valve For Industrial Dust Collectors Bag Filters



    The electromagnetic pulse valve controls the opening and closing of the valve body unloading hole according to the electric signal. When the valve body is unloaded, the pressure gas in the cavity behind the valve is discharged, and the pressure gas in the cavity before the valve is throttled by the female pressure hole in the diaphragm, the diaphragm is lifted, and the pulse valve is blown. When the valve body stops unloading, pressurized gas quickly fills the back cavity of the valve through the damping hole. Due to the difference in the area of force on the valve body on both sides of the diaphragm, the gas in the back cavity of the valve has a large force and the diaphragm can be closed reliably The injection port of the valve, the pulse valve stops blowing.

    The moment the pulse valve is opened, a strong impulse air flow is generated, so that the bag can be blown instantly.



    Specification of CA35T Pneumatic Pulse Valve:

    Model No. CA35T
    Port Size  G1-1/4''
    Action Type Pilot Operated
    Valve Type  Right Angle
    Number of Diaphragm 1
    Connection Type  Threaded
    Working Medium  Air
    Temperature  -5℃ - 55℃
    Pressure  0.3~0.8Mpa
    Voltage  AC24V, AC110V, AC220V, DC24V



    Dimension of CA35T Goyen Type Solenoid Air Control Valve:

    Dimension of CA35T Goyen Type Solenoid Air Control Valve:

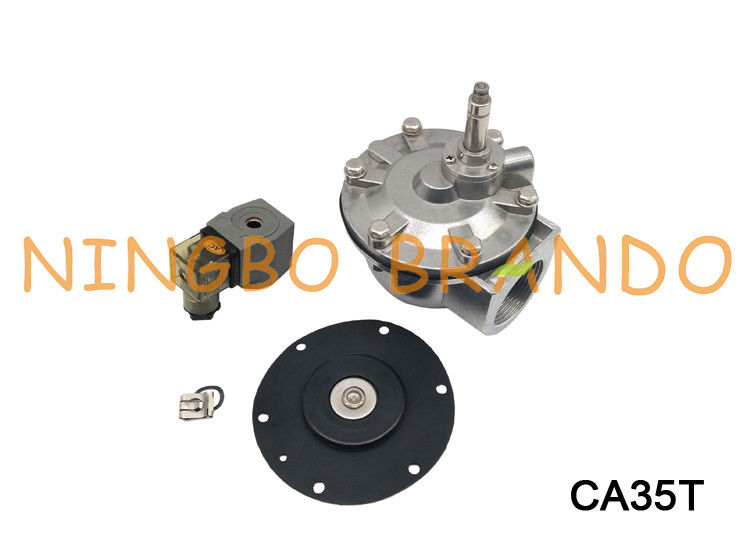

    Deconstruction Of CA35T Electromgnetic Diaphragm Pulse Valve:

    Deconstruction Of CA35T Electromgnetic Diaphragm Pulse Valve:

    Part Name  Material
    Solenoid Coil  Copper Wire
    Armature Assembly  Stainless Steel
    Spring  Stainless Steel
    Seals & Diaphragm  NBR (common, all available)
    Main Body  Aluminum Alloy (Die-casting)



    Why Choose Us:



    1.Our Service purposes is Focus on your demands, Offer you best solution.



    1). Located in a seaside city Ningbo, Well-developed transportation.



    2). We work on designing and manufacturing solenoid coil, solenoid operator and solenoid valve for more than 10 years.



    3). We are dedicated to providing high quality products and service to our customers.



    4). We also provide customized services.

    Contact us if some points you have doubt
    Contact us if somewhere need to change
    Contact us if not the one you are looking for
    Contact us if you are doing designing



    2.High quality products



    1). Ready for use in any dust collector design

    Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



    2).2. Cost savings
    a. Increased pulse efficiency, reduced energy consumption
    b. Durable materials and wide temperature range enhance lifespan
    c. Longer filter life, lower dust collector OPEX



    3). Compliance
    With environmental and health & safety regulations



    4). Ease of installation
    a. No welding required with 90° connections directly onto squaretanks
    b. Camlock adapter available for attachment to round tanks
