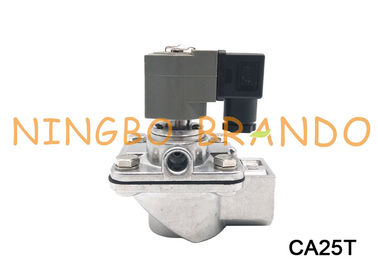

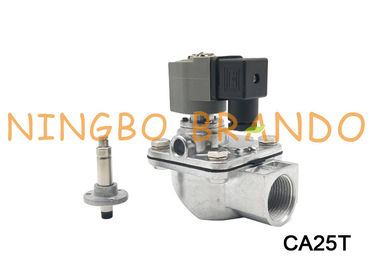

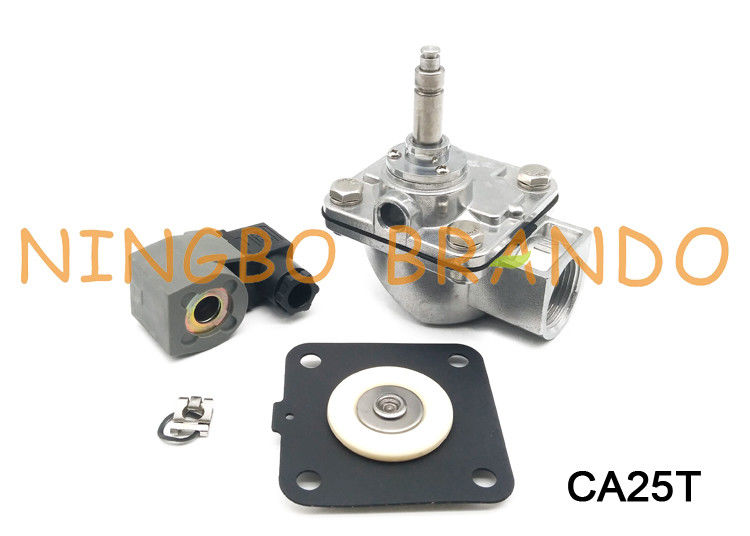

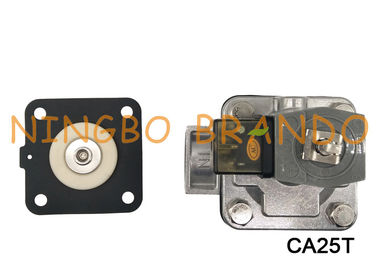

CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection

CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection

    • CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection
    • CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection
    • CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection
    • CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection
  • CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve For Dust Collector Threaded Connection

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: CA25T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 1'' Media: Air
    Application: Dust Collector Power: Solenoid
    Structure: Diaphragm Connection Type: Threaded
    Valve Type: Right Angle Pressure: 0.3~0.8Mpa

    CA25T G1 Inch Right Angle Electromagnetic Pulse Jet Valve for Dust Collector Threaded Connection



    Goyen Type T Series Pulse jet valve is widely used in dust collector applications, in particular for reverse pulse jet filter cleaning includng bag filter . Pulse Valve Consist of solenoid coil , armature , diaphragm , seals,spring and die-casting aluminum alloy valve body. The moment the pulse valve is opened, a strong impulse air flow is generated, thereby achieving instantaneous blowing.
    According to the electric signal , the pulse valve controls the opening and closing.
    Threaded Connection install easily.
    We also have three types, right angle type with dresser nut DD & manifold mount type MM & Flanged type FS, with different connection form.



    Overall Diemension of CA25T Dust Collector Solenoid Pulse Valve:

    Overall Diemension of CA25T Dust Collector Solenoid Pulse Valve:

    Technical Data of Goyen Type T Series Diaphragm Valve:

    Model No. CA25T
    Port Size  G1 Inch
    Nornimal Diameter(mm) Φ25mm
    Working Pressure  0.3~0.8Mpa
    Number of Diaphragm  1
    Working Medium  Air
    Temperature  -5℃ ~ 55℃
    Relative humidity <=85%
    Protection class  IP 65
    Voltage AC220V, AC110V, DC24V



    Goyen Type 'T' Series Pusle Jet Valve Technical Data:

    Model No. CA15T CA20T CA25T CA35T CA45T CA50T CA62T CA76T
    Nonimal Size(mm) Φ15 Φ20 Φ25 Φ35 Φ45 Φ50 Φ62 Φ76
    Port Size  G1/2'' G3/4'' G1'' G1-1/4'' G1-1/2'' G2'' G2-1/2'' G3''
    Working Pressure  0.3~0.8Mpa
    TEMP -5℃-55℃
    Relative Humidity <=85%
    Protection Class  IP65
    Service Life  Over one million

    Deconstruction Diagram of CA25T Right Angle Pneumatic Pulse Valve:



    Deconstruction Diagram of CA25T Right Angle Pneumatic Pulse Valve:

    Part Name  Material
    Valve Body

    Aluminum (Diecast)

    Diaphragm &seals NBR(common), all available
    Spring  304 Stainless Steel
    Armature Stainless Steel
    Solenoid Coil  Copper Wire



    How To Choose Pulse Jet Valve :

    1. According of Port size ,choose the match pulse valve .
    2. According of power supply , Choose AC or DC solenoid pulse valve.
    3. For use in corrosive or explosive environments, it is preferred to choose corrosion resistance according to safety requirements.
    4. Waterproof solenoid valve should be selected in the environment with high relative humidity and water drops and rain.

    5.Tell us your needs, provide customized services
