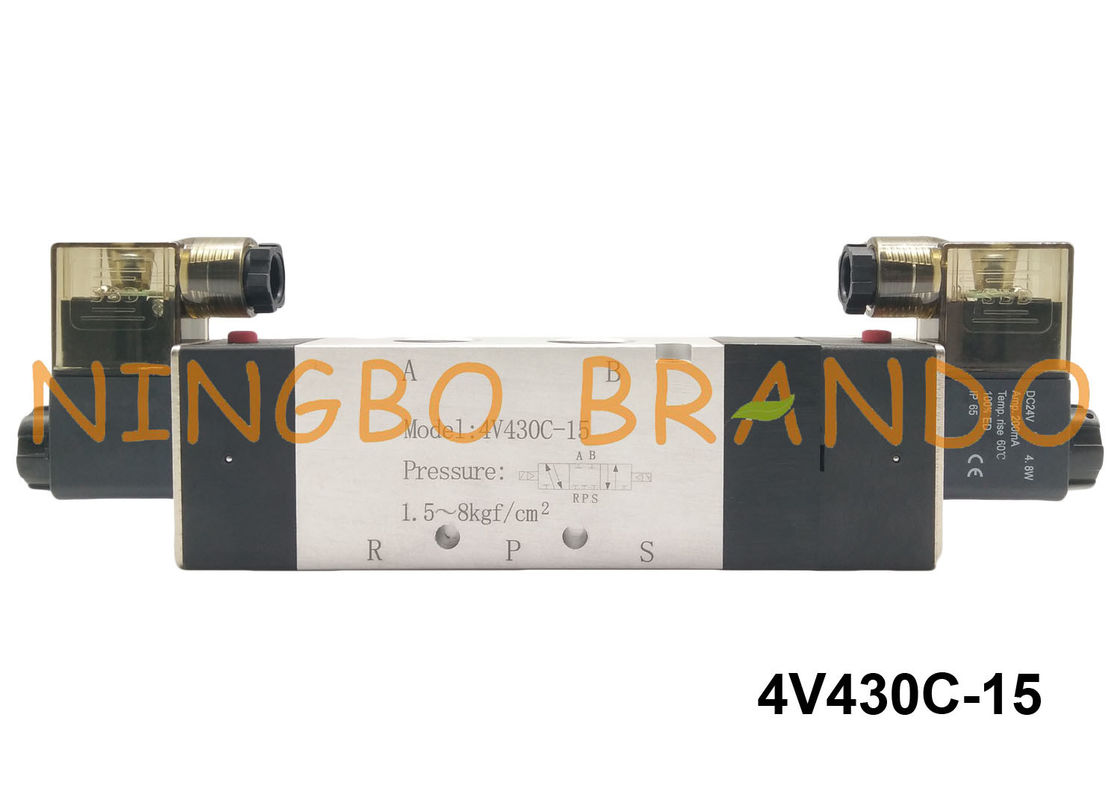

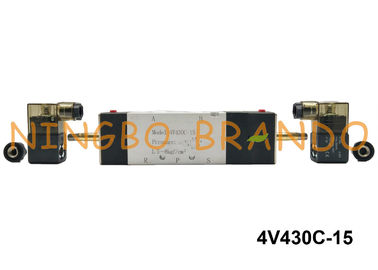

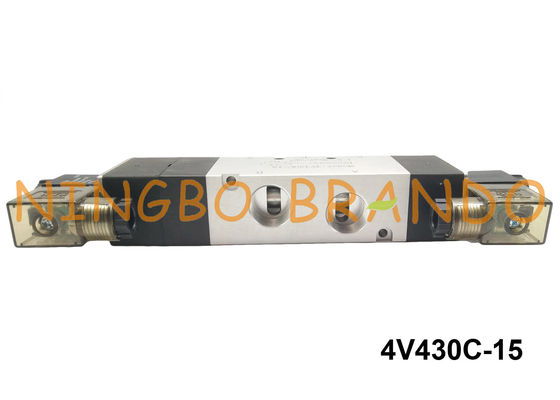

PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V

PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V

    • PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V
    • PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V
    • PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V
    • PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V
  • PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 4V430C-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: $4 to $15 per pc
    Packaging Details: Inner box, Carton, Pallet
    Delivery Time: 5-7 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 4V430C-15 Airtac Type Solenoid Valve Port Size: Inlet=Outlet=Exhaust=1/2''
    Pipe Connection Type: G, PT, NPT, BSP, BSPT Valve Type: Double Head, Close Center
    Position & Way Number: 3 Position 5 Way Valve Body: Aluminum Alloy
    Seals: NBR(Nitrile) Supply Voltages: DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
    Working Pressure Range: 1.5-8Bar Working Temperature Range: 5-50°C

    PT 1/2'' 4V430C-15 AirTac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V



    A solenoid valve is an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.

    Brando’s pneumatic solenoid valves are a cost effective, space saving solution for the use of single or multiple valves. Our versatile offering features a variety of voltage, wattage, connector, and mounting options to make the selection and installation of your solenoid valves fast and easy. Quick response times and high flow rates make our pneumatic solenoid valves suitable for numerous applications.



    YouTube video of 4V430C-15 AirTAC Type 5/3 Way Pneumatic Solenoid Valve:



    Overall dimension of 4V430C-15 AirTac Type Directional Control Solenoid Valve:

    PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V



    Details display of 4V430C-15 Airtac Type Air Control Solenoid Valves:

    PT 1/2" 4V430C-15 Airtac Type Close Center Reverse Solenoid Valve 5/3 Way AC110V AC220V



    Specifications of 4V400 Series AirTAC Type Pneumatic Solenoid Valves:

    Model
    4V410-15
    4V420-15
    4V430C-15
    4V430E-15
    4V430P-15
    Fluid
    Air(to be filtered by 40 μ m filter element)
    Acting
    Internal pilot or external pilot
    Port Size
    In=Out=Exhaust=1/2''
    Orifice Size
    50.00 mm² (Cv=2.79)
    30.00 mm² (Cv=1.68)
    Valve Type
    5 way 2 position
    5 way 3 position
    Operating Pressure
    0.15~0.8MPa (21~114psi)
    Proof
    1.5MPa (215psi)
    Temperature ℃
    -20 to 70
    Material of Body
    Aluminum alloy
    Max. frequency
    3cycle/sec





    Brando Factory Production of 4V Series Airtac Type Pneumatic Solenoid Valves:



    Valve types introduction:
    Directional valves are appointed with two numbers. The first number shows how many ports the valve has, and the second number the amount of states. For example, a 2/2-way valve has two ports (in/out) and two states (open/closed). A 5/2-way valve has five ports and two states. Directional valves usually have two, three or five ports. In the following sections, the different types will be explained in more detail.



    *2/2-way valve
    *3/2-way valve
    *5/2-way valve
    *5/3-way valve



    5/3 way valve:
    The 5/2, 3/2 & 2/2 valves all have two states. It is also possible to have a third state, for example a 5/3-way solenoid valve. The third state is used to stop a double acting cylinder in an intermediate position. These valves are mono stable and return to the centre position when the solenoids are not energized. Two solenoids are used two switch the valve to the other two states. 5/3 valves are available in three variants; with closed centre position, with venting centre position and with pressurized centre position.



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
