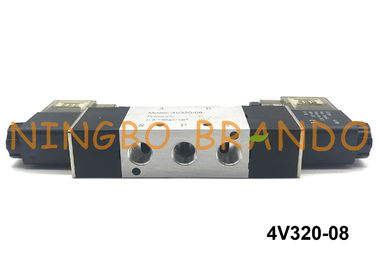

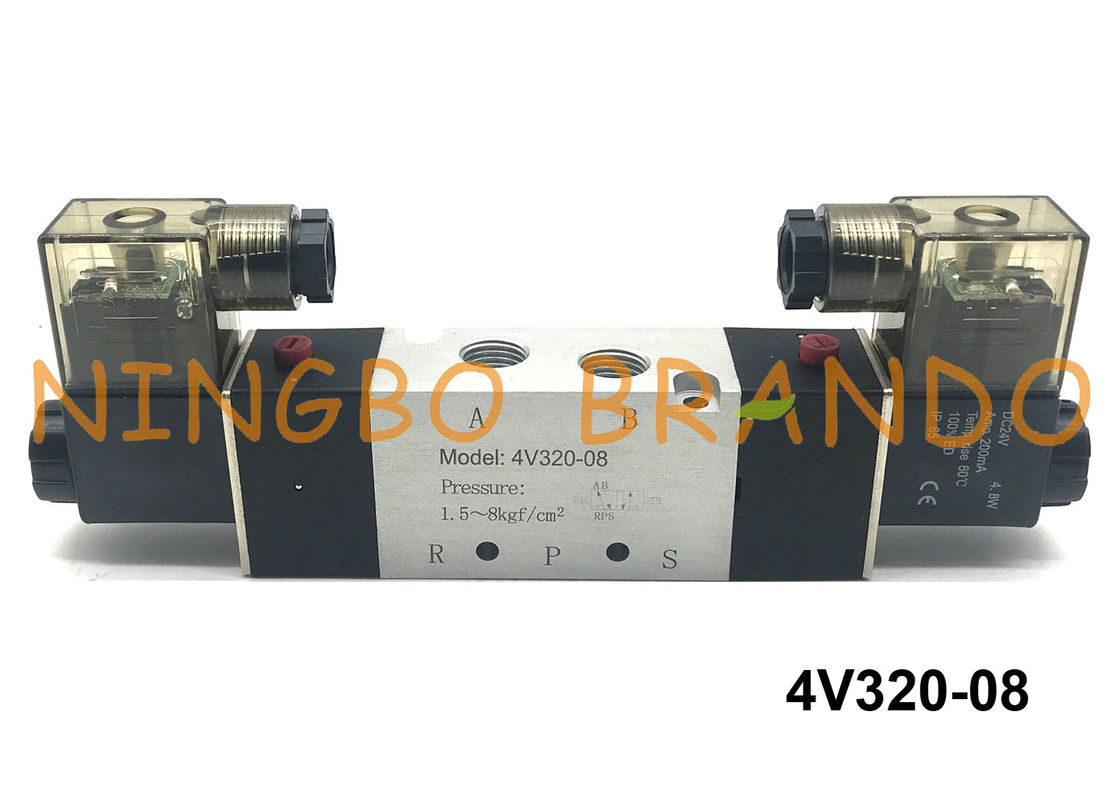

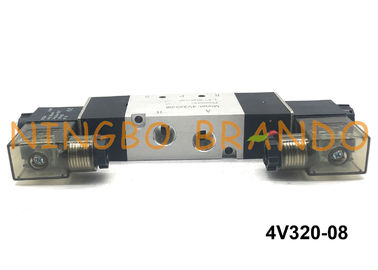

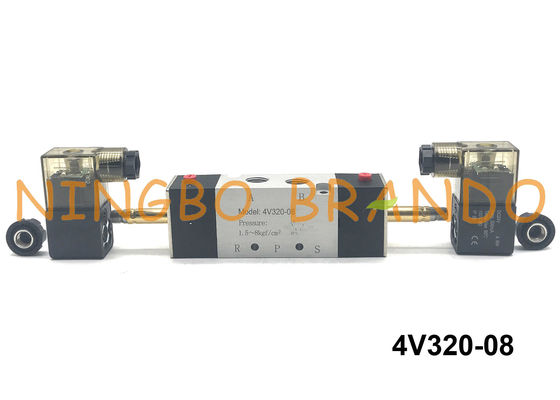

4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V

4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V

  • 4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V
  • 4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V
  • 4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V
  • 4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V
4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V320-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: 4V320-08 AirTAC Type Pneumatic Solenoid Valve Pipe Size: In=Out=Exhaust=1/4''
Thread Type: G, NPT, PT, BSPT Colors: Black, Silver Tone
Valve Type: Double Solenoid, 5 Way 2 Position Seal Material: NBR
Body Material: Aluminum Alloy Voltages: AC220V, AC110V, DC24V, Or DC12V
Operating Pressure: 0.15-0.8MPa (21-114psi) Operating Temperature: 5-50℃
High Light:

Airtac Solenoid Valve

,

5/2 Way Pneumatic Solenoid Valve

,

5 Way 2 Position Pneumatic Solenoid Valve

4V320-08 1/4'' BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V



4V series AirTAC type pneumatic solenoid valve for air, two or three positions, five-way-5/2 (3) -way, double solenoid valve, can be used for voltage DC 12V, DC 24V, AC 110V and AC 220 Volt, Pilot Valve-Operating Mode, Port Size M5 × 0.8, Rc 1/8 ", 1/4", 3/8 "for your choice, fast and safe opening / closing. High reliability and low price. 4V Series AirTAC type solenoid valve is used as a directional control component to change the direction of the working medium to drive the actuator assembly, usually through a cylinder to achieve cyclic movement.



YouTube video of 4V320-08 AirTAC Type 5/2 Way Pneumatic Solenoid Valve:



Main dimension of 4V320-08 G1/4'' Directional Control Solenoid Air Valve:

4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V 0



Details enlargement of 4V320-08 Double Solenoid Air Control Solenoid Valve:

4V320-08 1/4" BSPT AirTAC Type Pneumatic Solenoid Valve 5/2 Way Directional Control DC24V 1



Specifications of 4V300 Series AirTAC Type Electric Control Solenoid Valves:

Model
4V310-08
4V320-08
4V330C-08
4V330E-08
4V330P-08
4V310-10
4V320-10
4V330C-10
4V330E-10
4V330P-10
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/4''
In=Out=3/8'' Exhaust=1/4''
Orifice Size
25.00 mm2 (Cv=1.40)
18.00 mm2 (Cv=1.00)
30.00 mm2 (Cv=1.68)
18.00 mm2 (Cv=1.00)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa(21~114psi)
Proof Pressure
1.5MPa(215psi)
Working Temperature
5~50
Material of Body
Aluminum alloy
Max. frequency
4 cycle/sec
4 cycle/sec
4 cycle/sec
4 cycle/sec



Factory production of 4V Series AirTAC Type Pneumatic Solenoid Valves:



Working principle of pneumatic solenoid valve:

The solenoid valve is often used to control hydraulic cylinder or pneumatic cylinder. One of the working holes of the 4/2-way or 5/2-way single solenoid valve is a normally open working hole. When the solenoid valve is in the power-off state, the medium directly enters the working hole B from the air (liquid) inlet hole P, which pushes the hydraulic cylinder or the pneumatic piston to the C end. Solenoid valve for hydraulic or pneumatic cylinder,wWhen the solenoid valve is powered on, the direct-acting 4/2-way or 5/2-way solenoid valve directly lifts the iron core valve stem to close the working hole B. The gas or liquid of the pressure source flows to the working hole A, to make the piston of the pneumatic (hydraulic) cylinder push to the D end. The direct-acting solenoid valve can be used universally for air and liquid.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
