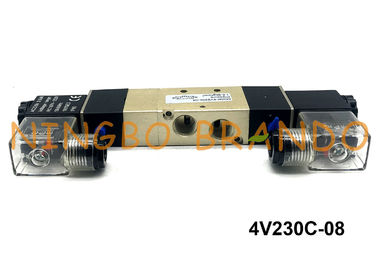

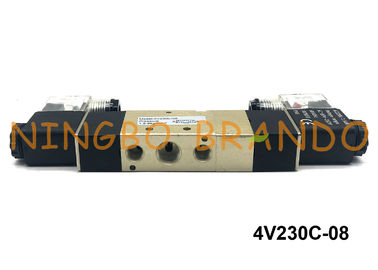

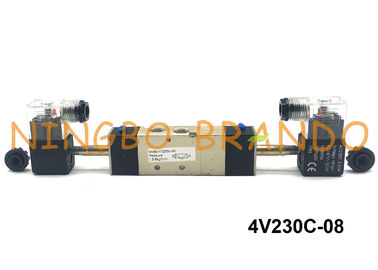

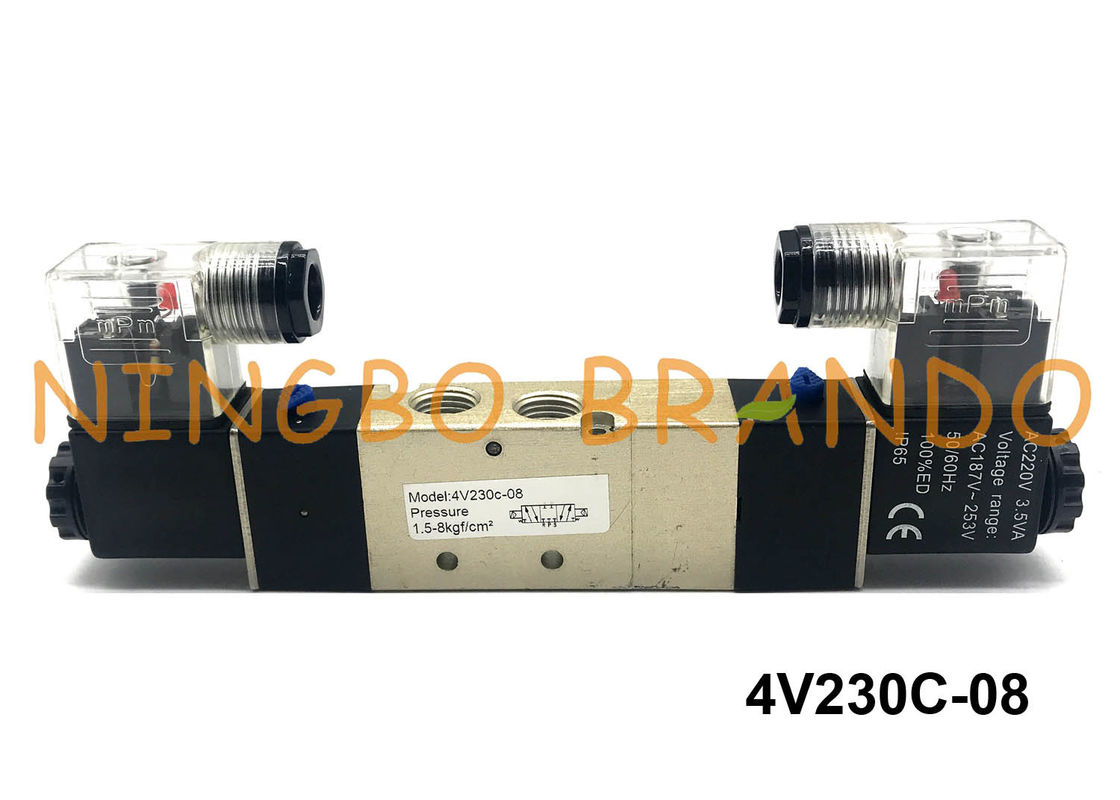

4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC

4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC

    • 4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC
    • 4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC
    • 4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC
    • 4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC
  • 4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 4V230C-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: $4 to $8 per pc
    Packaging Details: Individual box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 150000 pcs per month
    Contact Now
    Detailed Product Description
    Name: 4V230C-08 AirTAC Type Air Solenoid Valve Pipe Size: In=Out=1/4'', Exhaust=1/8''
    Thread Type: G, NPT, PT, BSPT (Female Thread) Valve Type: Double Solenoid, 5 Way 3 Position
    Action: Internal Pilot Operated Valve Body: Aluminum Alloy
    Seals: Nitrile Supply Voltages: DC12V, DC24V, AC110V, AC220V
    Color: Black, Silver, Champagne Working Medium: 40 Micron Filtered Air

    4V230C-08 PT 1/4'' AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC



    Features and Benefits:
    1. With solenoid operated for control appropriate flow and direction, provide great performance.
    2. Stury body have a long lifespan, perfect for electrically driven pneumatic power control. Double head 5 Way 3 position close type solenoid valve.
    3. Equivalent to AirTac 4V230C-08, with the same appearance.
    4. PT thread,NPT thread and G thread are available.

    5. Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
    6. The maximum actuation frequency is the no-load state.



    Package Included: 1 x Pneumatic Solenoid Valve (only).



    YouTube video of 4V230C-08 AirTAC Type Pneumatic Solenoid Valve:



    Main dimension of 4V230C-08 G1/4'' 5/3 Way Air Control Solenoid Valve:

    4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC





    Spare Part Details of 4V230C-08 5 Way 3 Position Solenoid Air Valve:

    4V230C-08 PT 1/4" AirTAC Type Air Solenoid Valve Double Electrical Control 5/3 Way 12VDC



    Specifications of 4V Series AirTAC Type Internal Pilot Solenoid Valve:

    Model Number
    4V210-06
    4V220-06
    4V230C-06
    4V230E-06
    4V230P-06
    4V210-08
    4V220-08
    4V230C-08
    4V230E-08
    4V230P-08
    Medium
    Air(to be filtered by 40 μ m filter element)
    Operation
    Internal pilot
    Pipe Size
    Inlet=Outlet=Exhaust=1/8''
    Inlet=Outlet=1/4'', Exhaust=1/8''
    Orifice Size
    25.00 mm2 (Cv=0.78)
    18.00 mm2 (Cv=0.67)
    30.00 mm2 (Cv=0.89)
    18.00 mm2 (Cv=0.67)
    Position & Way No
    5 port 2 position
    5 port 3 position
    5 port 2 position
    5 port 3 position
    Working Pressure
    0.15~0.8MPa (21~114psi)
    Proof Pressure
    1.5MPa (215psi)
    Working Temperature
    -5~50℃
    Body Material
    Aluminum alloy
    Max. frequency
    5 cycle/sec
    3 cycle/sec
    5 cycle/sec
    3 cycle/sec



    Factory production video of 4V Series AirTAC Type Solenoid Valves:



    Who We Are? Why Choose US?

    1. Brando designs and manufactures a full range of industrial grade pneumatic air control valves.



    2. These 5 Way 3 Position electrical solenoid valves are suitable for a wide range of applications. They are available in single and double coil configurations. Our 4V series of electrical solenoid valves are available in center closed, center exhaust, and pressure center style.

    All of our solenoid valves are compatible with a full line of Brando manifolds and accessories.



    3. Our professional and knowledgeable staff are always happy to help you find the right valve for the job.



    4. Brando valves are trusted by manufacturing facilities and automation experts from around the world.
