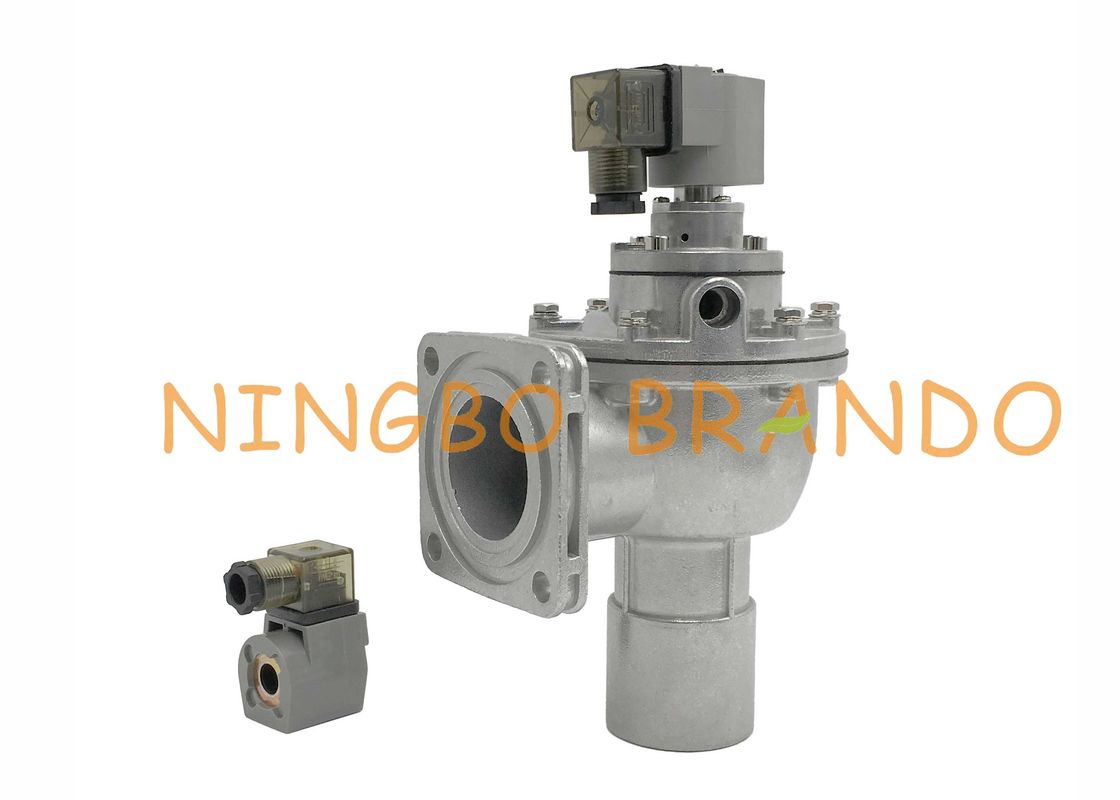

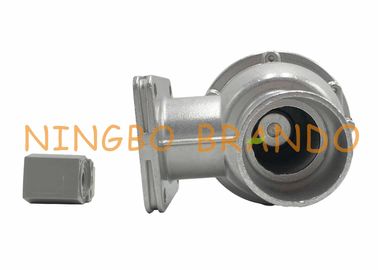

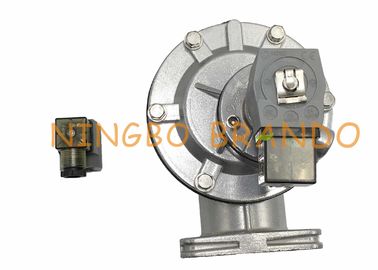

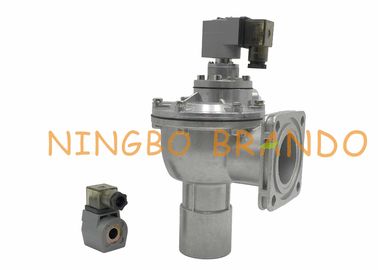

2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve

2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve

    • 2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve
    • 2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve
    • 2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve
    • 2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve
  • 2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: ISO、CE
    Model Number: CAC45FS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, , Western Union
    Supply Ability: 100000pcs
    Contact Now
    Detailed Product Description
    Model Number: CAC45FS Port Size: 2 Inch
    Material: Aluminum Alloy Power: Pneumatic
    Media: Air Working Pressure: Medium Pressure
    Temperature Of Media: Normal Temperature Diaphragm Number: 2

    2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve



    DESCRIPTION:

    Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.



    MAINTENANCE:
    Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies.Pressure

    and power should not be reapplied until the valve has been fully assembled.diaphragm and pilot inspection should be conducted annually.



    FS Series Parameter Table:

    Model CAC25FS CAC45FS
    Working Pressure 0.3MPa-0.8MPa 0.3MPa-0.8MPa
    Voltage AC24V, AC110W, AC220V, DC24V
    Inlet and Out Pipe Size 1 1/2'' IN, 1''OUT  2'' IN, 1 1/2'' OUT
    Valve Type diaphragm valve
    Action pilot operated
    Connection Type flanged inlet port
    Body Material aluminum ADC12
    Seal Material NBR(Common)



    Goyen Type CAC Series Electromagnetic Pulse Valve Kits Information:



    Model Nitrile Viton Includes
    CAC25FS Diaphragm kit K2512 K2513 Diaphragm kits include main diaphragm and spring
    CAC45FS Diaphragm kit K4516 K4519
    CAC25FS Pilot kit K0380 K0384 o-ring,armature assembly.armature spring,ferrule
    CAC45FS( Pre 9/98 models)Pilot kit K0381 K0382 o-ring,pilot shuttle,armature assembly,armature spring,ferrule
    CAC45FS(Post 9/98)Pilot kit K0390 K0391 o-ring,pilot shuttle.armature assembly.armature spring,ferrule
    CAC25FS Outlet seal G690127  G690127-2 Outlet seal
    CAC45FS Outlet seal G690864 G690103-2 Outlet seal



    Dimension Diagram:

    2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve



    Goyen Type CAC Series Electromagnetic Pulse Valve Detail:



    2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve

    Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



    Goyen Type CAC Series Electromagnetic Pulse Valve Application:



    2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve



    Youtube Video Of Goyen Type CAC45FS Solenoid Valve For Dust Collector:




    Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.
