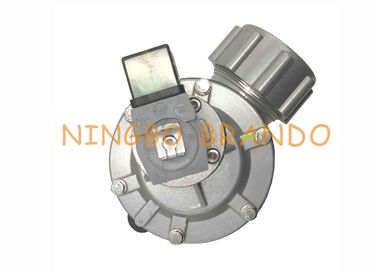

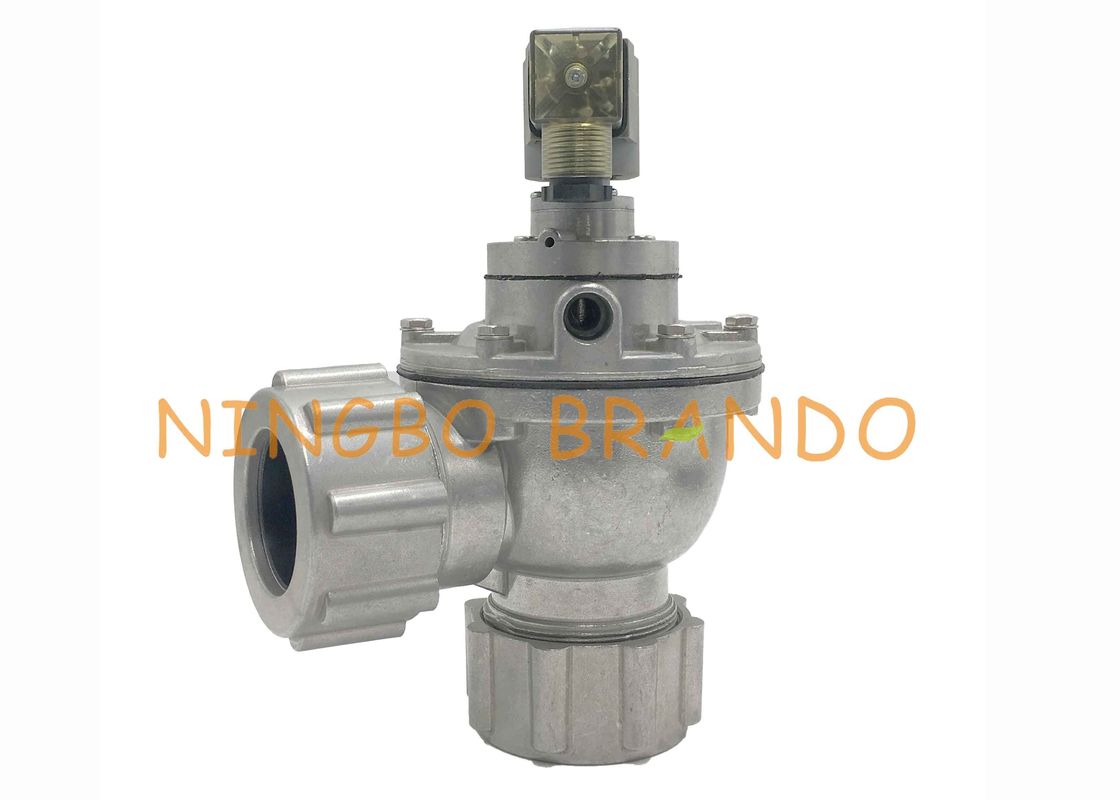

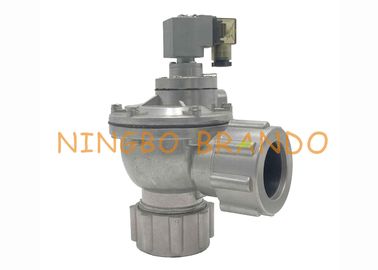

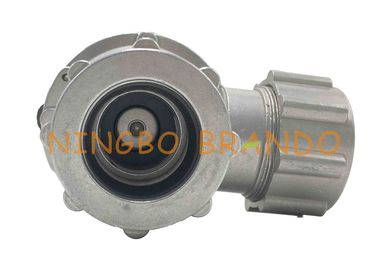

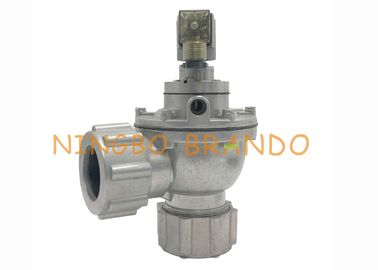

AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection

AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection

    • AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection
    • AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection
    • AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection
    • AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection
  • AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection

    Product Details:

    Place of Origin: China
    Brand Name: Drando
    Certification: CE, ISO
    Model Number: CA45DD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 7 Working Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Part Name: Pulse Jet Valve Nominal Port Size: 1 1/2"
    Material: Alumininum, Diecast Number Of Diaphragm: 2
    Pulse Valve Type: Threaded Ports Working Voltage: 24V AC, 110V AC, 220V AC; 24V DC
    Temperature: -5℃ To +55℃ Diaphragm Material: NBR(common)
    Application: Dust Collect Solenoid Valve Pressure: 0.3 MPa To 0.8 MPa

    AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection

    1 Inch DD Series Pneumatic Pulse Valve , Diaphragm Valve

    CA electro-magnetic pulse valve is a right-angle valve, with the 90 angle between the inlet and outlet, which is suitable for the installation connection between the gas dome and the bag house blow tube to provide good air flow and dust clean pulses satisfying the requirement.
    Valve body and cover are pressure die cast aluminum alloy . Normally, diaphragms are made from Buna N elastomer, and are suitable for temperatures ranging from -40 degrees F to 180 degrees F. Viton material diaphragms are option for high temperature applications.

    Product Features:

    The DD-series is high-performance reverse pulse jet valves with dresser nut connection ports. These diaphragm valves are specifically designed for the filter cleaning of dust collectors and baghouses in reverse pulse jet systems.



    DD Series Parameter Table Of Diaphragm Pulse Jet Valve In Air Purification System:

    model CA20DD CA25DD CA45DD
    nominal size 20 25 45
    port size mm 20 25 40
    in 3/4 1 1-1/2
    diaphragm number 1 1 2
    flow Kv 12 20 44
    Cv 14 23 51
    pressure(Psi) 5 to125 5 to125 5 to125
    temperature(℃) NBR -40 to 82 -40 to 82 -40 to 82
    FKM -29 to 232 -29 to 232 -29 to 232





    1 1/2 Inch DD Series Pulse Jet Valve Technical Parameters:

    Part No. CA45DD
    Operating pressure 0.3~0.8MPa
    Ambient temperature -5~55℃
    Relative humidity <85%
    Fluid Clean air
    Voltage AC110V, AC220V, DC24V
    Electric current 0.46A, 0.23A, 0.8A +-10%
    Diaphragm life More than 1 milion cycles
    Orifice Diameter φ 40 mm
    Nominal Port Size

    G1 1/2''



    Detailes of G1 1/2" Nominal Port Size Diaphragm Pulse Jet Valve and It's Overall Dimensions:

    AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection



    Pulse Jet Valve Installation:

    1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

    2, Ensure tank and pipes are free from dirt, rust or other particulate.

    3, Ensure supply air is clean and dry.

    4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

    5, Apply moderate pressure to system and check for installation leaks.

    6, Fully pressurise system.

    7, Test fire and listen for proper actuation and crisp pulse noise.



    Detail Of CA45DD Goyen Type Solenoid Valve In Dust Collector System:

    AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic Pulse Valve With Thread Connection

    Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
