1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V

1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V

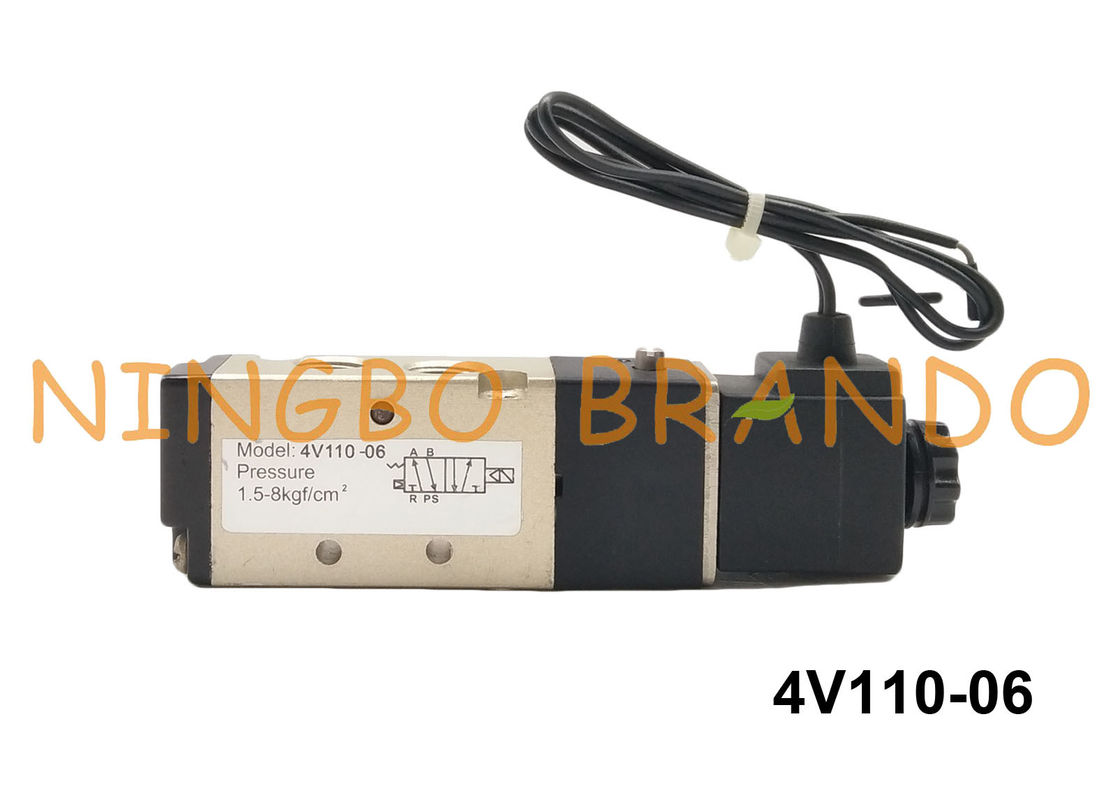

    • 1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V

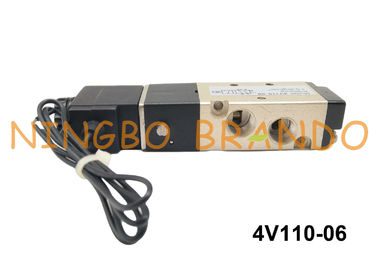

    • 1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V

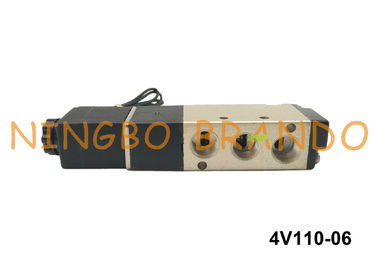

    • 1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V

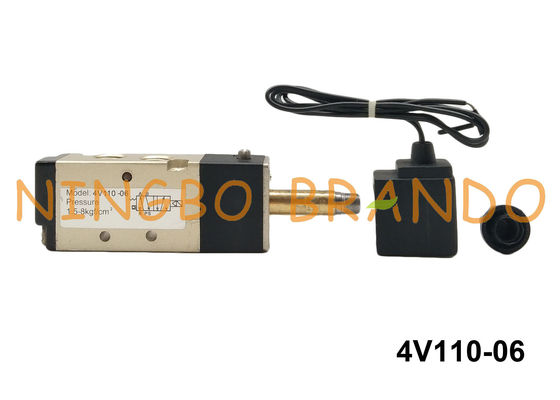

    • 1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V
  • 1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 4V110-06

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: $2 to $7 per pc
    Packaging Details: Individual box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 4V110-06 Airtac Type Solenoid Air Valve Inlet, Outlet & Exhaust Port Size: 1/8''
    Thread Type: G, PT, NPT Position & Way NO.: 5/2 Way
    Fluid: Air Applicable Pressure Range: 0.15-0.8MPa(21-114Psi)
    Ambient & Fluid Temperature: -5 To +50°C Working Method: Internal Pilot Operated
    Voltages: AC110V, AC220V, DC12V, DC24V Valve Body Material: Aluminum Alloy

    1/8'' NPT 2 Position 5 Way 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve DC24V AC220V



    This solenoid air valve is a functional replacement for the Airtac 4V100 series & SMC VFS1000 series. 4V110-06 has 1/8″ Inlet, Outlet and Exhaust Port. Five Way Two Positions (5/2 way) Solenoid Valve, Normally Closed with Spring Return. Options such as lead wire connection, sub-plate mounting, metric port etc, are all available. Pls contact us for details.



    Product Features:

    1. Pilot-oriented mode: optional for internal or external;

    2. Structure in sliding column mode: good tightness and sensitive reaction;

    3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;

    4. It is available to form integrated valve group with the base to save installation space;

    5. Affiliated manual devices are equipped to facilitate installation and debugging;

    6. Several standard voltage grades are optional;



    YouTube video of 1/8'' 5/2 Way 4V110-06 Pneumatic Solenoid Valve:



    Main dimension of 1/8 Inch 4V110-06 Airtac Type Solenoid Air Valve:

    1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V



    Details display of G1/8'' 2 Position 5 Way AIRTAC Type Solenoid Valve:

    1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V



    Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

    Model
    4V110-06
    4V120-06
    4V130C-06
    4V130E-06
    4V130P-06
    4V110-08
    4V120-08
    4V130C-08
    4V130E-08
    4V130P-08
    Fluid
    Air(to be filtered by 40 μ m filter element)
    Acting
    Internal pilot or external pilot
    Port Size
    In=Out=1/8''
    In=Out=1/4''
    Orifice Size
    5.5 mm² (Cv=0.31)
    5.0 mm² (Cv=0.28)
    12.00 mm² (Cv=0.67)
    9.00 mm² (Cv=0.50)
    Valve Type
    5 Port 2 Position
    5 Port 3 Position
    5 Port 2 Position
    5 Port 3 Position
    Operating Pressure
    0.15~0.8MPa (21~114psi)
    Proof Pressure
    1.5MPa (215psi)
    Temperature ℃
    -5~50
    Material of Body
    Aluminum alloy
    Max. frequency
    5 cycle/sec
    3 cycle/sec
    5 cycle/sec
    3 cycle/sec



    Application examples of 4V Series Aluminum Alloy Air Solenoid Valve:

    1/8" NPT 4V110-06 AIRTAC Type Pneumatic Solenoid Air Valve 2 Position 5 Way DC24V AC220V



    Brando Pneumatic Solenoid Valve Production Process Video On YouTube:



    Installation Instructions:
    1. Before installing, be sure the valve hasn’t been damaged via transportation.


    2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.


    3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.


    4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
    5. Take measure to avoid vibration and frozen.


    6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.


    7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.


    8. After installing, please use the manual override to test valve first.
