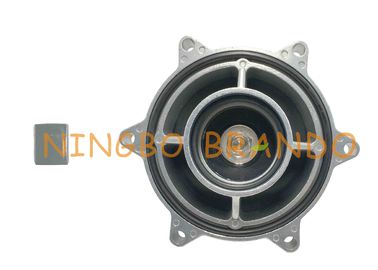

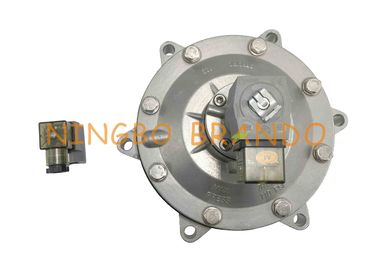

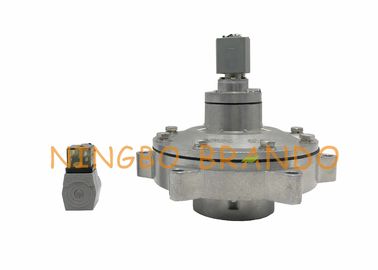

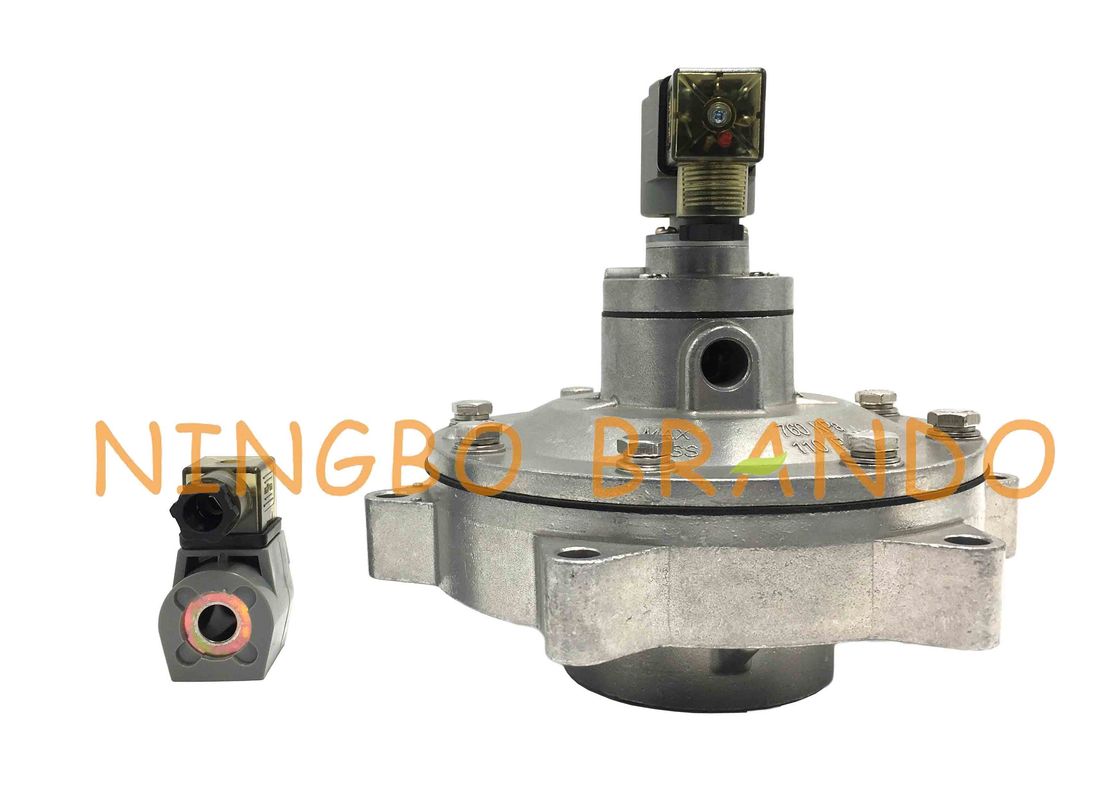

Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems

Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems

  • Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems
  • Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems
  • Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems
  • Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems
Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: ISO、CE
Model Number: CA62MM
Payment & Shipping Terms:
Minimum Order Quantity: 2 pc
Price: negotiation
Packaging Details: boxes,cartons,pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Pipe Size: 2 1/2 Inch Type: Submerged
Application: Dust Collector Model: CA62MM
Diaphragm Number: 2 Work Pressure: 0.3 To 0.8 MPa
Temperature Range: -5℃ To +55℃ Action: Pilot Operated
High Light:

Goyen Pulse Valve

,

Goyen Pulse Jet Valve

,

Goyen Solenoid Valve

Two-position Two-way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust-collector Systems

INSTALLATION:
1. MM valves are installed through the tank.

2. to avoid any potential operational problem it is preferable that the valves are not mounted underneath the tank where condensation may collect. all o-rings should be coated with a silicone based lubricant or similar.

3. dresser nut seals where used are a pressure seal only, not a structural component. do not rely on dresser seals to retain either the tanks or blowtubes. tanks and blowtubes must be independently restrained.

4. tighten dresser nuts to 20Nm max.

SUITABLE FOR:
dust collector application,in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Technical parameters of Goyen Type MM Series Reverse Pulse Jet Valves:



model no CA25MM CA40MM CA50MM CA62MM CA76MM CA102MM
nominal size 25 40 50 62 76 102
port size mm 25 40 50 62 76 102
inch 1'' 1 1/2'' 2'' 2 1/2'' 3'' 3 1/2'' 4''
pressure range 0.3 to 0.8MPa
temp range nitriles seals -40 to 82℃
viton seals -29 to 232℃


Main Dimension Diagram of 2 1/2 Inch CA62MM Goyen Type Dust Collector Pulse Valve:
Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems 0
Details of 2 1/2 Inch CA62MM Goyen Type Diaphragm Valve In Reverse Pulse Jet System:
Two Position Two Way 2 1/2 Inch Goyen Type MM Series CA62MM Electromagnetic Pulse Valve For Dust Collector Systems 1
Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)

MAINTENANCE
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

INSTALLATION
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.

Youtube video of 2 1/2 Inch CA62MM Goyen Type Dust Collector Pulse Solenoid Valve:



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
