| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | CA50T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 80000 sets per month |
| Port Size: | 2 Inch DN50 | Connection Type: | Female Thread |
|---|---|---|---|
| Nonimal Diameter: | φ50 Mm | Material: | Aluminum Body |
| Voltages: | DC24V, AC110V, AC220V, AC230V | Working Pressure: | 0.3-0.8 MPa |
| Environment Temperature: | -5℃-55℃ | Diaphragm Number: | 2 |
| High Light: | Goyen Pulse Valve,Goyen Pulse Jet Valve,Goyen Solenoid Valve |
||
DESCRIPTION:
high performance diaphragm valve with thread ports. available with integral pilot or as remotely piloted valve. outlet at 90 ° to inlet.
SUITABLE FOR:
dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
Main Dimension Diagram of 2 Inch DN50 CA50T Goyen Type Dust Collector Pulse Valve:
Technical parameters of Goyen Type T Series Reverse Pulse Jet Valves:
| Model numbers | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T |
| Nonimal diameter | φ15 | φ20 | φ25 | φ35 | φ45 | φ50 | φ62 | φ76 |
| Port size | G1/2'' | G3/4'' | G1'' | G1-1/4'' | G1-1/2'' | G2'' | G2-1/2'' | G3'' |
| Weighgts (kg) | 0.6 | 0.6 | 0.72 | 1.1 | 1.5 | 2.9 | 3.4 | 4.8 |
| Operation | Internal pilot | |||||||
| Working pressure | 0.3-0.8 mpa | |||||||
| Environment temperature | -5℃-55℃ | |||||||
| Relative Humidity | ≤85% | |||||||
| Operating medium | Compressed air | |||||||
| Protection class | IP 65 | |||||||
| Service life | Over 1000000 times | |||||||
| Voltages | DC24V, AC110V, AC220V, AC230V | |||||||

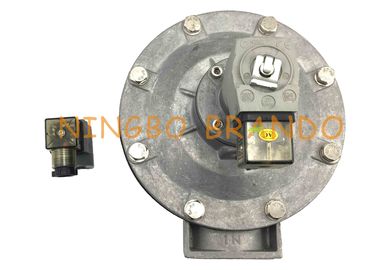

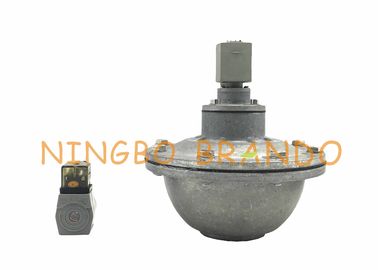

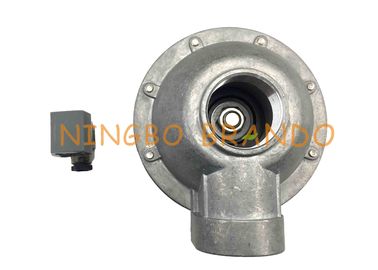

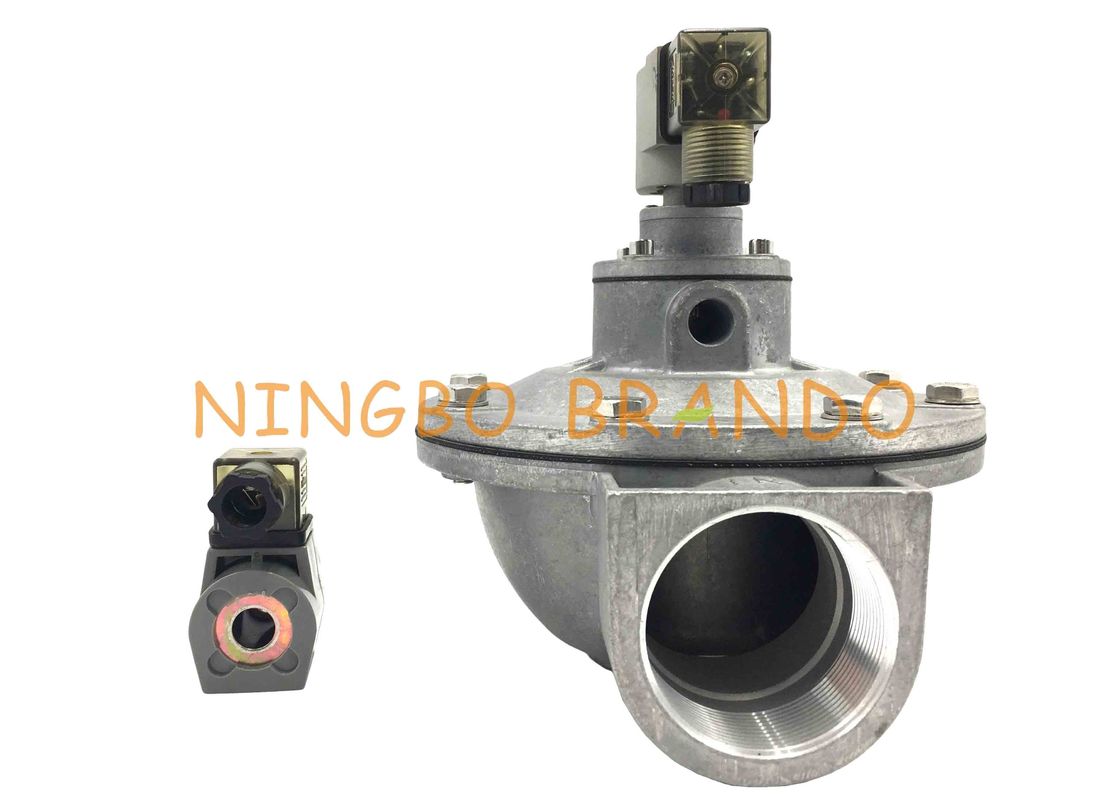

Details of 2 CA50T Goyen Type Diaphragm Valve In Reverse Pulse Jet System:
Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
MAINTENANCE
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.
INSTALLATION
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Youtube video of 2 Inch CA50T Goyen Type Dust Collector Pulse Solenoid Valve:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
