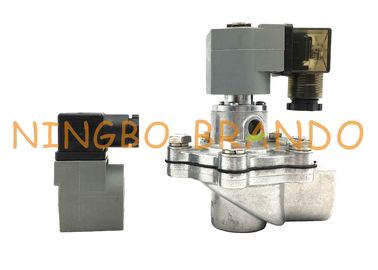

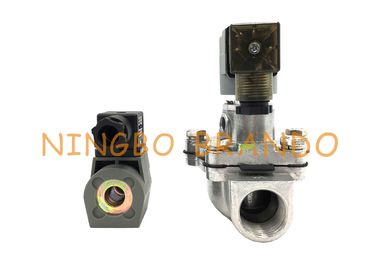

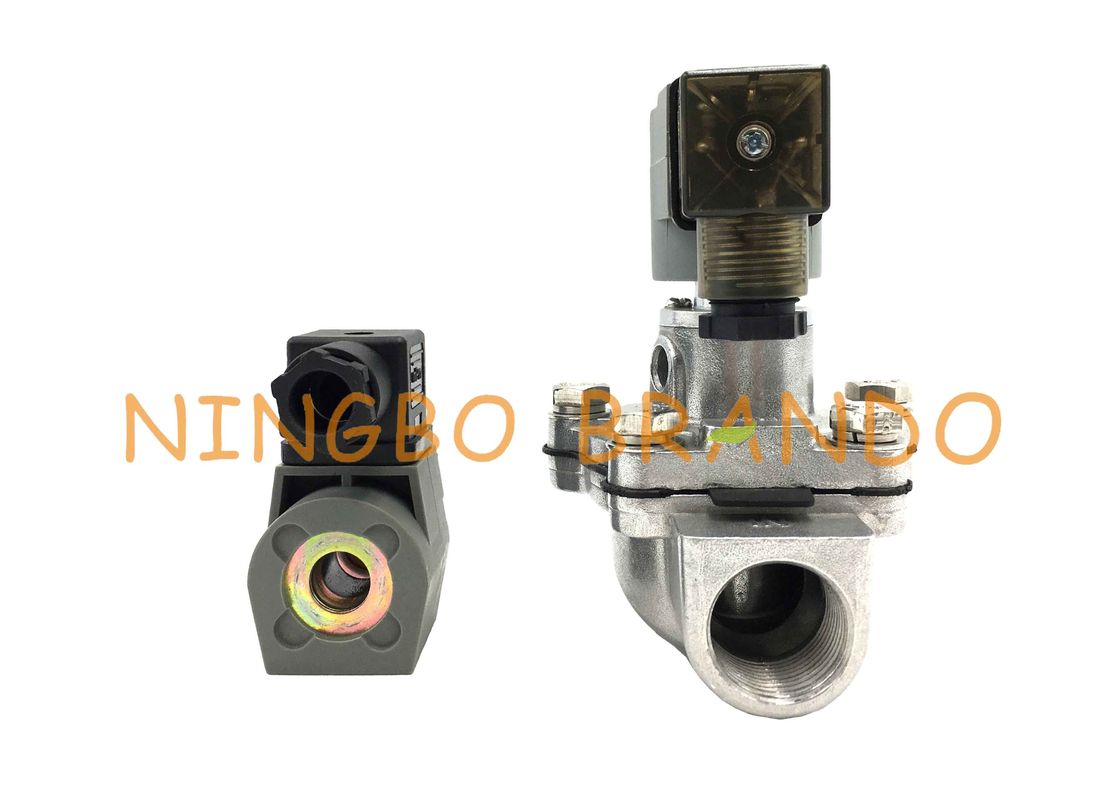

1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V

1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V

    • 1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V
    • 1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V
    • 1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V
    • 1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V
  • 1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: CA15T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 80000 sets per month
    Contact Now
    Detailed Product Description
    Port Size: G1/2 DN15 Connection Type: Threaded Connection
    Nonimal Diameter: φ15mm Material: Aluminum Body
    Voltages: DC24V, AC110V, AC220V, DC12V Diaphragm Number: 1
    Working Pressure: 0.3-0.8 MPa Environment Temperature: -5℃-55℃
    Model Number: CA15T

    1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V

    Product about us:
     good quality materials be used in ours solenoid valve,Strictly control each production to ensure that cuscustomer get satisfactory product.Provide customized services according to different requirements of customers,
    like different voltage,sizes,and others.From the beginning of production to the customer getting the product.We always follow the products.

    Used For Following:
    concrete processing
    grain agriculture and feed
    metal working( abrasive  blasting)
    food processing
    dust collect system
    Main dimension of 1/2 Inch DN15 CA15T Goyen Type Dust Collector Pulse Valve:
    1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V

    Technical parameters of Goyen Type T Series Reverse Pulse Jet Valves:

    Model numbers CA15T CA20T CA25T CA35T CA40T CA50T CA62T CA76T
    Nonimal diameter φ15 φ20 φ25 φ35 φ40 φ50 φ62 φ76
    Port size G1/2'' G3/4'' G1'' G1-1/4'' G1-1/2'' G2'' G2-1/2'' G3''
    Weighgts (kg) 0.6 0.6 0.72 1.1 1.5 2.9 3.4 4.8
    Operation Internal pilot
    Working pressure 0.3-0.8 mpa
    Environment temperature -5℃-55℃
    Relative Humidity ≤85%
    Operating medium Compressed air
    Protection class IP 65
    Service life Over 1000000 times
    Voltages DC24V, AC110V, AC220V, AC230V

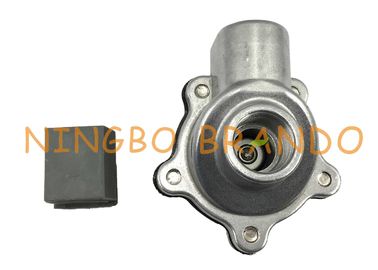

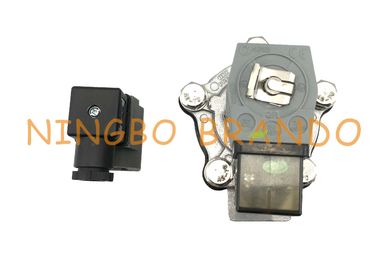

    Details of 1/2 CA15T Goyen Type Diaphragm Valve In Reverse Pulse Jet System:
    1/2 Inch CA15T Goyen Type T Series Electromagnetic Pulse Valve With Threaded Connection AC 220V DC 24V
    Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



    Youtube video of 1/2 Inch CA15T Goyen Type Dust Collector Pulse Solenoid Valve:

    MAINTENANCE
    Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

    INSTALLATION
    1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
    2. Ensure tank and pipes are free from dirt, rust or other particulate.
    3. Ensure supply air is clean and dry.
    4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
    5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
    6. Apply moderate pressure to system and check for installation leaks.
    7. Fully pressurise system.
    8. Test fire and listen for proper actuation and crisp pulse noise.
