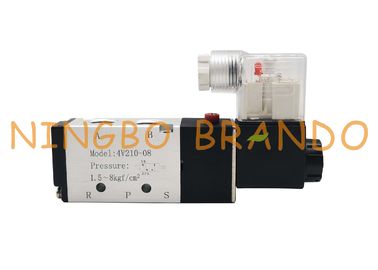

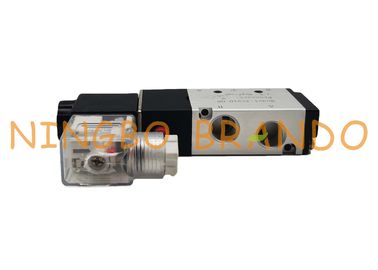

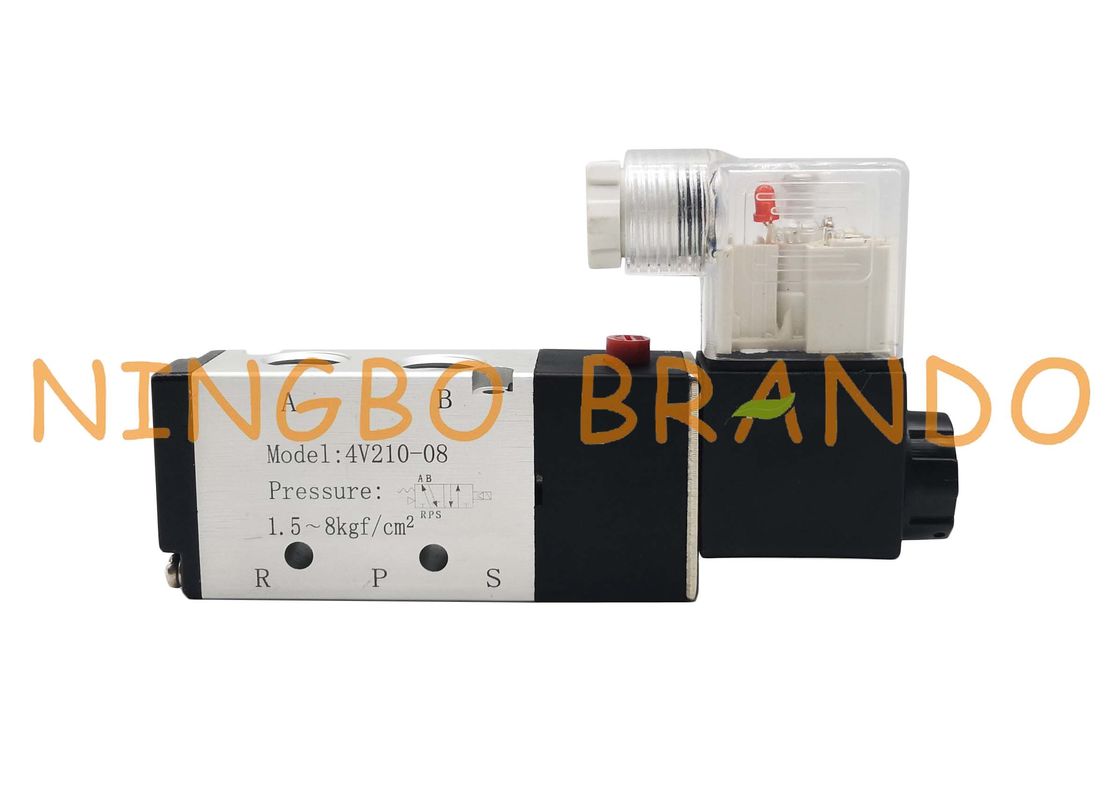

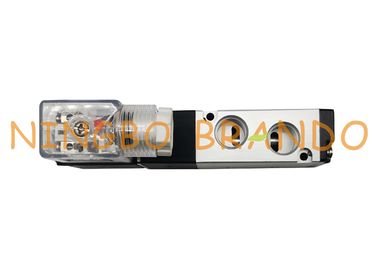

AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way

AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way

    • AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way
    • AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way
    • AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way
    • AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way
  • AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 4V210-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 300000 sets per month
    Contact Now
    Detailed Product Description
    Inlet & Outlet Size: 1/4'' PT Exhaust Size: 1/8'' PT
    Valve Type: 5 Port 2 Position Action Type: Pilot Piston Operated
    Voltages: AC110V, AC220V, DC24V, DC12V Temperature Range: -5 To +50°C
    Differential Pressure: 0.15-0.8MPa (21-114Psi) Valve Body Material: Aluminum Alloy
    Seal Material: NBR Orifice Size: 16.0mm² (Cv=0.69)
    Max. Frequency: 5 Cycle/sec

    AC220V DC24V 1/4'' PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way



    Product Features of 1/4'' PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way:

    1. Structure in sliding column mode: good tightness and sensitive reaction;
    2.Three position solenoid valves have three kinds of central function for your choice;
    3. Double control solenoid valves have memory function;
    4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
    5. It is available to form integrated valve group with the base to save installation space;
    6. Several standard voltage grades are optional;



    Main dimension of 1/4'' PT Airtac Type 4V210-08 Pneumatic Solenoid Valve:

    AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way



    Technical parameters of AIRTAC Type 4V200 Series Solenoid Pneumatic Valve:

    Model NO

    4V210-06

    4V220-06

    4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08

    4V230C-08

    4V230E-08

    4V230P-08

    Fluids Air( to be filered by 40um fitter element)
    Acting Piloted
    Port size ln=Oul= Exhaust=1/8'' ln=Out =1/4'' Exhaust=1/8''
    Orifice size 14.0mm²(Cv=0.78) 12.0mm² (Cv=0.67) 16.0mm² (Cv=0.69) 12.0mm²(Cv=0.67)
    Valve type 5 port 2 position 5 port 3 position 5 port 2 position 5 port 3 position
    Operating pressure 0.15-0.8MPa(21-114Psi)
    Proof pressure 1.5MPa(215Psi)
    Temperature range -5 ~ 50°C
    Material of body Aluminum alloy
    Lubrication Not required
    Max. frequency 5 cycle/sec 3 cycle/sec 5 cycle/sec 3 cycle/sec



    Details of 1/4'' PT Airtac Type 4V210-08 5 Position 2 Way Pneumatic Valve:

    AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way



    Application examples of 1/4'' PT Airtac Type 4V210-08 Air Control Solenoid Valve:

    AC220V DC24V 1/4" PT Airtac Type Pneumatic Solenoid Valve 4V210-08 Pilot Operated 5/2 Way



    Video of 1/4'' PT 4V210-08 Airtac Type Pneumatic Solenoid Air Valve:





    1/4'' PT Airtac Type 4V210-08 Solenoid Valve Uses:

    1.Before installing, be sure the valve hasn’t been damaged via transportation.


    2.It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.


    3.Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.


    4.Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.


    5.Take measure to avoid vibration and frozen.


    6.Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
    7.To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.


    8.After installing, please use the manual override to test valve first.



    If you need a 4V210-08 price list, please contact us by e-mail, we will give you an affordable price.



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
