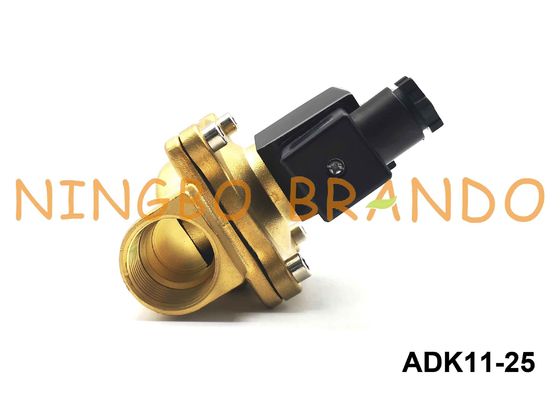

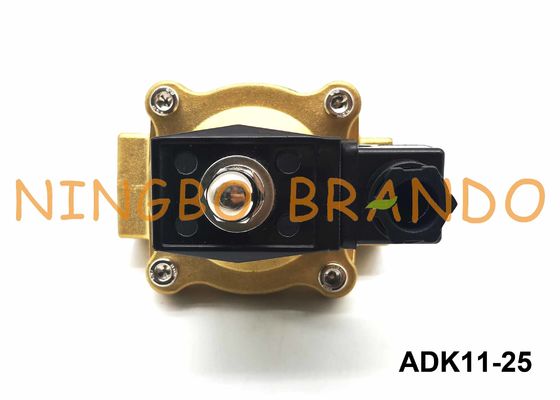

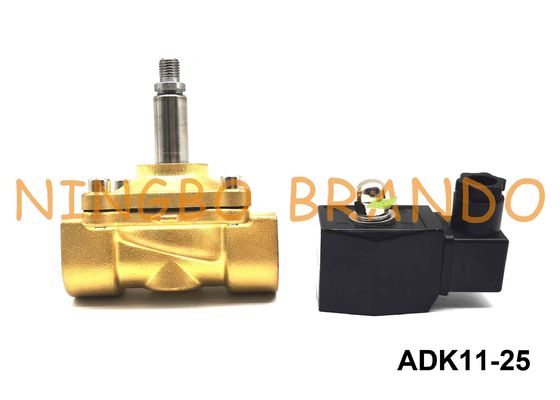

DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve

DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve

    • DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve
    • DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve
    • DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve
    • DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve
  • DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 2W250-25-L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $5-$10 per set
    Packaging Details: Inner Boxes, Cartons, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 150000 sets per month
    Contact Now
    Detailed Product Description
    Product Name: CKD Type Pilot Kick Solenoid Valve Replacements: ADK11-25G, ADK11-25A, ADK11-25N
    Port Size: 1'' Inch Voltages: DC24V, AC220V
    Body Material: Brass Diaphragm Material: NBR, EPDM, VITON
    Fluid Temperature: -10 ~ +60℃ Pressure Range: 0~0.8MPa
    Function: 2/2 Way Normally Closed (NC) Action Type: Internal Pilot Operated

    DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1'' Inch Pilot Kick Solenoid Valve



    The introduced is CKD type ADK11-25 Pilot kick 2-port diaphragm drive solenoid valve which compatible with a variety of fluids. It can be used with differential pressure 0 and supports various applications through material selection. The features as follows:



    1. Supports multiple fluids
    The body and sealant material can be selected to support various fluids.



    2. Variations
    Compatible with various applications by combining a variety of coil options.



    3. Differential pressure 0 actuation
    Pilot kick which actuates even at differential pressure 0.



    Main Dimension of CKD Type ADK11-25 1'' Inch Pilot Kick Solenoid Diaphragm Valve:

    DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve



    Technical Parameters of CKD Type ADK Seies Pilot Kick Diaphragm Solenoid Valve:

    Model Port size Orifice size CV value Working pressure

    Max Fluid temperature

    (℃)

    Seal material Insulation class Coil power
    Min (MPa) Max (MPa)
    VA Watt
    AC220V DC24V AC220V DC24V
    ADK11-10 3/8'' 16 4.8 0 10 6 80 NBR H 20 20
    16 4.8 0 10 6 130 EPDM H 20 20
    16 4.8 0 10 6 120 VITON H 20 20
    ADK11-15 1/2'' 16 4.8 0 10 6 80 NBR H 20 20
    16 4.8 0 10 6 130 EPDM H 20 20
    16 4.8 0 10 6 120 VITON H 20 20
    ADK11-20 3/4'' 20 7.6 0 10 6 80 NBR H 20 20
    20 7.6 0 10 6 130 EPDM H 20 20
    20 7.6 0 10 6 120 VITON H 20 20
    ADK11-25 1'' 25 12 0 10 6 80 NBR H 20 32
    25 12 0 10 6 130 EPDM H 20 32
    25 12 0 10 6 120 VITON H 20 32



    Details of DC24V CKD Type ADK11-25 1'' Inch Pilot Kick Electromagnetic Valve:

    DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve



    Application Examples of CKD Type ADK Series Pilot Kick Type Solenoid Valve:

    DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve



    Our Production of ADK11-25G / ADK11-25A / ADK11-25N Pilot Kick Solenoid Valve:

    DC24V CKD Type ADK11-25G / ADK11-25A / ADK11-25N 1" Inch Pilot Kick Solenoid Valve



    Youtube Video of ADK11-25G/N/A CKD Type Pilot Kick Solenoid Diaphragm Valve:



    CKD Type General purpose pilot operated 2 port solenoid valve:

    The general purpose valve series enables control of various types of fluids including water, air, oil and vacuums. In addition to the high reliability and high quality of the valve, the variety of options and variations are available.



    Various working fluids control
    Various types of fluids can be handled by selecting the proper body material and sealant.


    Wide option range
    Including open frame, coil with diode, and terminal boxes.


    A great variety of series and variation
    A wide selection is available from the Rc1/4 to large 50 flanges with series such as pilot operated diaphragm and piston valves, and pilot kick type diaphragm and piston valves.
