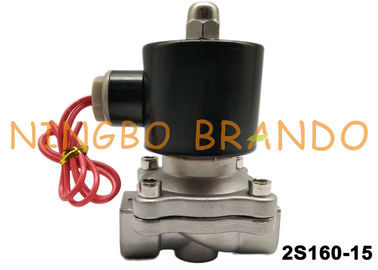

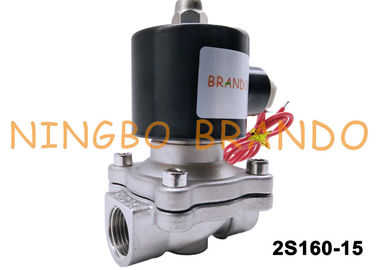

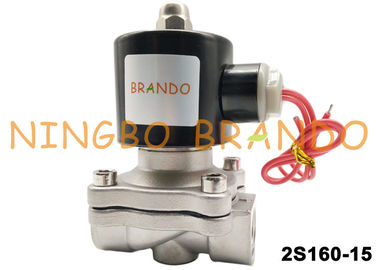

2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V

2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V

  • 2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V
  • 2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V
  • 2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V
  • 2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V
2/2 Way G 1/2 Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: ISO、CE
Model Number: 2S160-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Body Material: Stainless Steel Seal Material: NBR Or VITON
Orifice Size: 16 Mm Port Size: G 1/2 Inch
Operation: Direct Dirve CV: 4.8 M3/h
Usage: Flow Control Connection Form: Thread
High Light:

Stainless Steel 304 Solenoid Valve

,

2 Way SS Solenoid Valve

,

Water Treatment Solenoid Valve

2/2 Way G 1/2  Inch Normal Close Solenoid Valve Stainless Steel Body 2S160-15 AC220V



2S160-15 solenoid valve is a two position two way , the structure of which is mainly composed of a pilot valve and a main valve, and the main valve adopts a rubber sealing structure. This 220V AC Stainless Steel electric solenoid valve easily replaces broken valves for use with water, air, and gas.


ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.



2S160-15

2S: 2 / 2 Way Direct Drive Solenoid Valve With Stainless Steel Body

160: Orifice Size is 16 mm

15: Port Size is G1/2  Inch



Technical Data:

Model  2S160-15
Working Medium Air, Water, Steam
Operation Direct Drive
Type Normal Close
Orifice Size 16 mm
Port Size G 1/2  Inch
CV  4.5 m3/h
Operating Pressure 0.07 Mpa
Max. Pressure Resistance 1.0 Mpa
Operating Temperature

-5~80℃

Voltage Range +-10%
Operation Fluid Viscosity 20 CST Below

Special voltages and special speciications, plz contant us.



Dimension Drawing

dimension Drawing

Model 2S160-15
A 96
B 57
C 110
D 67.5
K G 1/2  Inch

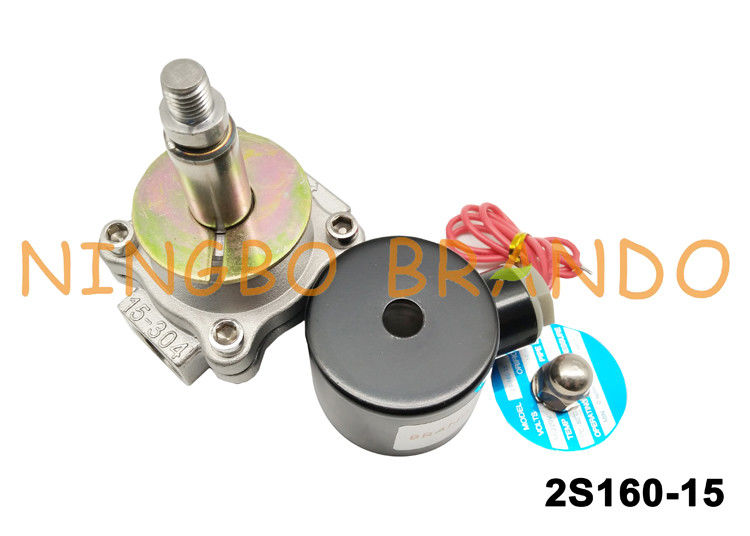

Deconstruction diagram

Deconstruction diagram



Details

Deatils



More Details About 2S160-15 On Youtube:







Feature and Specifications



Features:
1. The electric solenoid valve is made of high quality material, with long serving life.
2. Easily replaces broken valves for use with water, air, and gas.
3. Compact structure, small size, light weight, convenient to mount and dismount.
4. Stainless steel valve body, anti-corrosion, sturdy and durable.
5. Adopt heat resistant electromagnetic coil and standard seal material, safe and stable.

Specification:
Material: Stainless steel
Connection Form: Thread
Flow Direction: One-way direction
Uses: Flow Control



Working principle:
When the coil is energized, the pilot spool is closed, the pilot hole is opened, the upper chamber of the valve is relieved, the piston is pushed by the medium pressure of the lower chamber, and the solenoid valve is opened.
When the coil is de-energized, the pilot spool is reset by the spring, the pilot hole is closed, the upper chamber of the valve is pressurized by the piston orifice and the thrust of the return spring, and the solenoid valve is closed.



How To Choose The Right Seal Of Solenoid Valve:



Nitrile Rubber - Nitrile rubber has a high chemical resistance, making it ideal for seals in valves used to regulate oils and petroleum. NBR also has great abrasion resistance. It does not handle oxidizing media well, however.
NBR is most commonly used in applications involving water, air, oils, and gases. It is ill-suited for chlorinated hydrocarbons, ethers and esters, as well as methyl ethyl ketone and ozone acetone. It is much cheaper than FKM/FFKM.





VITON, a fluorine-containing rubber in the molecule, has various types depending on the fluorine content, that is, the monomer structure. The high temperature resistance is superior to that of silicone rubber. Chemical resistance, most oils and solvents (except ketones and esters), good weather resistance and ozone resistance, but poor cold resistance; temperature range -20 ° C ~ 260 ° C, low temperature requirements for low temperature resistance. The type can be used up to -40 ° C, the price is higher.



Welcome to your any question and inquiry!
