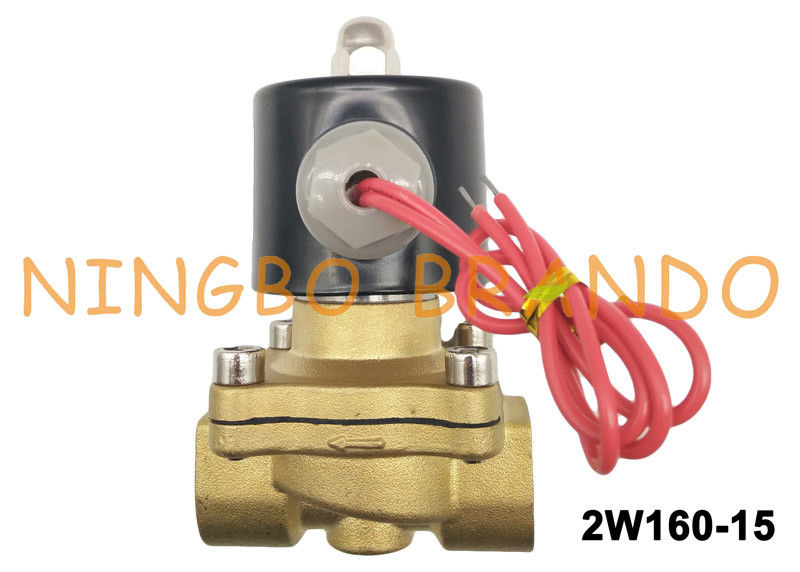

2W160-15 Brass Water Solenoid Valve For Water Treatment System DN15

2W160-15 Brass Water Solenoid Valve For Water Treatment System DN15

The below is 2 Position 2Way Normally Closed Solenoid Valve 2W160-15 is used for Water Treatment System.This Valve body made of Forged Brass, Direct Drive, and normally closed.Able to be operated directly without pressure.This is a unidirectional valve, therefore the valve will only stop media while closed traveling along the direction of the valve’s arrow; the valve is not intended to be used with media travelling both ways.

Specification of DN15 Port 2W160-15 solenoid water valves

1.2W: Two Position Two Way Solenoid Valve(Direct Drive Type)

2.160: Aperture Of Flow Rate is 16mm

3.15: The Joint Pipe Bore is G1/2"

4.Standard Voltage : 220V  Voltage Range : ±10%

5.Working medium : air,water,oil,gas
6.Motion Pattern : Direct Drive Type
7.Cv Value : 4.8
8.Operation Fluid Viscosity : below 20 CST
9.Working Pressure : Oil:0~5kgf/cm²     Gas:0~7kgf/cm²    Water:0~5kgf/cm²   Air:0~7kgf/cm²

10.Max.Pressure Resistance : 10.5 kgf/cm²
11.Operating Temperature Range : -5~80°C

Features of 2 Position 2 Way of 1/2" 2W160-15 Water Diaphrgam Valves

1.Working Medium: Air,Water,Oil and Gas.

2.Motion Pattern: Direct Drive.

3.Type:Normal Close Type.

4.Body material: Brass.It has good wear resistance.

2W160-15 2 Way NC Solenoid Valve Technical Data

Overall Dimension Drawing of Brass Body Solenoid Valve 2W160-15

Product disassembly diagram of AC220V/DC24V voltages brass 2W160-15 solenoid valves

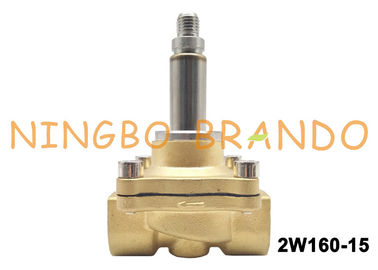

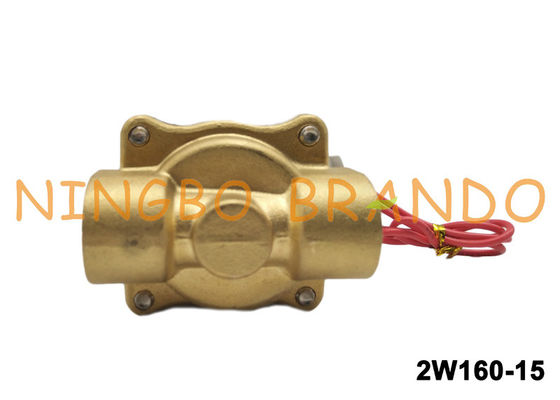

Details Enlargement of 1/2'' inch 2/2 Way Solenoid Valve 2W160-15

About Installation:

1.Before using the solenoid valve for water, pay attention to the product label and read the instruction manual carefully to judge whether the product meets the conditions of use.

2.There is an arrow indicating the direction of flow on the stainless valve body.

3.An inline filter is recommended to keep debris from impeding on the flow and seal.

4.The coil is 220 Volts AC with a tolerance of +/- 10% making it perfect for 220 Volt AC power systems.

Solenoid valve failure and troubleshooting methods:

1.Valves Do Not Open

Power Failure→ reconnect and connect the connector
Uneven Pressure /Wrong Voltage→ adjust to normal position

Dirt Under The Diaphragm→clean the pipe or install a pre-filter

2.Valves Can Not Be Closed

The seal of the main valve core or iron core has been damaged → replace the seal

Impurities into the solenoid valve core or moving iron core → clean

3.

other information:

1. Internal leakage → check whether the sealing ring is damaged and the spring assembly is incorrect;
2. External leakage → loose connection or damaged seal → tighten the screw or replace the seal;
