1/4" Brass Direct Drive Solenoid Valve UNI-D Type NC For Air Water Oil And Gas

1/4''Brass Diret Drive Solenoid Valve UNI-D Type NC for Air,Water, Oil and Gas

The below is UNI-D Type 2 Way Normally Closed 2W025-08 Solenoid Valve is used to control Air, Water and other media and is widely used in the industrial or automotive industry, the thread port size is G1/4'', the orifice size is φ2.5mm,Normal Close Type Direct Drive Solenoid Valve which is constructed with Brass Body.

Product Description:

1.This brass electric solenoid valve easily replaces broken valves for use with water, air, and gas.

2.Brass and stainless steel construction,Threaded mounting hole as specified in valve body.

3.Reliable, proven high flow design.Various pressure levels,long service life, less internal leakage.

4.Using widely ,air compressors, pumps, laundry equipment, industrial water control and so on.

5.Rated voltage: AC110V / AC220V / DC24V (50 / 60Hz).

6.Operation Fluid Viscosity:20 CST below

Specifications and features of the brass solenoid valve:

1.This 220V AC brass solenoid valve easily replaces broken valves for use with water, air, and gas.

2.Good copper material, crush resistance, crack leak proof, safe non toxic and long life.

3.Rated voltage: AC110V / AC220V / DC24V (50 / 60Hz).Voltage Tolerance: 10%

4.Valve body is made of brass and sealing material is NBR, with good medium compatibility, high reliability, long service life and low cost.

2 Way 2 position Solenoid Valve Technical Date

2W025-08 Normal Closed (N/C) Electric Solenoid Valve dimension Drawing

Deconstruction diagram of 2W025-08 UNI-D Type 2 Way Electromagnetic Valve:

Details enlargements of UNI-D Type 2W025-08 2/2 NC Solenoid Valve:

The Geaphic Symbol of 1/4''Brass Diret Drive Solenoid Valve UNI-D Type NC

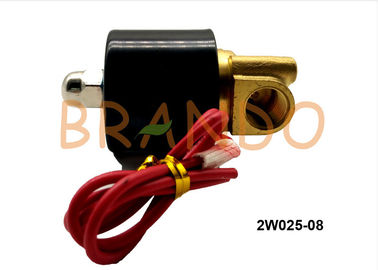

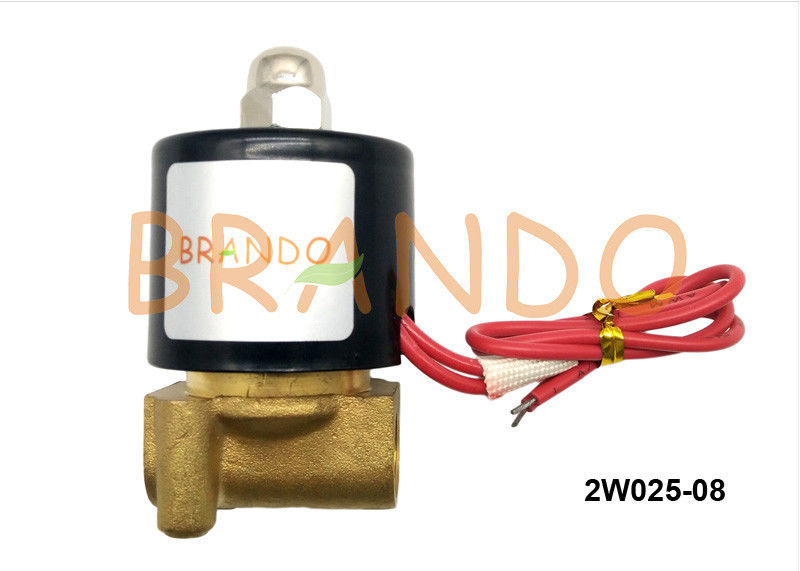

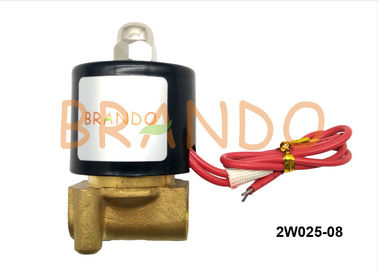

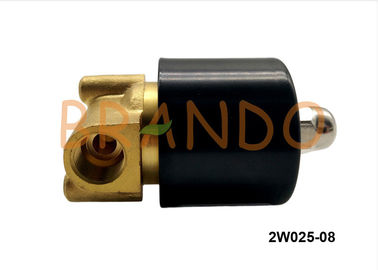

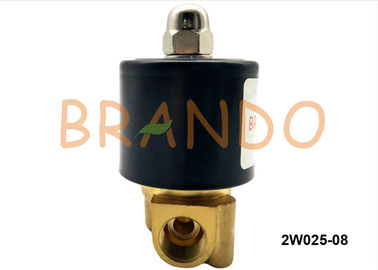

More display of 2W25025 solenoid valve:

Welcome to your any question and inquiry!
