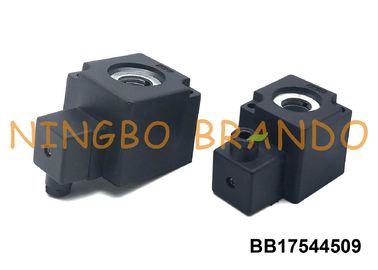

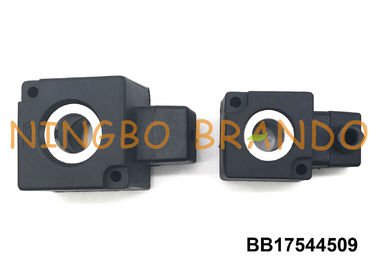

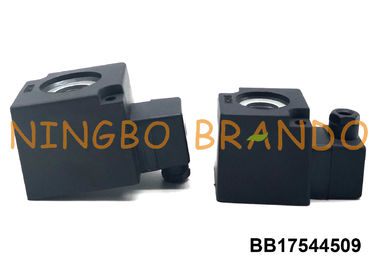

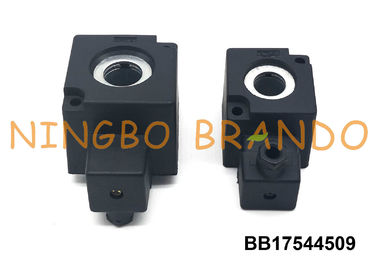

DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm

DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm

    • DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm
    • DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm
    • DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm
    • DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm
  • DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB17544509

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1-$10 per set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 300000 set per month
    Contact Now
    Detailed Product Description
    Type: Pilot Solenoid Valve Coil Material: Plastic, Brass
    Product Name: K23D-3 Pilot Operated Pneumatic Solenoid Coil Voltage: DC12V, DC24V, AC110V, AC220V
    Hole Diameter: 17.5 Mm Power: AC22VA, DC12Watt
    Color: Black (Other Color Can Be Customized) Application: Pilot Operated Pneumatic Solenoid Valve
    Insulation Class: H, B, F Connection Type: DIN4.8

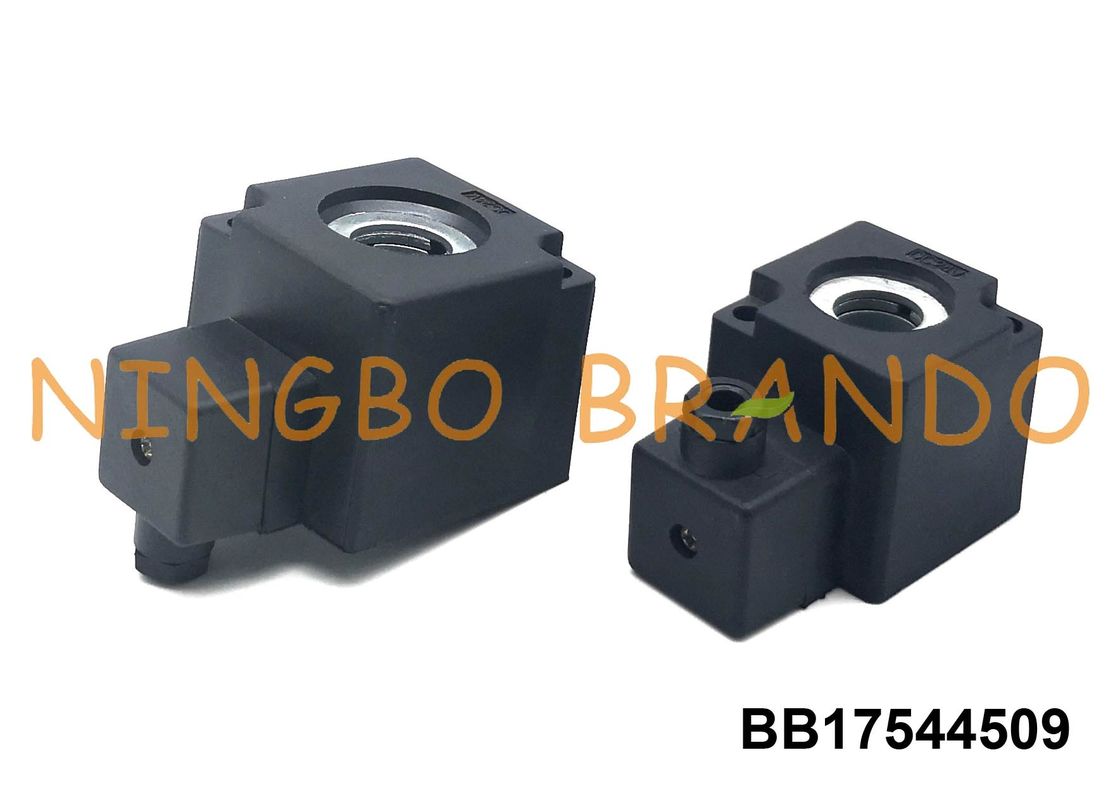

    DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm



    The structure and characteristics of the K23D-3 pilot operated solenoid valve coil, the bobbin body is composed of thermosetting resin, and a core coil winding and a terminal connection extending to one side of the bobbin provides the body of the bobbin. By providing a waterproof rib on the end face of thermosetting resin bobbin, the bobbin and package layer are well combined to form a sealing structure, thus fundamentally solving the problem of outer package layer and package of electromagnetic coil in injection molding. The problem with welding, even if there is condensed water on the surface of the coil, the condensed water cannot penetrate into the coil winding through the waterproof sealing structure rib in alternately heating and cooling the coil during use, so the coil maintains good water resistance and insulation performance.



    Technical parameter of DC24V / AC220V K23D-3 Pilot Solenoid Valve Coils:

    Model number BB17544509
    Staard voltage DC12V, DC24V, AC110V, AC220V (±10%)
    Normal power DC: 12Watt, AC: 22VA
    Material Copper, Plastic
    Wire class H, B, F
    Connection type DIN4.8
    Application Pilot Operated Pneumatic Solenoid Valve
    Hole size 17.5 mm
    Height 50.5 mm
    Width 44 mm



    Main dimension of K23D-3 Pilot Operated Pneumatic Solenoid Coils:

    DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm



    Standard stock of K23D series electric magnetic coil for you to choose:

    DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mmDC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm



    Automatic Production Display of K23D series electromagnetic coil:

    DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mmDC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm



    More details about K23D-3 Solenoid Coil in below Youtube Video:

    DC24V / AC220V K23D-3 Pilot Operated Pneumatic Solenoid Coil 17.5mm x 50.5mm x 44mm



    How to increase Q value of solenoid valve coil?

    The quality factor Q is a weight parameter reflecting the mass of the coil. Increasing the Q value of the coil is one of the important points to be paid attention to when winding the electromagnetic coil. So, how to improve the Q value of the electromagnetic coil? Let me elaborate as follows:

    Choose the wire of the coil according to the working frequency. Inductors with short working and low frequency are usually fired with insulated wire such as enameled wire. The operating frequency is higher than tens of thousands of Hz. In circuits below 2MHz, multi-strand insulated wires are used to wind electromagnetic coils, which can effectively increase the surface area of the conductor and make the Q value higher than that of single-wire wound coils with the same cross-sectional area. About 30%.



    Use high quality coil bobbins to reduce dielectric losses. In high frequency applications such as short wave, the dielectric loss is very high due to the winding of the ordinary coil. Therefore, high-frequency dielectric materials such as high-frequency ceramics, ptfe, and polystyrene should be used as the framework and wound by winding method.



    Choose a reasonable coil size to minimize damage. When winding thickness T, winding length L and outer diameter D satisfy 3T + 2L = D, the loss is also minimal. Shielded coils are optimal when L/D = 0.8-1.2.



    Choose a reasonable shield diameter. Using a guard increases the damage to the solenoid and reduces the Q value. Therefore, the shield size should not be too small. If the shielding area is too large, the volume will increase.



    Welcome to your any question and inquiry!
