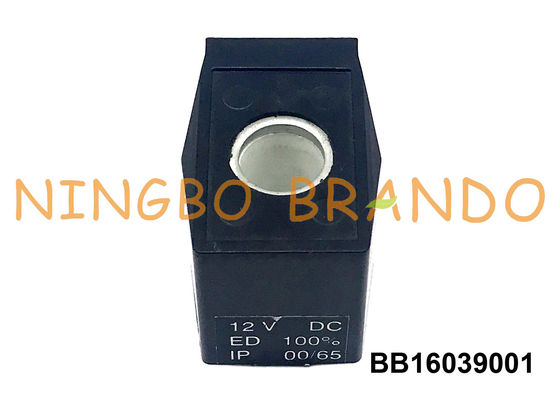

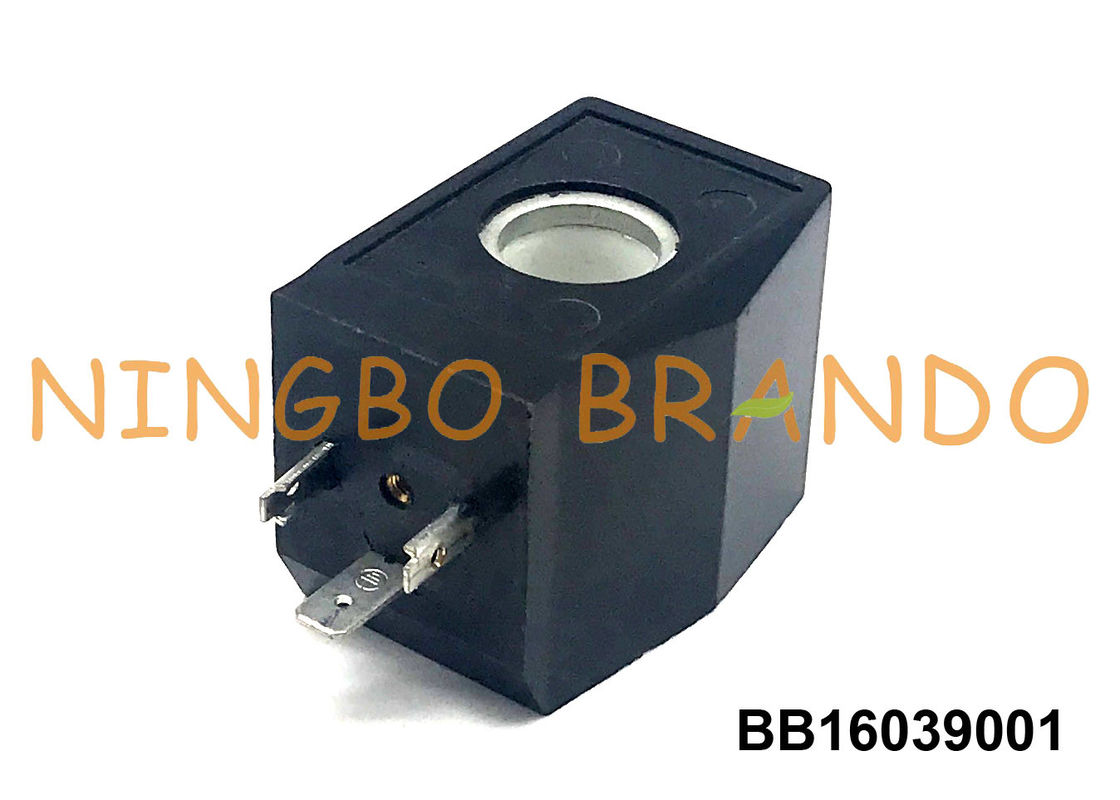

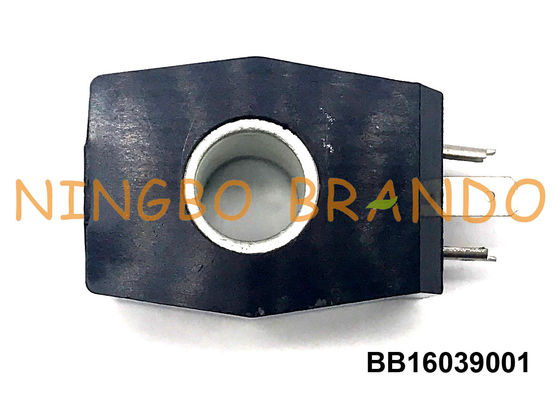

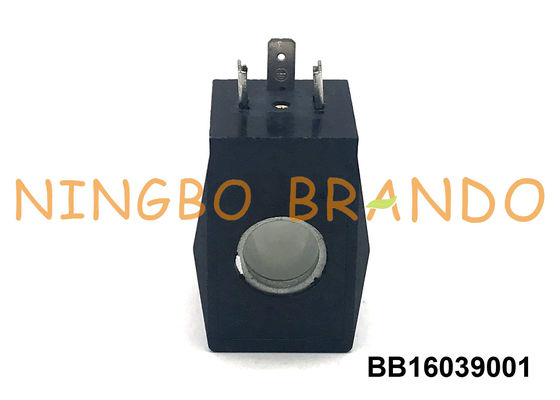

DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve

DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve

    • DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve
    • DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve
    • DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve
    • DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve
  • DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB16039001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 300000 set per month
    Contact Now
    Detailed Product Description
    Type: CKD Type Material: Plastic, Copper
    Product Name: CKD AB41-02 / AB41-03 Series Solenoid Valve Coil Voltage: DC24V, AC220V (±10%)
    Hole Diameter: 16mm Power: DC: 18Watt, AC: 26VA
    Color: Black (Other Color Can Be Customized) Application: CKD AB41-02 / AB41-03 Series Solenoid Valve
    Insulation Class: H Connection Type: DIN43650A

    DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve



    This solenoid valve coil is applied in CKD AB41-02 / AB41-03 series solenoid valves. Solenoid valve core is the sealing and sealing part of the solenoid coil, also known as the solenoid valve coil. That is to say, the injured and sealed electrical coils are sealed with insulation material, leaving only terminals, insulation, waterproof, anti-riot, fireproof, anti-corrosion, etc.



    Coil bobbin refers to the column around the enameled wire. An electromagnetic coil is a coil of enameled wire wrapped around a skeleton and molded from insulating material. The general framework material is PA, plastic, and requires insulation grade. The solenoid valve coil is equivalent. The winding of the electromagnet is then placed at the center of the solenoid valve coil to form the core. When energized, the coil generates a magnetic field to attract the core.



    Technical parameter of CKD AB41-02 / AB41-03 Series Solenoid Valve Coils:

    Model number BB16039001
    Staard voltage DC24V, AC220V (±10%)
    Normal power DC: 18Watt, AC: 26VA
    Material Copper, Plastic
    Wire class H
    Connection type DIN43650A
    Application CKD AB41-02 / AB41-03 Series Solenoid Valve
    Hole size 16 mm
    Height 39 mm
    Width 38.5 mm





    Main dimension of CKD Type AB41-02 / AB41-03 Solenoid Coils:

    DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve



    Detail enlargement of AB41-02 / AB41-03 CKD Type Electromagnetic Coil:

    DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve



    Applied in CKD AB41-02 / AB41-03 Series Water Solenoid Valve:

    DC24V / AC220V Solenoid Valve Coil For CKD AB41-02 / AB41-03 Series Solenoid Valve



    More details about CKD Type AB41-02 / AB41-03 Solenoid Coils in below Youtube Video:



    Solenoid valve assembly temperature rise and maximum temperature requirements:

    According to the heat resistance grade determined by GB/T 11021, the maximum temperature obtained by temperature rise of electromagnetic coil assembly and increase of ambient temperature shall not exceed the following table:



    Insulation class Maximum normal temperature rise (℃) Maximum temperature(℃)
    B 90 130
    F 115 155
    H 140 180
    N 160 200
    R 180 220
    Tips: Not applicable to pulsating operating coils!



    Voltage withstand test method of electromagnetic coil power frequency:

    Apply the test voltage specified in the table below between the power supply terminal and the ground terminal. The leakage current is set as 1ma, type test 1min, factory test 1s. Increase specified value by 10%) without breakdown, discharge or flashover.



    Rated voltage U(V) Power frequency withstand voltage and inter-turn voltage test voltage(V)
    U<60 ≥1000
    60≤ U<300 ≥2000
    300≤ U<600 ≥2500



    The resistance of the electromagnetic coil is measured by a dc resistance tester or a multimeter resistance file.When the ambient temperature is not 20℃, the standard resistance is calculated as follows:

    R2 = (T2 + 234.5)/(234.5 + 20) * R1



    T2 - ambient temperature in degrees Celsius

    R1 - standard resistance, i.e., resistance at 20℃

    R2 - standard resistance in current temperature, expressed in ohms (Ω).



    Welcome to your any question and inquiry!
