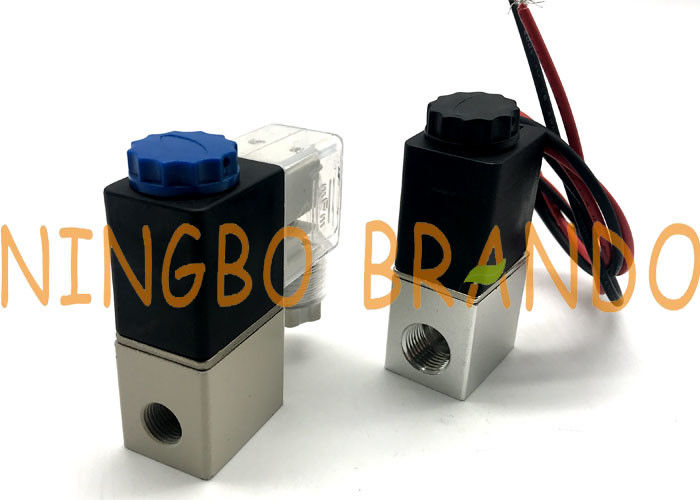

Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

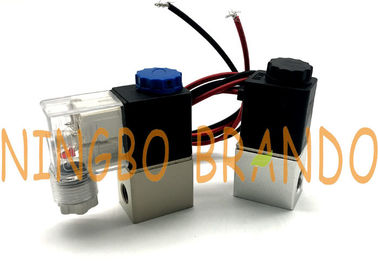

    • Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

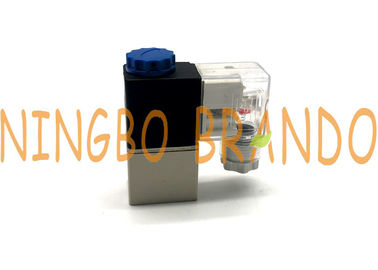

    • Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

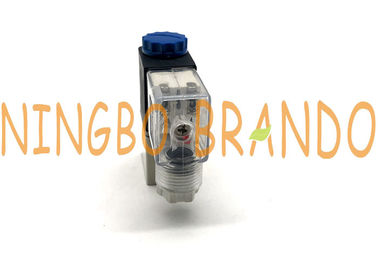

    • Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "
    • Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "
  • Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE
    Model Number: 2V025-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: BOX, CARTON, PALLET
    Delivery Time: IN STOCK
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 2000PCS PER DAY
    Contact Now
    Detailed Product Description
    Valve Type: 2 Way, Normally Closed Action: Direct Acting
    Orifice: 2.5mm Cv: 0.23
    Operating Pressure: Vacuum To 115psi Operating Temperature: -4 To 140°F (-20 To 60°C)
    Port Size: 1/4" Voltage: Options: 12, 24 VDC; 24,110/120 (50/60Hz), 220/240 VAC (50/60Hz)
    Voltage Tolerance: ±10% Of Specified Voltage Coil Power: 3 To 6.5W (pressure Dependent)

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed with Port Size 1 / 4 "



    Solenoid valve 2V025-08 features:

    1, Direct acting and normally closed type 2/2 way solenoid valve. Its high sensitivity allows it to change direction quickly.

    2, The structure  is small and compact

    3, The valve body is made of brass which is heat resistance and the coil conforms to Class B classifications. The seals are made of fluorine rubber (VITON) which is suitable for several types of working medium.



    Instruction of Ordering Code:

    2V 025 - 08

    1, 2V is sepcification code, stand for 2/2 way solenoid valve

    2, 025 stand for flow orifice: 2.5mm

    3, 08 stand for port size for connecting pipe, 08 means 1/4", 06 means 1/8"



    2V025 Two-Way Solenoid Valve Specifications:

    Valve Model 2V025-06 2V025-08
    Valve Type 2Way,Normally Closed(NC)
    Action Direct Acting(Poppet); Fast Response Time:<20msec
    Orifice(Cv) 2.5mm(0.23); 22SCFM@100psi
    Operating Pressure Vacuum to 115psi
    Operating Temperature -4 to 140°F(-20 to 60°C)
    Port Size (Tube OD) 1/8”NPT 1/4”NPT
    Wetted Surfaces

    Valve Body:Anodized Aluminum

    Seals:NBR(Buna N)

    Armature Assembly:Brass;Option:Stainless Steel

    Coil Duty F Class,IP65,100% ED(Continuous Duty)
    Voltage Options:12,24 VDC;24,110/120(50/60Hz),220/240 VAC(50/60Hz)
    Voltage Tolerance 110% of Specified voltage
    Coil Power 3to 6.5W(pressure dependent)
    Electrical Connections DIN 43650 Form A or Grommet
    Installation No Orientation Requirement(Optimum Position:Flow Horizontal & SolenoidVertical)
    Service Air,Liquid,Vacuum



    2V025 Series Solenoid Valve Components:

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

    Number Part Name Material or Specification
    A Nut M8X0.75
    B Grommet wires /
    C Encapsulated solenoid coil enamelled copper wire
    D Compression plate stainless steel
    E Screws M3X0.5X5mm
    F Armature tube assembly brass, option: stainless steel
    G Spring stainless steel
    H O-ring NBR
    I Plunger Stainless steel
    J Valve body Anodized aluminum



    Our Product 2V025-08 Advantages:

    1, High working frequency and high quality armature assembly.

    Frequency: minimum 5 time per second, working well and smart respond

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "



    2, Key important parts easily assemble or dis-assemble:

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "

    3, Adopting high quality copper wire (not aluminum wire) to make the solenoid coil:

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "



    4, Smooth valve body surface, no any bur in the inner surface or thread:

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "



    Solenoid Valve 2V025-08 Overall Dimensions:

    Airtac 2V025 Series 2V025 - 08 Aluminum Pneumatic Solenoid Valve Direct Acting Normally Closed With Port Size 1 / 4 "



    Installation & Operation of 2V025-08:

    To Connect the Valve Inlet & Outlet:
    Connect the inlet & outlet to the valve ports according to the flow direction arrow marked on the valve


    To Install the Coil:
    Put the coils on to the armature tube of the valve. Place the lock washer & nut on to the armature tube. Hand tighten the nut, then use a wrench to tighten the nut another quarter-turn.
    Do not over-tighten the nut, as it may cause the armature tube to fail prematurely.


    To Connect a DIN Coil:
    1. Remove the Philips-head screw from the plastic DIN housing & unplug it from the DIN coil
    2. From the screw opening, push the terminal block out from the plastic DIN housing.
    3. Note the “1”, “2”, and ground “⏚” symbols on the underside of the DIN enclosure.
    4. For DC DIN Coils, connect “1” to your Positive Lead & “2” to your Negative lead.
    5. For AC DIN Coils, connect “1” to your HOT lead, “2” to your Neutral lead, & “⏚” to your ground if required.


    Do not energize the coil without installing it onto the valve or connect the coil to a different voltage than specified. This will burn the coil and could create fire hazards.


    Safety Note: Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil body. The coil temperature may rise significantly if energized for extended periods—this is normal. Although the coil is made of flame-retardant material, misuse of the coil could create fire hazards & generate smoke and/or a burning odor. If these conditions are encountered, the coil temperature has risen above safe levels and the power should be disconnected immediately.


    Operation: This valve is a two-way, normally closed, direct-acting valve & does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized (left diagram), the plunger rests on the main orifice & is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger & allows the working medium to flow through the orifice. The working medium & flow direction are indicated in purple in the diagrams
