    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE
    Model Number: EVR 25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: USD10~50 Per Pc
    Packaging Details: Pvc Bag, Box, Carton, Pallet
    Delivery Time: 4 Working Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 Pcs Per Week
    Contact Now
    Detailed Product Description
    Gross Weight: 3.18 Kg Net Weight: 2.72 Kg
    Actuator System [mm]: 13.5 Mm Ambient Temperature: -40 - 80 °C
    Coil: Have Cv Value [gal/min]: 11.3 Gal/min
    Direction: Straightway Function: Normally Closed
    Inlet Connection Type: SOLDER, ODF Inlet Size [mm]: 28 Mm; 35 Mm

    Danfoss Type 032L2205 EVR 25 Solder Connection Servo Operated Solenoid Valve With Coil Assembled

    EVR is a direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR valves are supplied complete or as separate components, i.e. valve body, coil and flanges, if required, can be ordered separately.

    Feartures of EVR 25 Solenoid Valve:
    1, Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
    2, Supplied both normally closed (NC) and normally open (NO) with de-energized coil
    3, Wide choice of coils for a.c. and d.c.
    4, Suitable for all fluorinated refrigerants
    5, Designed for media temperatures up to 105°C
    6, MOPD up to 25 bar with 12 W coil
    7, Flare connections up to 5/8 in.
    8, Solder connections up to 2 1/8 in.
    9, Extended ends for soldering make installation easy. It is not necessary to dismantle the valve when soldering in.
    10, EVR are also available with flange connections

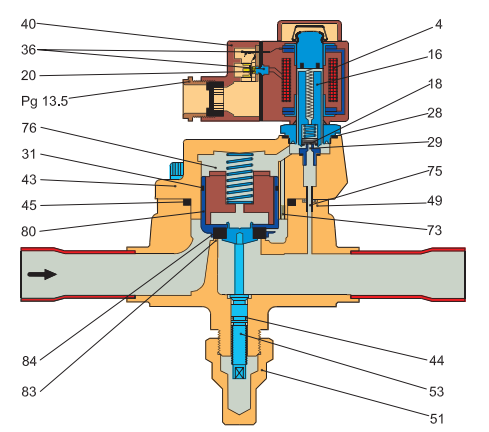

    EVR 25 Solenoid Valve Design and Function:
    Danfoss Type 032L2205 EVR 25 Solder Connection Servo Operated Solenoid Valve With Coil Assembled
    4. Coil
    16. Armature
    18. Valve plate / Pilot valve plate
    20. Earth terminal
    24. Connection for flexible steel hose
    28. Gasket
    29. Pilot orifice
    30. O-ring
    31. Piston ring
    36. DIN plug
    37. DIN socket (to DIN 43650)
    40. Protective cap/Terminal box
    43. Valve cover
    44. O-ring
    45. Valve cover gasket
    49. Valve body
    50. Gasket
    51. Threaded plug
    53. Manual operation spindle
    73. Equalization hole
    74. Main channel
    75. Pilot channel
    76. Compression spring
    80. Diaphragm/Servo piston
    83. Valve seat
    84. Main valve plate
    90. Mounting hole

    EVR 25, 32 and 40 are servo operated piston valves. The valves are closed with currentless coil. The servo piston (80) with main valve plate
    (84) closes against the valve seat (83) by means of the differential pressure between inlet and outlet side of the valve, the force of the compression spring (76) and possibly the piston weight. When current to the coil is switched on, the pilot orifice (29) opens. This relieves the
    pressure on the piston spring side of the valve. The differential pressure will then open the valve. The minimum differential pressure needed for full opening of the valves is 0.2 bar. EVR(NO)has the opposite function toEVR (NC), i.e. it is open with de-energised coil. EVR (NO) is available with servo operation only.

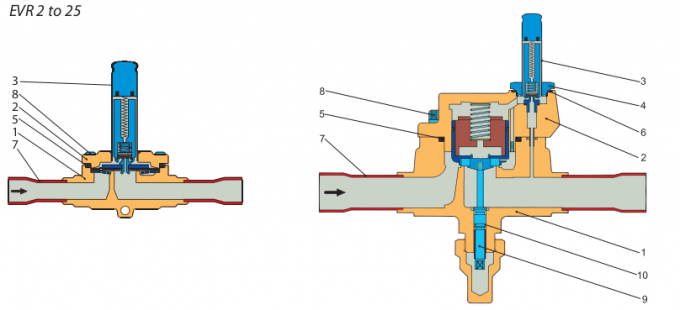

    Material Specifications of EVR 25 Solenoid Valve:
    Danfoss Type 032L2205 EVR 25 Solder Connection Servo Operated Solenoid Valve With Coil Assembled

     Solenoid valves Standard
    NoDescriptionTypeMaterialAnalysisMat.noW.noDINEN
    1Valve bodyEVR2 to 25BrassCuZn40Pb2CW617N2.040217672-112165
    2CoverEVR2 to 6Stainless steelX5CrNi18-10 1.4301 10088
    EVR10 to 22BrassCuZn40Pb2CW617N2.040217672-112165
    EVR25Cast ironEN-GJS-400-18-LTEN-JS1025  1563
    3Armature tubeEVR2 to 25Stainless steelX2CrNi19-11 1.4306 10088
    4Armature tube nutEVR25Stainless steelX8CrNis18-9 1.4305 10088
    5GasketEVR2 to 25RubberCr
    6GasketEVR25Al. gasketAl99.5 3.0255 10210
    7Solder tubeEVR25CopperSF-CuCW024A20090178712449
    8ScrewsEVR2to25Stainless steelA2-70  3506
    9Spindle for man.operatEVR25Stainless steelX8CrNis18-9 1.4305 10088
    10GasketEVR25RubberCr

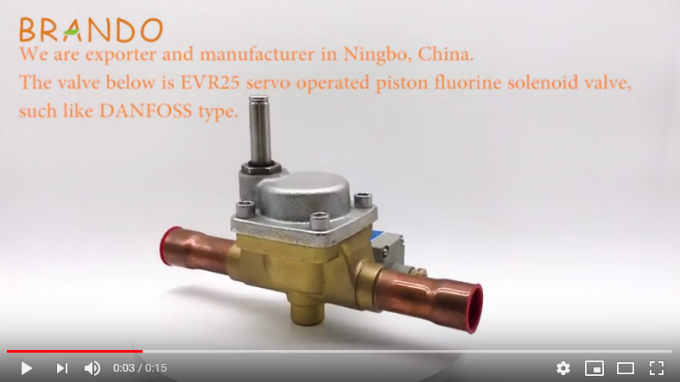

    Welcome Click Below Picture to Watch Vedio about EVR 25 Solenoid Valve that We Posted on Youtube:
    Danfoss Type 032L2205 EVR 25 Solder Connection Servo Operated Solenoid Valve With Coil Assembled
