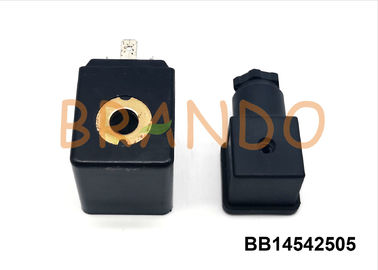

0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V

0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V

    • 0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V
    • 0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V
    • 0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V
    • 0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V
  • 0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB14542505

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 500000 set per month
    Contact Now
    Detailed Product Description
    Type: 0545 110-030 NASS Type Material: Thermoset Resin, Copper
    Product Name: 0545 110-030 NASS Type Solenoid Valve Coil System 13 Voltage: AC220V AC110V/ DC12V DC24V (±10%)
    Hole Size: 14.6 Mm Ambient Temperature: - 20 °C ~ + 50 °C
    Application: Water Solenoid Valve And Electronic Drain Valve Insulation Class: F, H
    Connection Type: DIN43650A Degree Of Protection With Connector: IP 65 (IP 67 On Request)

    0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V



    This electronic drain solenoid valve coil is commonly used in the 0546 110-030 coil of the NASS type. Here are some common questions about solneoid coils to answer for you:



    1. Question: what is the ambient temperature range for solenoid coils?



    Answer: Solenoid coils are generally suitable for temperatures between -20 and -50 degrees Celsius, but depending on the temperature level of the enamels and the temperature rise of the coils.



    2. Question: what kind of material is the solenoid valve made of?



    Answer: the general solenoid valve material is brass, but according to customer requirements, can choose stainless steel and aluminum material.



    3. Question: when the electromagnetic coil is energized, how to solve the noise?



    Answer: the origin of the problem of high noise of electromagnetic coil lies in the pilot head. The pilot head has the difference between AC and DC. The pilot assembly of AC needs to add magnetic separation ring on the static core, which can effectively control the noise problem.



    4. Question: how to choose the type of electric magnetic coil?

    Answer: you can provide the inner hole size, height, and width of the electric magnetic coil to find similar or the same electromagnetic coil.



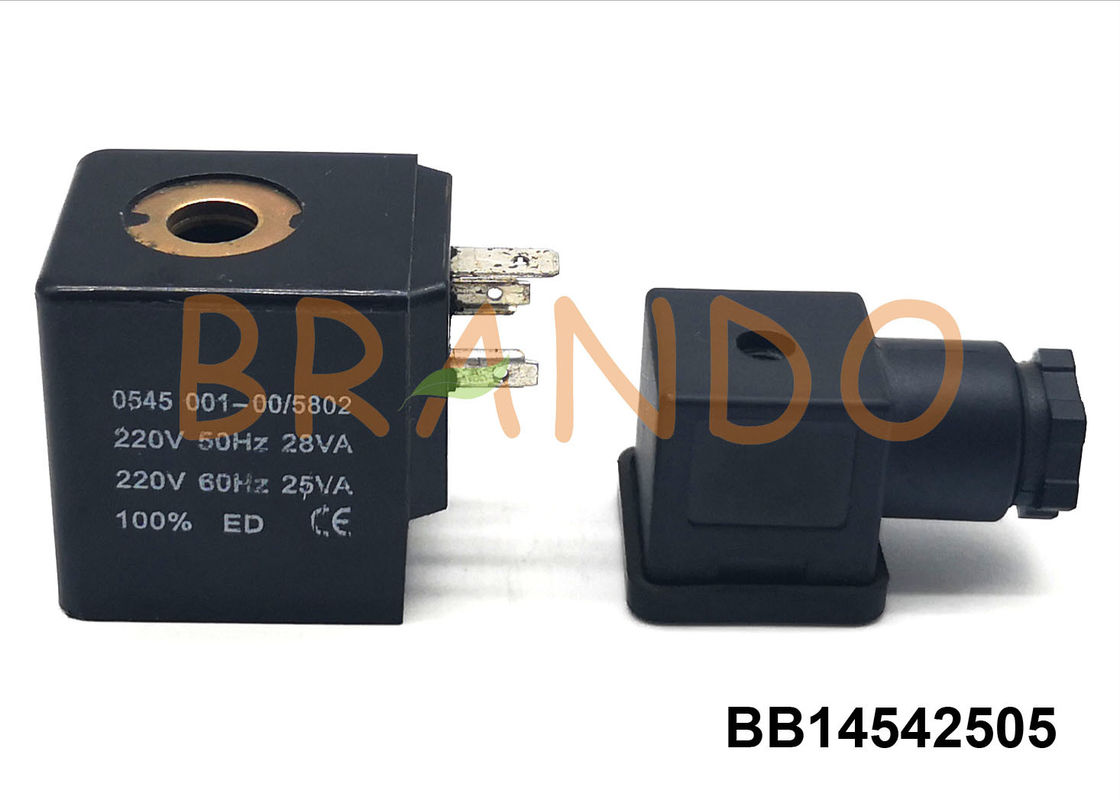

    Technical parameter of 0545 110-030 NASS Type Solenoid Valve Coil:

    Model number BB14542505
    Reference number 0545 110-030 NASS Type
    Normal voltage AC220V / AC110V/ DC12V / DC24V (±10%)
    Normal power AC: 22VA DC: 13W 20W
    Ambient temperature - 20 °C ~ + 50 °C
    Material Thermoset resin, Copper
    Wire class F, H
    Connection type DIN43650A
    Application Water solenoid valve and electronic drain valve
    Hole size 14.6 mm
    Height 42 mm
    Width 36 mm



    Main dimension of Nass Type 0545 Electronic Drain Solenoid Coils:

    0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V



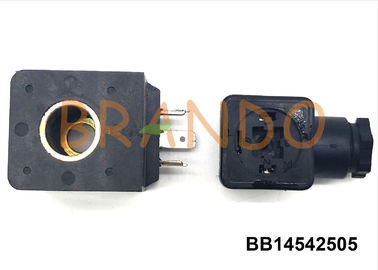

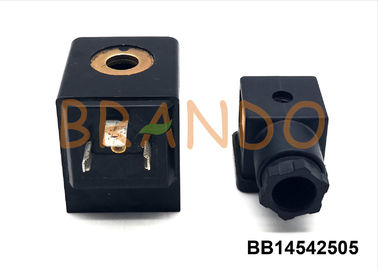

    Phyical map of 113-030-0028 nass type electromagnetic coil:

    0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V



    Applicatoin of nass type 113-030-0035 electric magnetic coil:

    0545 110-030 NASS Type Electronic Drain Solenoid Valve Coil System 13 DC24V AC220V



    More details about 0545 110-030 series Solenoid Coil can be found below the Youtube Video:


    The diameter and turns of the wire and the material of the core determine the magnetic force of the solenoid valve coil​s:

    Solenoid valve is affected by the solenoid valve coil and magnetic core, thereby generating magnetic force. So what does the magnitude of the magnetic force have to do with?



    Generally, there are many factors that affect the magnetic force of solenoid valve coil, mainly the wire diameter of the coil and the magnetic conductivity area of the steel, that is, the magnetic flux. When the ac coil is pulled directly from the core, there is no need for a short circuit ring inside the core. If the ac current is abnormal, it will burn out the solenoid valve coil. Moreover, there is a short circuit ring inside the ac coil core, which can reduce vibration. Once the dc solenoid valve coil is removed from the core, the coil current will increase rapidly.



    Because the wire diameter of the coil and the magnetic area of the magnetic steel directly affect the magnetic force of the solenoid valve coil, the dc coil can be removed from the core and move freely. The ac solenoid valve coil can not be pulled out from the iron core, once pulled out, will cause a surge in the coil current, seriously burned the coil. In addition, there is no need for any short circuit ring inside the dc coil core.



    Solenoid valve coil magnetic force size, to a certain extent, determines whether the solenoid valve can operate normally. If the magnetic force is too large, the solenoid valve cannot operate. If the magnetic force is too small, the solenoid valve is not operational. The best way is to control solenoid valve coil magnetic force properly.​

    Welcome to your any question and inquiry!
