    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE
    Model Number: EVRA 40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: negotiation
    Packaging Details: Sealed PVC bag, inner box, carton, pallet
    Delivery Time: 3 Working Days
    Supply Ability: 5000pcs Per Month
    Contact Now
    Detailed Product Description
    Refrigerants: R717 (NH3) Ammonia And Fluorinated Refrigerants Ambient Temperature: -40 - 80 °C
    Body Material: Cast Iron Coil: BB-Clip On Or BE/BF-Clip On Or BG-Clip On
    Connection Material: Steel Cv Value [gal/min: 1
    Flow Direction Indicator: Embossed 1-way Arrow Function: Normally Closed
    Inlet Connection Type: Butt Weld Valve Operation: SERVO-PISTON

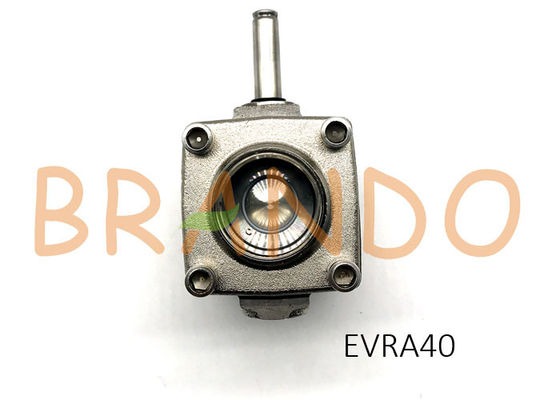

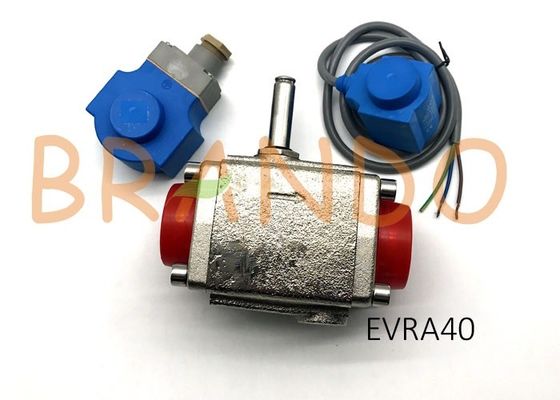

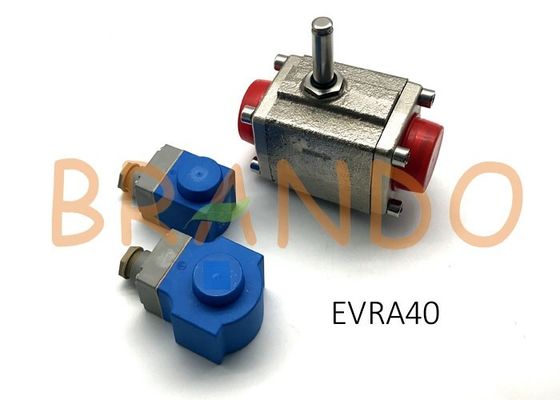

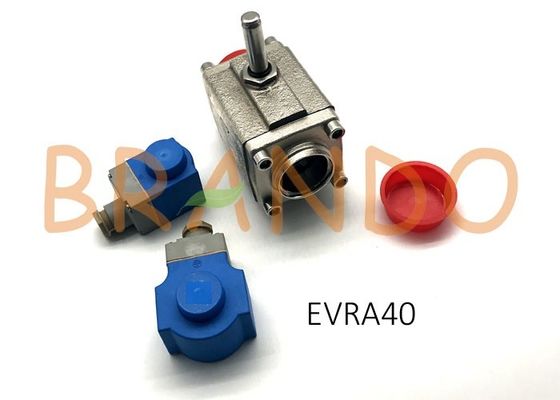

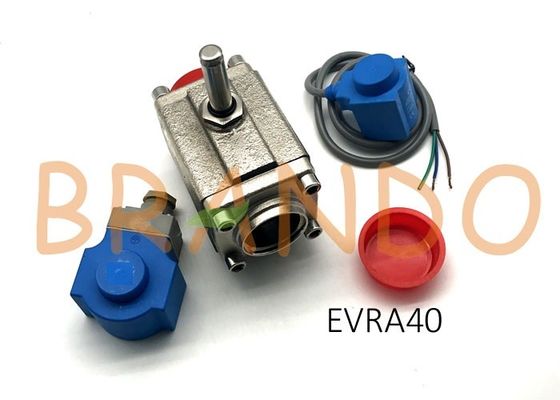

    042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections



    EVRA40 solenoid valve is designed mainly for ammonia refrigerants, it is supplied complete or as separate components, i.e. valve body, coil and
    flanges can be ordered separately.



    Technical data:

    Refrigerants:Applicable to HCFC, HFC and R717 (Ammonia).

    Temperature of medium:

    −40 → +105°C.

    Max. 130°C during defrosting.

    Type Opening differential pressure
    with standard coil ( ∆p bar)

    Temperature
    of medium

    °C

    Max. working
    pressure

    kv-value

    1)

    Min. Max. (= MOPD) liquid 2)
    10 W a.c. 12 W a.c. 20 W d.c.
    EVRA 40 0.20 21 25 14 –40 → 105 42 25

    1) The kv value is the water flow in m3/h at a pressure drop across valve of 1 bar, ρ = 1000 kg/m3.

    2) MOPD for media in gas form is approx. 1 bar greater.


    EVRA 32 and EVRA 40 Design Function:

    042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections

    4. Coil
    16. Armature
    18. Valve plate / Pilot valve plate
    20. Earth terminal
    24. Connection for flexible steel
    hose
    28. Gasket
    29. Pilot orifice
    30. O-ring

    31. Piston ring
    36. DIN plug
    40. Terminal box
    43. Valve cover
    44. O-ring
    45. Valve cover gasket
    48. Flange gasket
    49. Valve body
    51. Cover / Threaded plug
    53. Manual operation spindle
    59. Strainer
    73. Equalization hole
    74. Main channel
    75. Pilot channel
    76. Compression spring
    80. Diaphragm/Servo piston
    82. Support washer
    83. Valve seat
    84. Main valve plate



    EVRA 25, 32 and 40 are servo operated piston valves. The valves are closed with currentless coil. The servo piston (80) with main valve plate (84) closes against the valve seat (83) by means of the differential pressure between inlet and outlet side of the valve, the force of the compression spring (76) and possibly the piston weight. When current to the coil is switched on, the pilot orifice (29) opens. This relieves the pressure on the piston spring side of the valve. The differential pressure will then open the valve. The minimum differential pressure needed for full opening of the valves is 0.2 bar.



    Material specification of 042H1142 EVR40A Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve:

    042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections





    No. Description Solenoid Valves Material Analysis ISO EN
    1 Valve body EVRA 25/32/40 Cast-iron GJS-400-18-LT   1563
    2 Armature tube nut EVRA 25/32/40 Stainless Steel X8CrNiS 18-9   10088
    3 Armature tube EVRA 25/32/40 Stainless Steel X2CrNi19-11   10088
    4 Flange EVRA 25 Steel S235JRG2   10025
    EVRA 32/40 Steel P285QH   10222-4
    5 Gasket EVRA 25/32/40 Aluminium Al99.5   10210
    6 Gasket EVRA 25 asbestos-free
    EVRA 32/40 Rubber Cr
    7 Cover/thread plug EVRA 25 Free-cutting steel 11SMnPb30   10277-3
    EVRA 32/40 Stainless Steel X5CrNi17-10   1088
    8 Gasket EVRA 25 Rubber Cr
    9 Bolts EVRA 25 Stainless Steel A2-70 3506
    10 Cover EVRA 25 Cast-iron GJS-400-18-LT   1563
    11 Bolts EVRA 25/32/40 Stainless Steel A2-70 3506
    12 Valve Seat EVRA 25 Teflon(PTFE)



    Dimensions of EVRA40 Ammonia Solenoid Valve:

    042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections



    You also could click below picture to watch EVRA40 solenoid valve vedio that we posted on Youtube:

    042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections



    We also manufacturer other types solenoid valve, welcome your any enquiry. Customized is also available, welcome your drawing or sample:



    042H1142 EVRA 40 Ammonia Refrigerants Servo Operated Piston Refrigeration Solenoid Valve With Butt Weld Connections
