Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V

Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V

    • Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V
    • Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V
    • Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V
    • Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V
  • Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB13043046

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 500000 set per month
    Contact Now
    Detailed Product Description
    Type: Solenoid Coil Material: BMC, Brass
    Product Name: Best Nr.0210B Refrigeration Solenoid Coil Voltage: AC: 24V, 36V, 110V, 220V; DC: 12V, 24V
    Hole Size: 13 Mm Power: DC: 10W 6.8W
    Color: Black (Other Color Can Be Customized) Application: Refrigeration Solenoid Valve Automatic Control
    Insulation Class: H Connection Type: DIN43650A

    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V



    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm is an solenoid coil widely used on a refrigeration solenoid valve. The movable iron core in the solenoid coil is attracted by the solenoid coil when the refrigeration solenoid valve is energized, and the spool is moved to change the refrigeration solenoid valve on state.



    The principle of Best Nr.0210B Refrigeration Solenoid Coil:

    It is established by the existence of magnetic field around the wire, and it is wound into a spiral to strengthen the magnetic field, that is, the minimum magnetic field is used to achieve the highest magnetic field strength. The wire with a layer of insulating varnish on the surface is used instead of the ordinary wire. save space. The inductance of an air-core coil is different from the inductance of the core after the core is added. The former is small and the latter is large. When the coil is connected to alternating current, the impedance generated by the coil is different. When the AC power of the same frequency is added, the inductance will vary with the position of the core, that is, the impedance changes with the position of the core. When the impedance is small, the current flowing through the coil will increase.



    Technical parameter of Best Nr.0210B refrigeration solenoid coil:

    Model number BB13043046
    Reference number Best Nr.0210B
    Normal voltage AC: 24V, 36V, 110V, 220V; DC: 12V, 24V
    Normal power AC: 16VA 18VA 30VA 35VA DC: 10W 6.8W
    Material BMC, Brass
    Wire class H, F
    Connection type DIN43650A
    Application Refrigeration Solenoid Valve Automatic Control
    Weight 253.5 g
    Hole size 13 mm
    Height 43 mm
    Width 39.5 mm



    Main dimension of 13mm x 40mm best nr.210b electromagnetic coil:

    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V

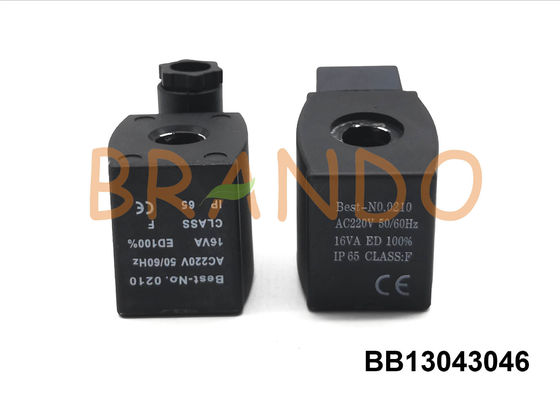

    Detail enlargement of DIN43560A Best type 210B electric magnetic coil:

    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V

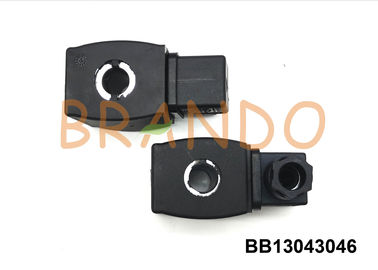

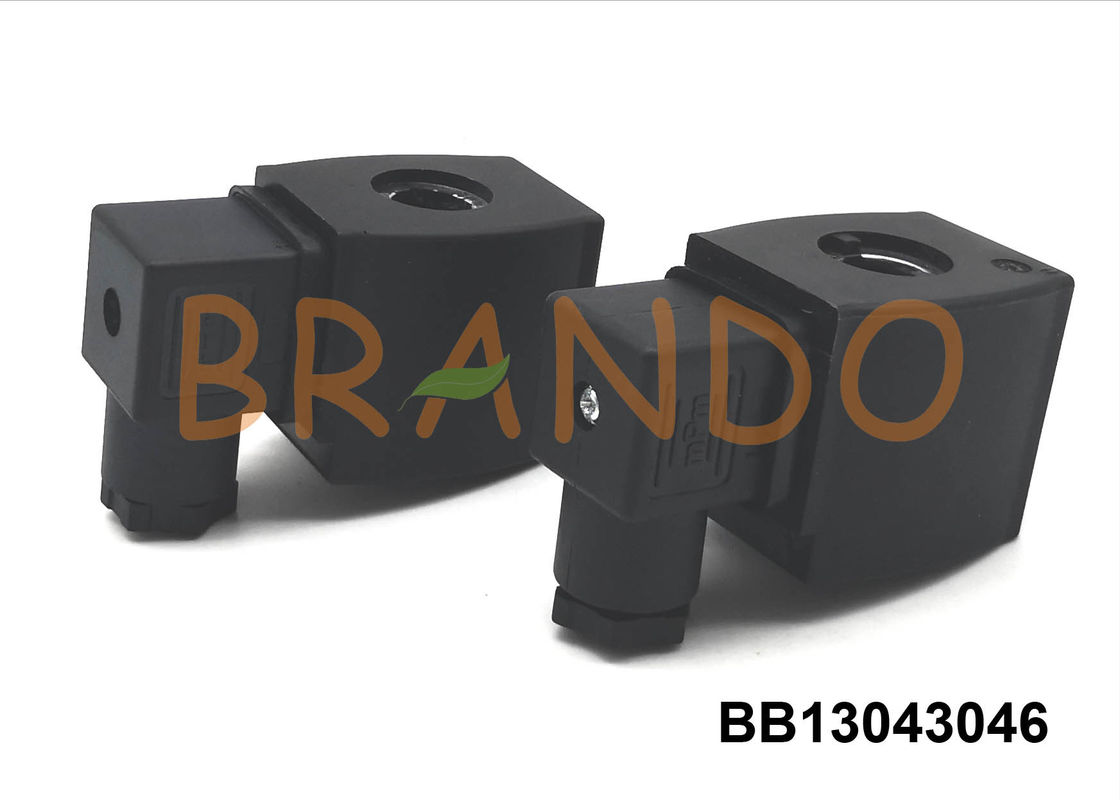

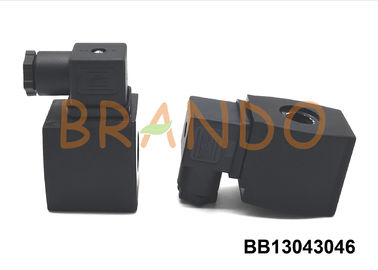

    Physical map of AC220V / DC4V Best Nr. 210B solenoid valve coil:

    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24VBest Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V

    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24VBest Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V



    More details about Best Nr.0210B Solenoid Coil can be found below the Youtube Video:

    Best Nr.0210B Refrigeration Solenoid Coil 13 mm x 40 mm DIN43560A AC220V / DC24V



    Solenoid valve coil transportation process precautions:

    Our company has regular workshops and advanced production equipment, professional mold design and production staff, we mainly produce: electromagnetic coils, pilot head components, solenoid valves and so on.



    Solenoid valve coil transportation process needs to pay attention to many problems, which is also the reason for the loss of many manufacturers. In the transportation, there is no timely control of transportation details, resulting in excessive loss of products during transportation, and the market value will be affected. The solenoid valve coil transportation process needs to pay attention to the problems, the following is a detailed introduction for everyone:



    Protection work: transporting solenoid valve coil products pay attention to the protection work. Due to the uncertainty of transportation weather, the weather has an important impact on product performance, and even directly causes the product to be scrapped. If mass transportation is carried out, it will cause many economic losses. The development of the manufacturer is very unfavorable, so it is very important to do the necessary protection work during transportation, which can guarantee the quality of the product.



    Stacking treatment: Solenoid valve coil transportation needs to pay attention to the stacking problem. Many manufacturers will load too many products on the vehicle in order to save transportation costs. This stacking treatment has great safety hazards and will affect the product performance at the same time. In the event of an emergency, it is difficult for the driver to take emergency braking, which will result in a traffic safety accident.



    The electromagnetic coils produced by our company will take relevant protective measures and will not stack them at random to ensure that they receive good and high quality electromagnetic coils.
