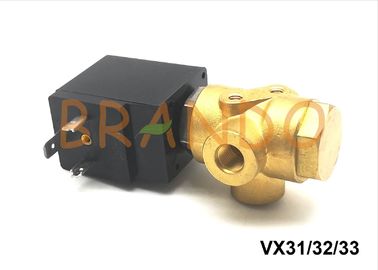

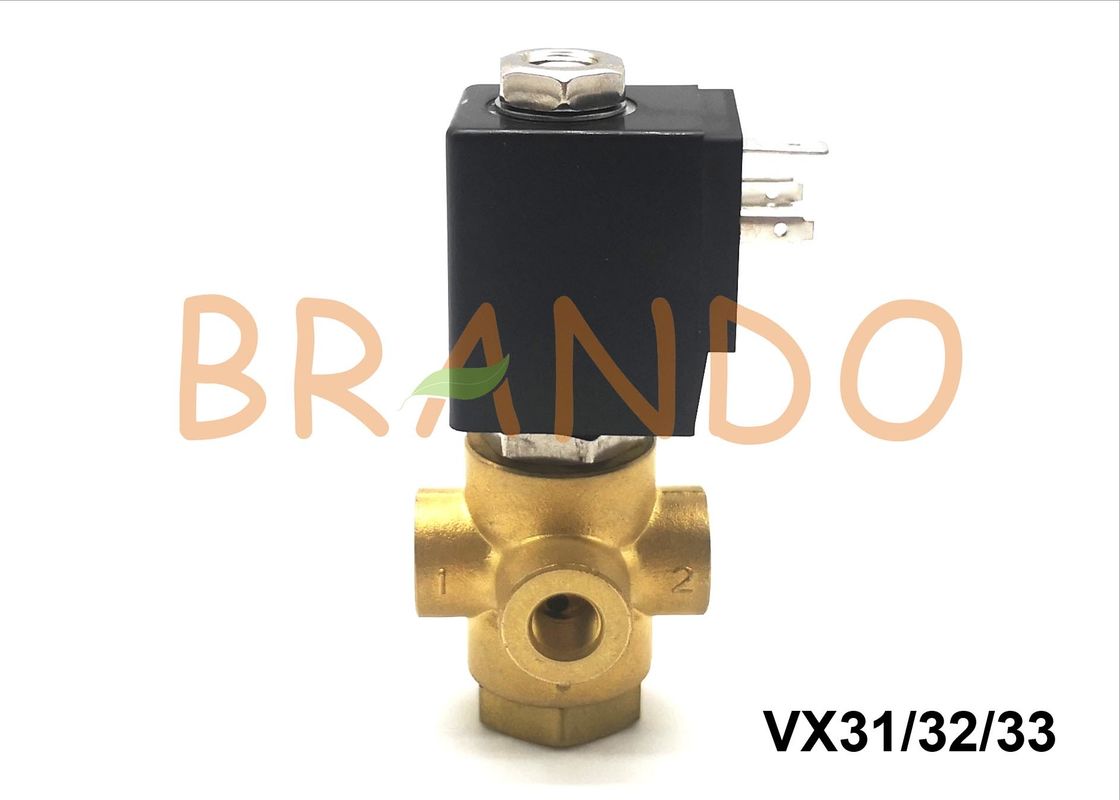

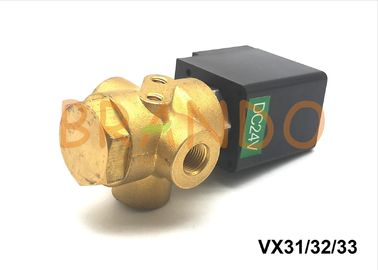

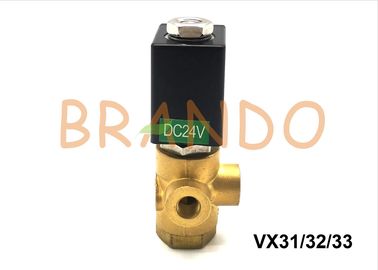

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

    • 24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
    • 24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
    • 24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
    • 24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
  • 24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE
    Model Number: VX31

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: negotiation
    Packaging Details: PVC BAG, BOX, CARTON, PALLET
    Delivery Time: 7 TO 10 WORKING DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 150000 PCS PER MONTH
    Contact Now
    Detailed Product Description
    Valve: Normally Closed , Normally Open , Common Solenoid Coil: Class B , Class H
    Rated Voltage: 110V AC , 220 V AC , 24 V DC , 12 V DC Body Material: C37 Brass , Stainless Steel
    Seal Options: NBR , FKM , EPDM , PTFE , FFKM Electrial Entry: Grommet , Conduit , DIN Terminal , Conduit Terminal
    Orifice Diameter: 1.5mm , 2mm , 2.5mm , 3mm , 4mm Vlave Construction: Direct Operated Poppet
    Enclosure: Dusttight , Low Jetproof , Equivalent To IP65 Environment: Location Without Corrosive Or Explosive Gases

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air , Water , Oil , Steam



    ●VX31/32/33 3 Way Solenoid Valve /3 Way Solenoid Valve 1/8" /3 Way Solenoid Valve 1/4" /3 Way Solenoid Valve 12v /3

    Way Solenoid Valve 24v

    ●Medium: Water;;Air ;Neutral Gas;Air;Steam

    ●Acting Type: Direct Acting

    ●Seal Material: EPDM;VITON -5∽150℃ ;NBR-5∽80℃

    ●Port Size :1/8";1/4", ZG ,PT, NPT are available



    VX31 / VX32 / VX33 Direct Operated 3 Way Solenoid Valve Symbol:

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water



    VX31 / VX32 / VX33 Direct Operated 3 Way Solenoid Valve Ordering Code:

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

    VX31 / VX32 / VX33 Solenoid Operated Valve Feature:

    1, Equal to SMC VX31 Series solenoid operated valve

    2, Conformity managed in accordance with standards:

    ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.



    3 Way Solenoid Valve Specification:

    Solenoid

    Model

    Orifice

    Size

    Cv

    Value

    Port

    Size

    Working Pressure(Kgs/c㎡)

    Medium

    Temperature

    Body

    Material

    AC DC
    VX31 1.5 0.07



    1/4" Or 1/8"

    13 11



    NBR:-5∽85℃

    EPDM:-5∽150℃

    VITON:-10∽150℃



    BRASS

    2.0 0.14 11 9
    2.5 0.21 9 7
    3.0 0.25 6 4
    4.0 0.35 3.5 2
    VX32 1.5 0.07 13 11
    2.0 0.14 11 9
    2.5 0.21 9 7
    3.0 0.25 6 4
    4.0 0.35 3.5 2
    VX33 1.5 0.07 7 5
    2.0 0.14 5 4
    2.5 0.21 4 3
    3.0 0.25 2.5 2
    4.0 0.35 1.7 0.8


    Valve Body Inner Detail of VX31 / VX32/ VX33 Solenoid Valve and Dimensions:

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water



    VX31 / VX32 / VX33 Direct Operated Three Way Solenoid Valve Design Features:

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

    Part Number Description
    A Improved corrosion resistance, special magnetic material adopted
    B Reduced power consumption
    C Encosure Equivalent to IP65
    D Flame resistance UL94V-0 conformed, flame resistance mold coil material
    E Low-noise construction, special construction enables to reduce the metal noise
    F Improved maintenance performance, Maintenanace is performed easily due to the threaded assemly



    For more angle to view the solenoid valve, you can click below picture to take a look on Youtube websited that we posted:

    24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water



    Welcome your any question, just mail us or call us, we will response at once.
