ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves

ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves

    • ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves
    • ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves
    • ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves
    • ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves
  • ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB13239027

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 500000 set per month
    Contact Now
    Detailed Product Description
    Application: 21A/21IH/21T/21M/21X/21W/21YW/21Z/21D-K/4743/31L/31A Solenoid Valve Type: Solenoid Coil
    Material: BMC, Brass Product Name: ODE Type BDA/BDV Solenoid Coil 30 Mm X φ13 Mm
    Voltage: AC220V DC24V Hole Size: 13 Mm
    Power: AC: 16VA DC: 12W Color: Black(Other Color Can Be Customized)
    Insulation Class: F, H Connection Type: DIN43650A

    ODE Type BDA/BDV Solenoid Coil 30 mm x φ13 mm For AC220V/DC24V 21/31 Solenoid Valves



    Although the ODE Type BDA/BDV Solenoid Coil is a very compact device, the device is still composed of a plurality of different structural parts, and it is required to meet certain requirements in each structural part. In terms of the outer casing structure of the ODE Type BDA/BDV Solenoid Coil, it is necessary to meet the following requirements before it can be applied:


    1. Good insulation: Because the outer casing structure part of the solenoid valve coil needs to protect the internal structural part well, it is also necessary to protect the electric power of the internal passing wiring from leaking. Therefore, for this structural part of the outer casing, it is highly desirable to meet the requirement of good insulation.


    2. Excellent material: Whether it is from the protection function of the outer casing structure of the solenoid valve coil when it is applied, or from the insulation performance of the solenoid valve coil, it is required to meet the requirements of excellent material quality in this structural part. Will have a good guarantee.


    3. Stable structure: In order to ensure that the outer casing structure of the solenoid valve coil can protect the internal device well when it is applied, and the long-term application of the coil, it is necessary to be able to conform to the structural stability in this structural part.



    The solenoid coils we produce meet the above three conditions, just to ensure that the price-proven and quality-assured coils are available to you.



    Technical parameter of ODE Type BDA/BDV Solenoid Coils 30mm x φ13mm:

    Model number BB13239027
    Reference number BDA/BDV
    Normal voltage AC220V, DC24V
    Normal power AC: 16VA, DC: 12W
    Insulation class F, H
    Connection type DIN43650A
    Application 21A/21IH/21T/21M/21X/21W/21YW/21Z/21D-K/4743/31L/31A Solenoid Valve
    Weight 153 g
    Hole size 13 mm
    Height 39 mm
    Width 30 mm



    Main dimenison of ODE Type DIN43650A 21/31 Solenoid Valve Coils:

    ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves

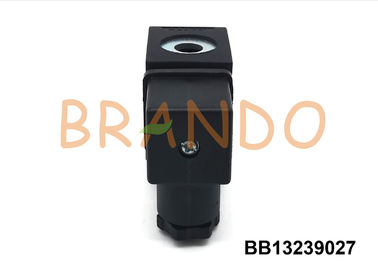

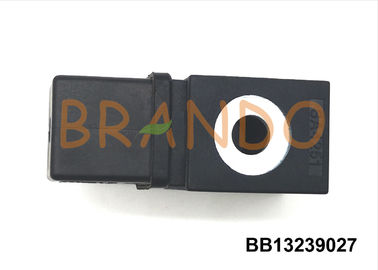

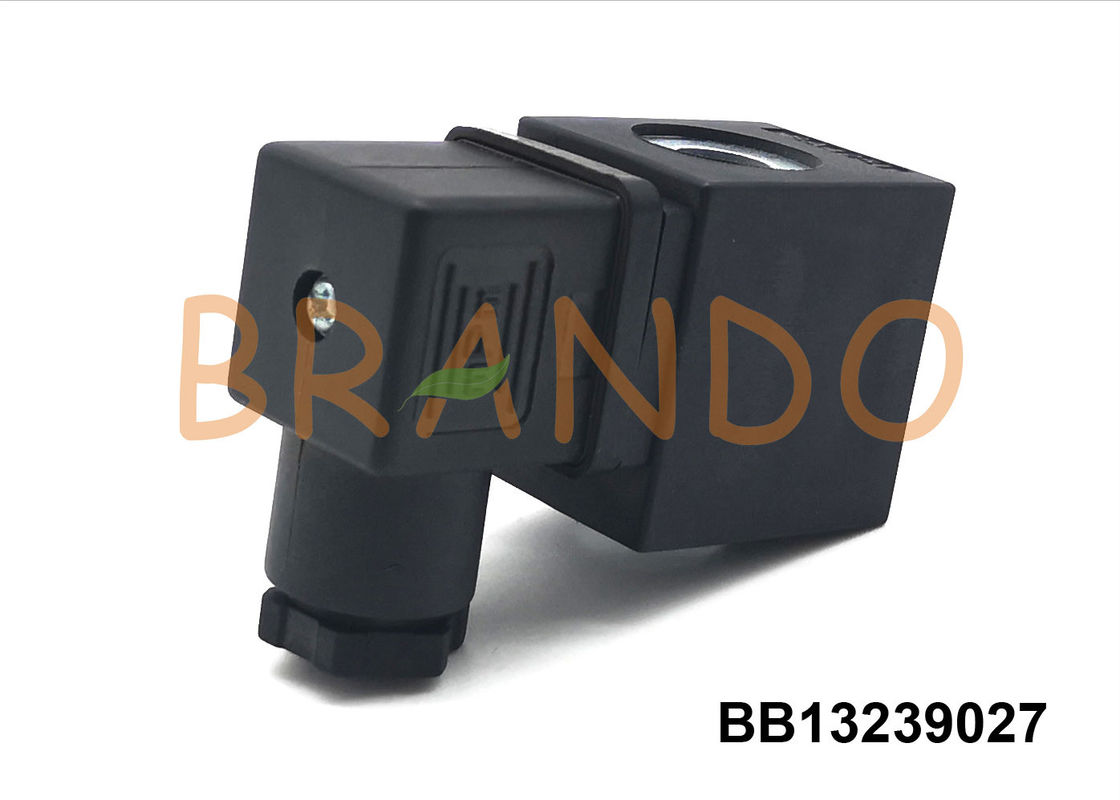

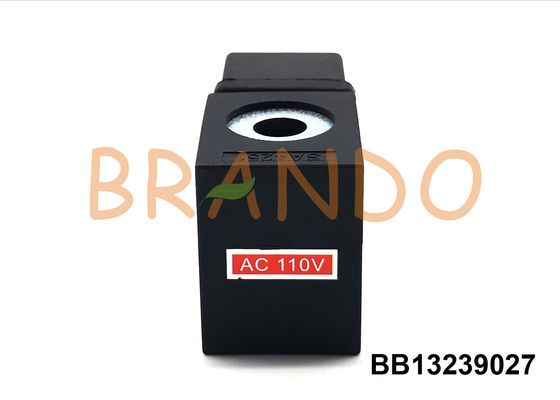

    Detailed pictures of AC220V/DC24V BDA/BDV Electromagnetic Coils:

    ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid ValvesODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves



    Applied in 21A/21IH/21T/21M/21X/21W/21YW/21Z/21D-K/4743/31L/31A Solenoid Valve:

    ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid ValvesODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves



    More details about BDA/BDV Solenoid Coil can be found below the Youtube video:

    ODE Type BDA / BDV Solenoid Coil 30 mm x φ13 mm For AC220V / DC24V 21 / 31 Solenoid Valves



    How to ensure the long life of the ODE Type BDA/BDV Solenoid Coil:

    If you use the electromagnetic coil, the coil can achieve very long-term application, then for your own interests, it must be a good guarantee. To achieve long-term application of the coil, you need to do the following to effectively extend the use of the coil:


    First, try to choose a good quality coil: a very good quality electromagnetic coil can achieve long-term application, which is everyone knows. This requires everyone to ensure that they buy a very good quality coil, in order to extend the use of the coil.


    Second, to keep the various structural parts of the coil clean: external cleanliness, can reduce some corrosive substances, damage to the structure of the electromagnetic coil, while the internal cleanliness can avoid the normal suction of the iron core, and avoid Excessive current causes unnecessary damage to the coil. In this way, it is necessary to pay attention to the cleanliness of the various structural parts of the moisturizing coil when using the coil, so that the use of the coil can be well extended.



    In addition, it is necessary to pay attention to the correct use and operation of the solenoid valve, in order to avoid unnecessary damage to the coil by virtue of the use of the entire solenoid valve device, so that it can naturally be used for a very long time.
