12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type

12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type

    • 12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type
    • 12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type
    • 12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type
    • 12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type
  • 12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB13336518

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1-$2 per set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 500000 set per month
    Contact Now
    Detailed Product Description
    Type: Reducer Solenoid Coil Material: BMC, Brass
    Product Name: LPG Pressure Reducer Solenoid Coil Voltage: DC12V (Other Can Be Customized)
    Hole Size: 13 Mm Power: DC: 17W
    Color: Black (Other Color Can Be Customized) Application: RGJ/RME MVAT3579/MVAT3755 Lovato/Tomasetto Type LPG Autogas Reducer Repair Kit
    Insulation Class: H Connection Type: DEUTCH

    12VDC RGJ/RME MVAT3579/MVAT3755 Lovato/Tomasetto Type LPG Reducer Solenoid Coil



    The solenoid valve of the car includes a solenoid valve coil, which occupies this important position in the entire device, and the coil device as a whole cannot work. The development of automotive solenoid valves is relatively late, the main reason is the problem of coils. People have applied electromagnetic properties earlier, but when they started to study the coils suitable for solenoid valves, they could not find a suitable coil to carry out the work of energization.



    Now with the continuous development of technology, automotive solenoid valves are also constantly developing. In order to make the development of automotive solenoid valves faster, the first is the development of solenoid valve coils. Only the technical development of this coil can better promote the development of automotive solenoid valves. The operation of this equipment is relatively simple, and it can work directly by directly energizing the side.



    Technical parameter of Lovato Type LPG Reducer Solenoid Valve Coils:

    Model number BB13336518
    Normal voltage DC12V (Other can be customized)
    Normal power DC:17W
    Insulation class H
    Connection type DEUTCH
    Application

    RGJ/RME LovatoType LPG Reducer Repair Kit

    MVAT3579/MVAT3755 Tomasetto Lpg Reducer Accessories

    Weight 122.5 g
    Hole size 13 mm
    Height 36.5 mm
    Width 32 mm



    Temperature rise and maximum temperature requirements of solenoid coil:

    Insulation class Maximum normal temperature rise (℃) Maximum temperature(℃)
    B 90 130
    F 115 155
    H 140 180
    N 160 200
    R 180 220
    Tips: Not applicable to pulsating operating coils!



    Main dimension of RGJ/RME Autogas Reducer Repair Kit Electric Magnetic Coils:

    12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type

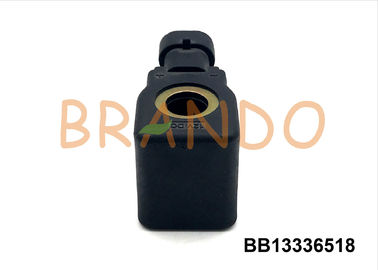

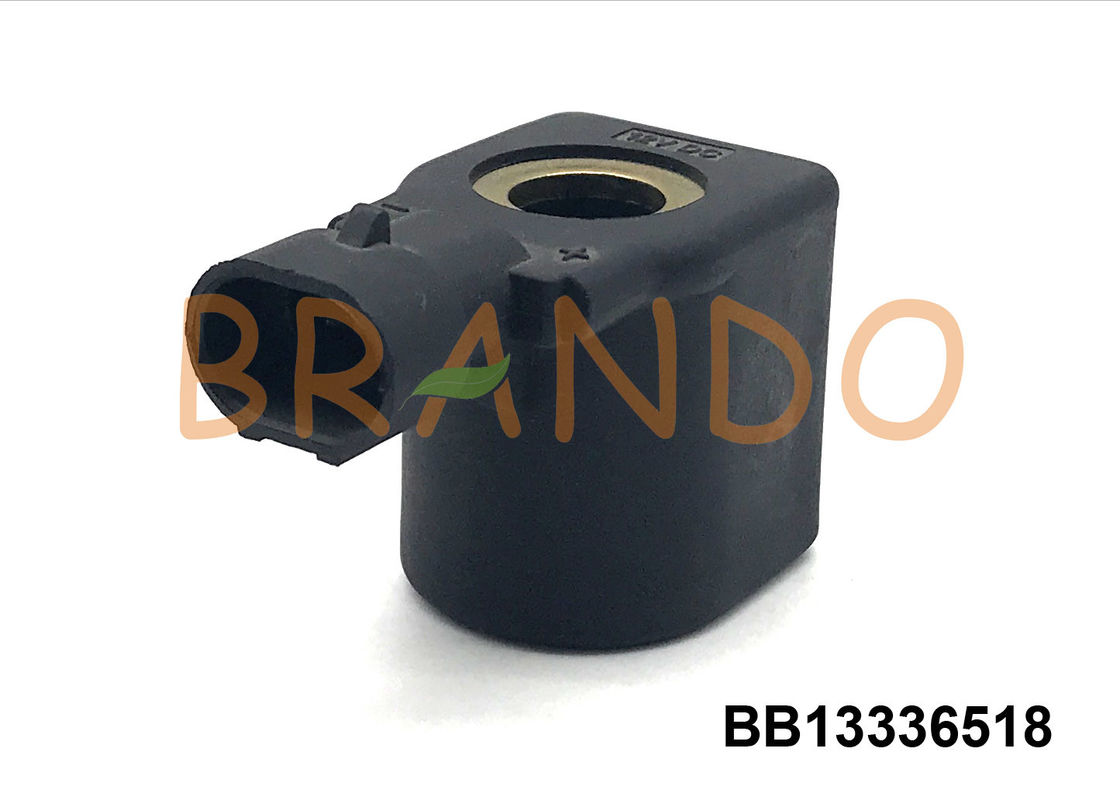

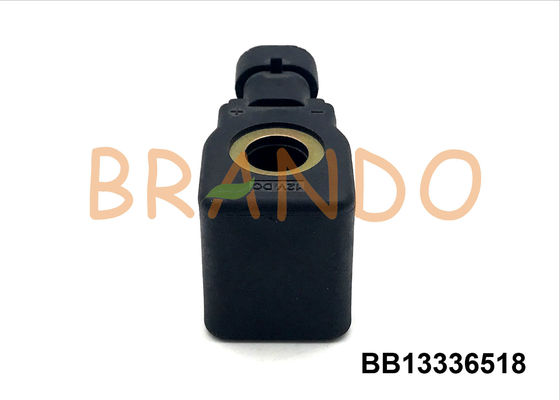

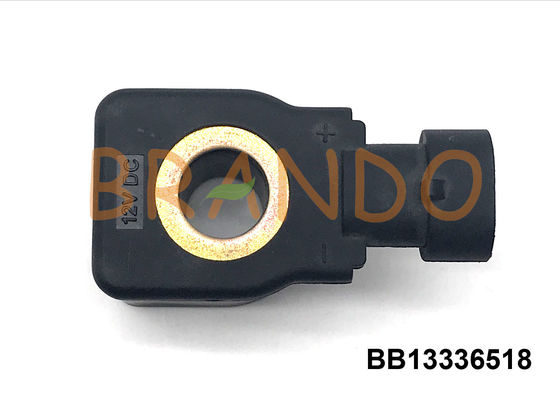

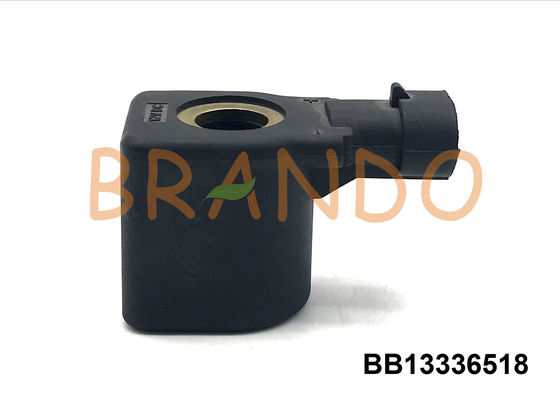

    Physical map of LPG MVAT3579/MVAT3755 Tomasetto reducer electromagnetic coils:

    12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type



    Application of DC12V LPG Autogas Reducer Conversion Kit Solenoid Coil:

    12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type



    More details about Lovato type RGJ / RME reducer solenoid coils can be found below the Youtube video:

    12VDC LPG Reducer Solenoid Coil RGJ / RME MVAT3579 / MVAT3755 Lovato / Tomasetto Type



    Notes on the use of solenoid valve coil:
    1. When the coil is energized, it is strictly forbidden to cover to prevent overheating and burning;


    2, electromagnetic coil, socket, electromagnet and connecting parts, it is strictly prohibited to hit the collision to avoid damage;


    3. When the coil is energized for normal operation, due to its own heat, the temperature is high, please do not touch it;


    4. The working pressure, temperature and viscosity of the medium shall not exceed the specified range;


    5. The actual power supply voltage must not exceed the specified range;


    6. Ordinary solenoid valve coils should not be used in explosive places;


    7. The internal parts of the solenoid valve and the filtering device must be cleaned regularly;


    8. Check the model and parameters on the valve label, which must meet the technical requirements of the site;


    9. Check the coil, electromagnet and electrical socket to ensure no external damage;


    10. When the solenoid valve coil is not used for a while, it can be stored in the room where 0 °C - 40 °C, relative humidity <80%, and no corrosive gas, no open storage is allowed;


    11. When the electromagnetic valve is installed in the open air, a protective cover must be installed to ensure performance and extend the service life;


    12, AC solenoid valve coils must not be energized with no load, otherwise there is a danger of burning;


    13. The best installation method of the solenoid valve is perpendicular to the horizontal pipe, the coil is upward, and the maximum inclination angle is <30° during installation. Otherwise, normal use cannot be guaranteed;


    14. Clean and purify the pipeline. The working medium of the solenoid valve should be clean. If the medium contains particulate impurities, a filter device must be installed on the pipeline before the valve;


    15. Connect the valve's interface to the pipe according to the direction indicated by the arrow on the valve body, and ensure that the joint is well sealed.
