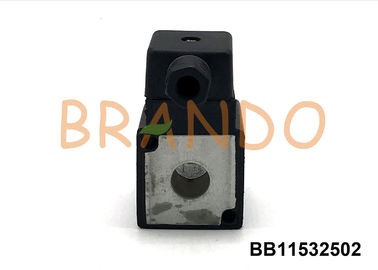

K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter

K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter

  • K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter
  • K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter
  • K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter
  • K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter
K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter
Product Details:
Place of Origin: China Ningbo
Brand Name: Brando
Certification: CE
Model Number: BB11532502
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 450000 set per month
Contact Now
Detailed Product Description
Type: Pneumatic Solenoid Valve Coil Material: Plastic, Brass
Product Name: K23D/K25D/K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil Normal Voltage: DC12V/DC24V/AC110V/AC220V
Internal Diameter: 11 Mm Power: AC:10VA DC:7W, 12W
Reference Number: K23D-1.2T Application: K23D/K25D/K35D 3/2 Way Micro Pneumatic Solenoid Valve
Insulation Class: B, F Connection Type: DIN4.8
High Light:

Electric Solenoid Coil

,

Magnetic Solenoid Coil

,

Coil For Solenoid Valve

K23D-1.2T/K25D/K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter



A solenoid coil electromagnet is an electromagnet capable of generating a magnetic force under energized conditions. What is the fundamental difference between such a solenoid coil electromagnet relative to a permanent magnet?

The permanent magnets are magnetic under normal conditions, and the electromagnets need to be magnetic under the condition of being energized. The advantage of the permanent magnets is that they are magnetic when they are not energized, and can be processed in some products due to process requirements. A location where the magnetic field is not energized. The advantage of the electromagnet is that it is easy to control, and the magnetic field can change its size and magnetic pole direction as needed.


Technical parameter of 3/2 Way Micro Pneumatic Solenoid Valve Coils:

Model BB11532502
Normal voltage DC12V/DC24V/AC110V/AC220V
Normal power AC:10VA DC:7W, 12W
Insulation class B, F
Connection type DIN4.8
Application K23D/K25D/K35D 3/2 Way Micro Pneumatic Solenoid Valve
Weight 114 g
Hole size 11 mm
Height 32.5 mm
Width 32 mm



Main dimension of 11mm inside diameter K23D-1.2T solenoid valve coils:

K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter 0

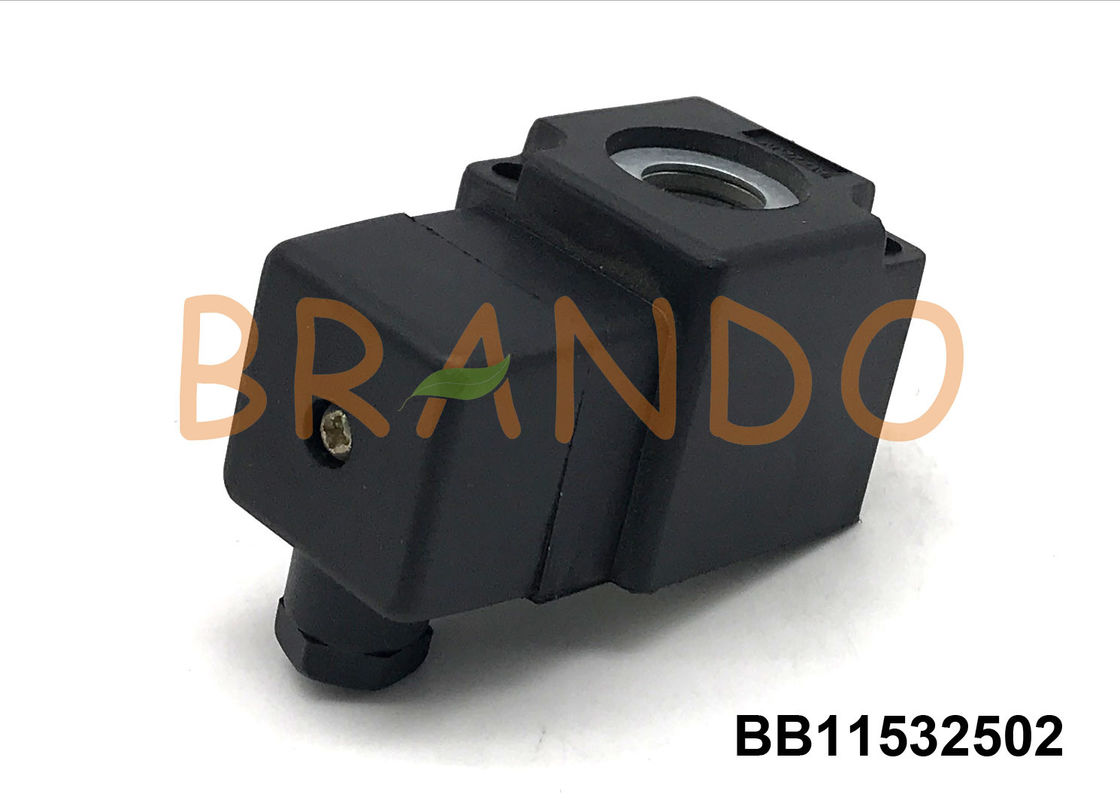

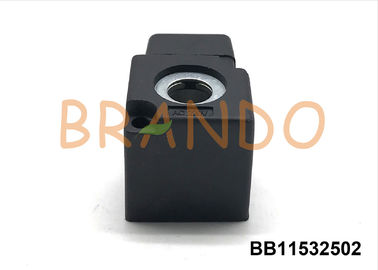

Detailed display of AC220V/DC24V K23D/K25D/K35D Electromagnetic Valve Coils:

K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter 1K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter 2

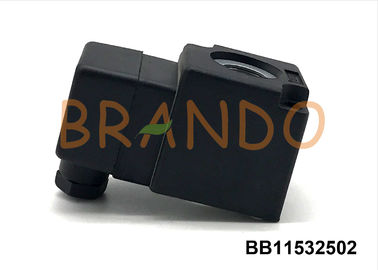

Production display of K23D-1.2 K23D-2 K23D-3 Electric magnetic coils:

K23D-1.2T K25D K35D 3/2 Way Micro Pneumatic Solenoid Valve Coil 11mm Internal Diameter 3

Precautions and development of the use of solenoid valve coil:

Solenoid valve coils have some special points of care during use, as long as they can prevent the coil from being damaged and will not affect the operation of the equipment. And this product is also widely used in real life, and its development is also very fast, and it exists everywhere. Next, we will understand the precautions and development of the solenoid valve coil. The details are as follows:

First, the use of solenoid valve coils:

(1) The thickness and length of the solenoid valve coils are different. People generally choose according to their own needs. After a long period of operation, its temperature will be high, and we can take certain protective measures to prevent this phenomenon.

(2) The voltage to be applied must not exceed the voltage that the coil can accept, otherwise the coil will be burned and unnecessary losses will be caused. In the application, the coil can also be processed according to the conditions, and the coil is not too scattered.

Solenoid valve coils must pay attention to the problems mentioned above when using them, as long as they can make the coils better used and more convenient for everyone's production operations.

Second, the development of solenoid valve coil:

The solenoid valve contains a solenoid valve coil, which occupies a very important position in the entire device. Once it leaves the coil device, it cannot operate. The development of solenoid valves is relatively late, the main reason is the problem of coils. People use electromagnetic functions earlier, but when they start to study the appropriate solenoid valve coils, they can't find a suitable coil to energize.

Nowadays, with the continuous development of skills, solenoid valves are constantly developing. In order to make the development of solenoid valves faster, the first is the development of solenoid valve coils. Only the skill development of this coil can better promote the development of the solenoid valve. The operation of this device is relatively simple, and it can directly work directly by energizing the side. Moreover, it is installed inside the solenoid valve, which also prevents interference and damage to the coil by other things.

The operation of the solenoid valve involves switching and conditioning the valve. At this time, the operator only needs to adjust the operating valve according to his own requirements. The solenoid valve coil guarantees better operation of this equipment and is also a condition for equipment development.



Welcome to your inquiry!
