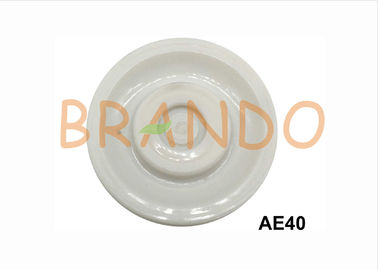

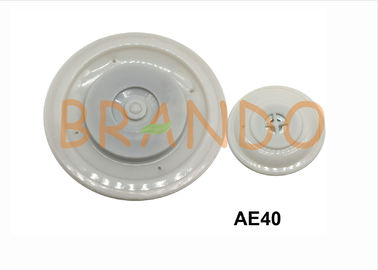

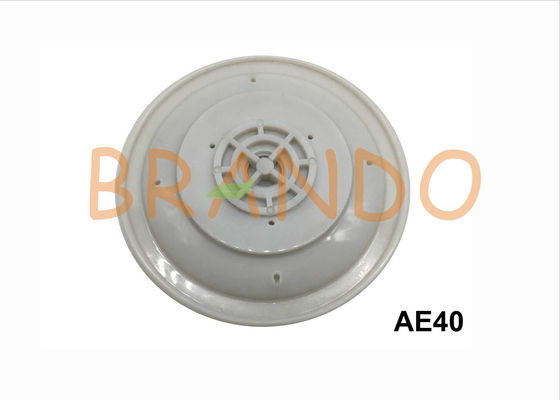

Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve

Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve

    • Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve
    • Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve
    • Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve
    • Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve
  • Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: AE40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pcs,Sample Available
    Price: USD3.00-30.00/PC
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 1 1/2" Media: Air
    Application: Dedusting Color: White
    Material: NBR Voltage: AC220V AC110V DC12V DC24V

    Nitrile Stainless Steel Diaphragm for 1 1/2 Inch Autel Type Pulse Valve



    The air is uniformly distributed avoid channeling Initially a coat of material forms on the bags Subsequently, the coat acts as the filtering medium. The dust is accumulated on filter elements while the air passes thorough the filter bags from outside to inside. the accumulated powder is dislodged from the bags by reverse pulse-jet air intermittently. The dislodged powder falls on bottom cone and is discharged through powder discharge valves. The dust free air is sucked by induced draft fan and is exhausted to atmosphere.


    Suitable for dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.





    Model 1 1/2" pulse valve diaphragm
    Material Nitrile Rubber
    Working ambient temperature -20℃ to 80 ℃
    Working pressure 0.2Mpa to 0.6Mpa
    Working medium Clean air
    Life expectancy over 1 million times or 3 yeas

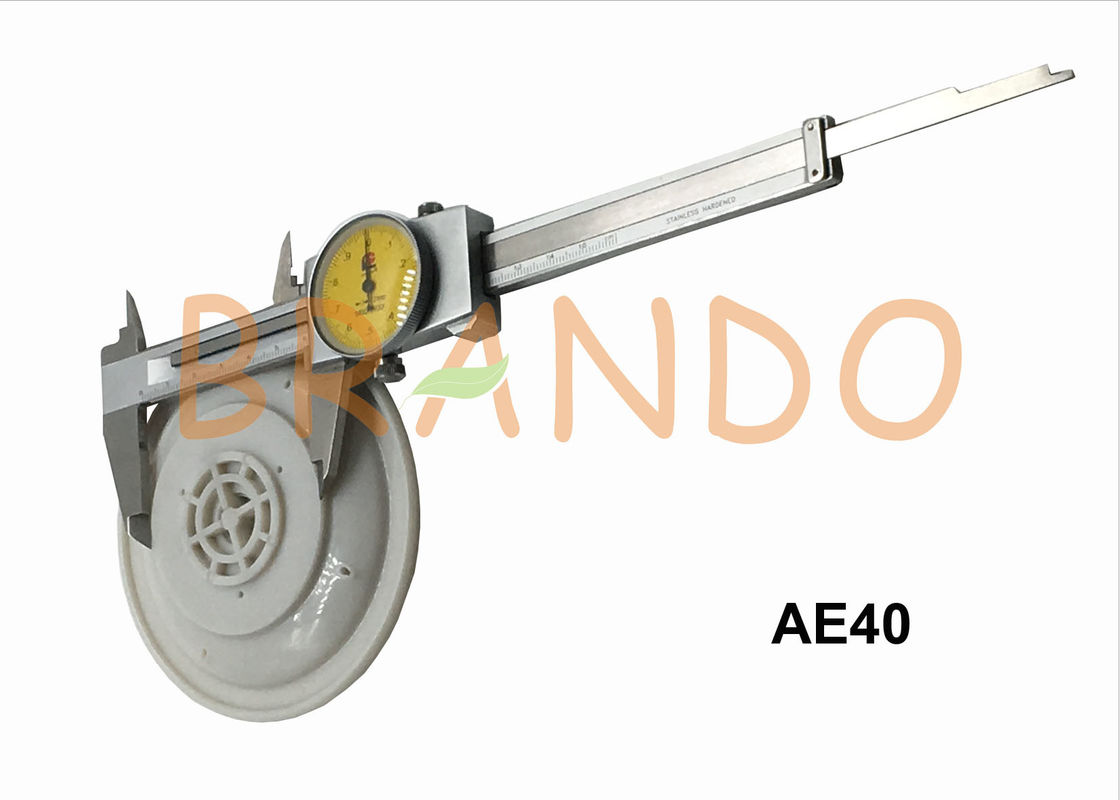

    Detailed datas for reference



    Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve





    Live picture of dust collector



    Nitrile Stainless Steel Diaphragm For 1 1/2 Inch Autel Type Pulse Valve





    That kind of double diaphragm electromagnetic pulse valve how to work ah, do you know the advantages?



    Double diaphragm pulse valve is a valve body, valve body, valve cover, the diaphragm and the control of diaphragm, the compressed air into the pulse valve chamber, at the same time through the orifice, respectively, into the chamber, the chamber pressure equal protection by electromagnetic valve is closed, the control right and the right side of the main diaphragm of diaphragm pressure area is greater than the left, and the effect of spring, were closed, the relief port output filter bag is not blowing, when electric instrument signal, control solenoid valve open diaphragm chamber on the right side of the compressed air discharged into the atmosphere by the electromagnetic valve, the pressure is lower than the control of diaphragm on the left side of the room, make the control to the right of diaphragm and open the relief port, The compressed air in the right chamber of the main diaphragm is discharged into the atmosphere, and its pressure is lower than that of the left chamber of the main diaphragm, so that the main diaphragm moves to the right, and the compressed air is ejected from the left chamber of the main diaphragm to the output outlet, so that the filter bag is sprayed.







    Are there air holes on the side and in the middle of the pulse valve diaphragm?



    Select pulse valve diaphragm can not simply look at membrane pores in what position, but also look to and supporting the use of pulse valve diaphragm in porosity in what position, if the pulse valve in stomata in the edge edge will use in porosity of the diaphragm to match, if there is no loophole edge of pulse valve should be used with porosity of diaphragm, if you don't corresponding pulse valve and the membrane pores, can cause air flow is not smooth, pulse valve can't work normally, be sure to check carefully!







    We will wait for you at anytime
