White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting

White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting

    • White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting
    • White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting
    • White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting
    • White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting
  • White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: AE25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pcs,Sample Available
    Price: negotiation
    Packaging Details: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: Nitrile Power: Pneumatic
    Application: Dedusting Size: 1 Inch
    Color: White Media: Air

    White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25



    We offer special service for your existing system components for pneumatic pulse application, to recondition your inoperative valves and assure operating reliability as good as new.



    We now keen recommend you our AUTEL type Pulse Valve Diaphragm,it made of nitrile rubber,mainly produced by low-temperature emulsion polymerization, which has excellent oil resistance, high wear resistance, good heat resistance and strong adhesion.

    The rubber diaphragm has a long service life and can accurately perform operations in synchronization with other control components to ensure the injection of pulsed compressed air. Even under extremely harsh working conditions, it can guarantee its normal operation and long service life.


    Model 1" pulse valve diaphragm
    Material Nitrile Rubber
    Working ambient temperature -20℃ to 80 ℃
    Working pressure 0.2Mpa to 0.6Mpa
    Working medium Clean air
    Life expectancy over 1 million times or 3 yeas

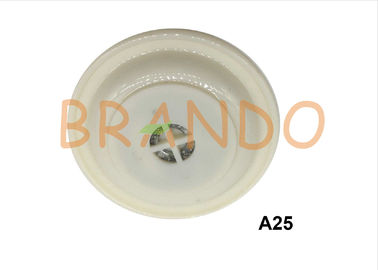

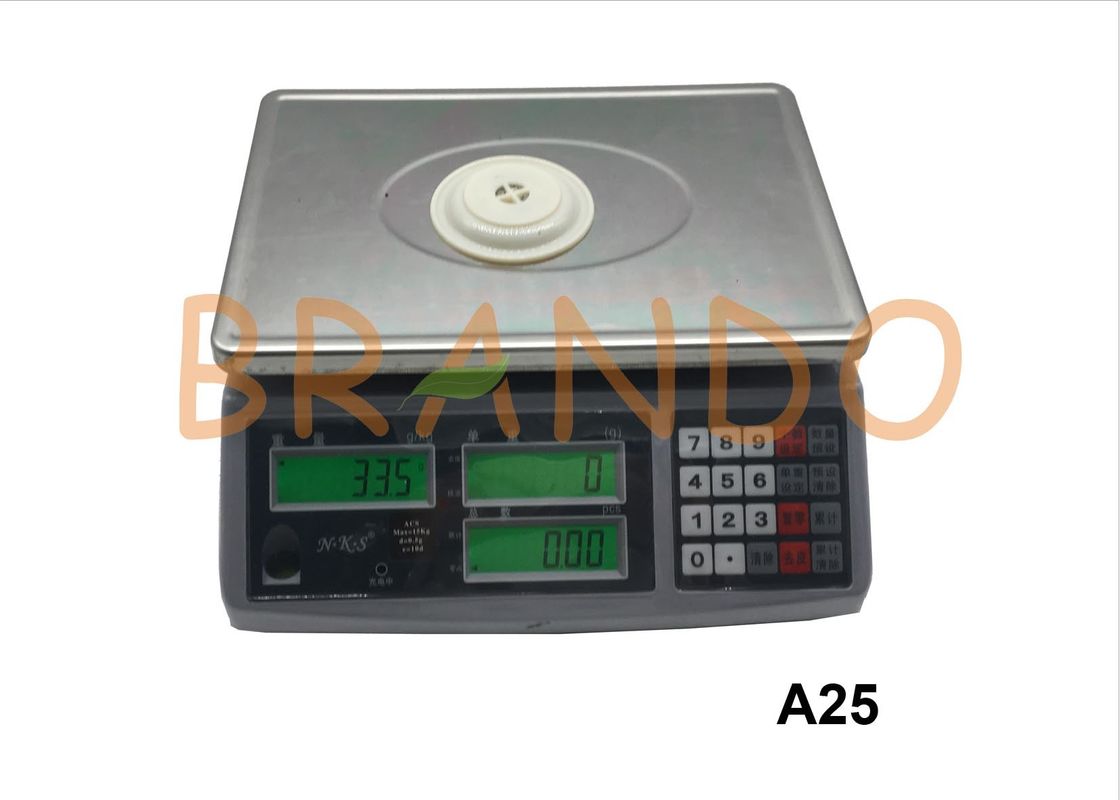

    You can see the detailed information as followed picture



    White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting



    Widely used in Bag Dust Filter System



    White Color Orifice Fabric Reinforced AUTEL Type Diaphragms AE25 For Dedusting





    Diaphragm's Application:



    The electromagnetic pulse valve diaphragm is the diaphragm in the electromagnetic pulse valve body, which is the key to its normal operation. The electromagnetic pulse valve is the blowing air circuit switch of the pulse bag type dust collector cleaning system.



    Since the pulse valve diaphragm is a flexible mechanism that requires frequent opening and closing operations to control air circulation, and requires good flexibility, and requires as high a sealing as possible, the material of the pulse valve diaphragm is directly It is related to the service life and effect of the pulse valve diaphragm. In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag type dust collector cleaning system, and is also directly related to the use cost of the dust removal device. The pulse valve diaphragm has a promise of service life or number of movements. The use of a high-quality pulse valve diaphragm can directly reduce the cost of dust removal equipment.




    Working principle of Pulse Valve Diaphragm:



    Pulse solenoid valve through the wire to the electromagnetic body coil into the positive pulse signal, coil generated by the working flux, make the moving core suction, open the valve. When the positive pulse signal input is stopped, the moving core is released, and the moving core returns to the initial state under the action of spring force. In addition, the valve is self-maintained, which can be maintained after the positive pulse input is stopped or the power is cut off. Only when the negative pulse signal is input can it be reset. Pulse solenoid valve working principle, is the use of electrical pulse into mechanical pulsation, make pulsating gas powerful energy into momentum, release in a short time to produce great momentum, with PLC control of its pulse interval should be determined according to the rated gas pressure recovery time.



    If you want know more,pls contact us quickly
