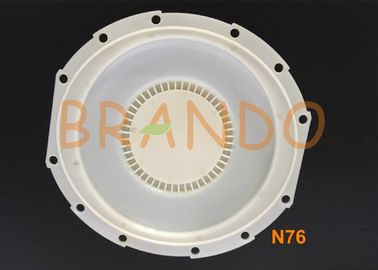

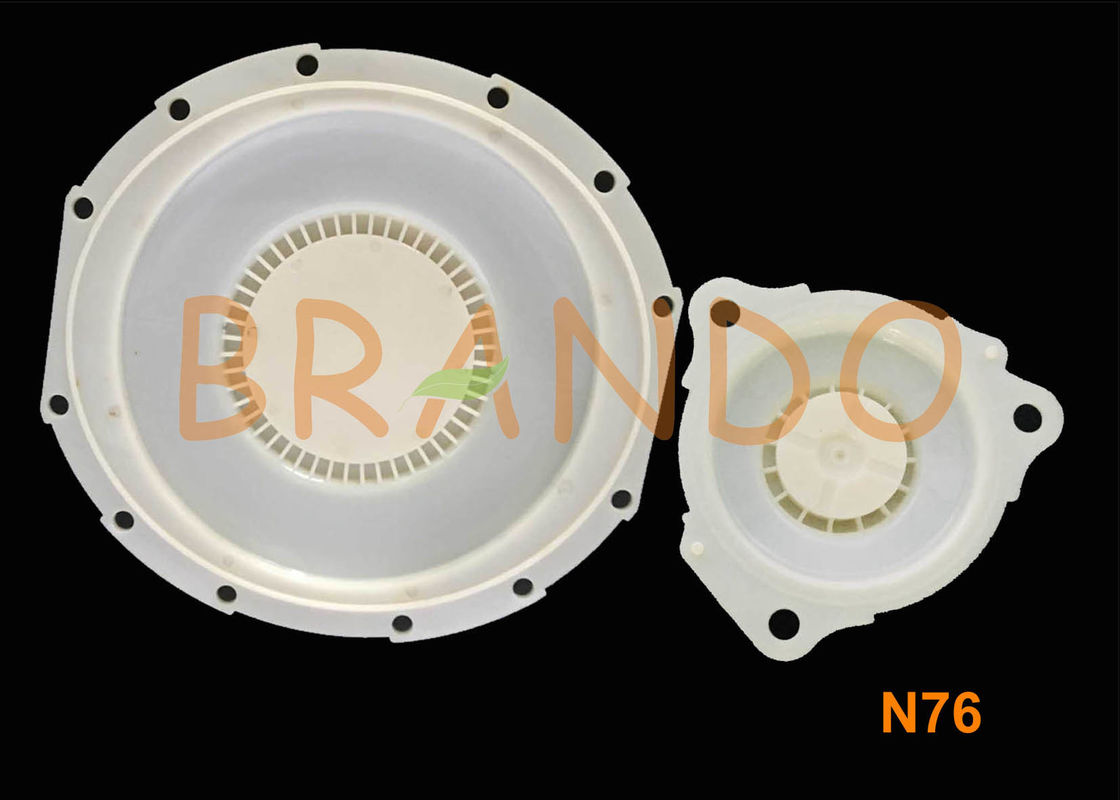

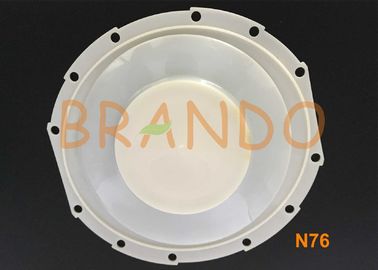

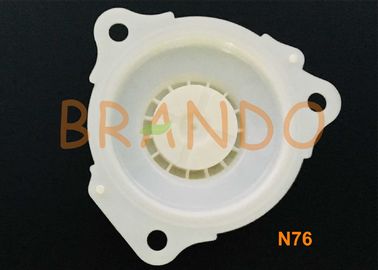

Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power

Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power

    • Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power
    • Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power
    • Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power
    • Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power
  • Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: N76

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pcs,Sample Available
    Price: negotiation
    Packaging Details: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: Fluorine Port Size: 3''
    Power: Pneumatic Media: Air
    Temperature: Normal Application: Industrial Dust Collector

    Fluorine Rubber Diaphragm N76 for 3 Inch NORGREN Type Pulse Valve



    Do you know that there are air holes on the side and air holes in the middle of the pulse valve diaphragm. Select pulse valve diaphragm can not simply look at membrane pores in what position, but also look to and supporting the use of pulse valve diaphragm in porosity in what position, if the pulse valve in stomata in the edge edge will use in porosity of the diaphragm to match, if there is no loophole edge of pulse valve should be used with porosity of diaphragm, if you don't corresponding pulse valve and the membrane pores, can cause air flow is not smooth, pulse valve can't work normally, be sure to check carefully!



    Various types of Diaphragm are in stock,different from materials,sizes or other characteristics.If you have the present or potential purchase demand,pls take us into priority.



    Model No. NORGERN Type Diaphragm N76
    Material Fluorine Rubber
    Applicable Medium Air
    Usage Dust Collector Valve
    Flow Direction One Direction
    Size 3 Inch
    Using Life More Than 1 Million Cycles



    About Industrial Dust Collector

    Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power



    The Date of NORGREN Type 3'' Pulse Valve Diaphragm N76

    Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power Fluorine Rubber Diaphragm N76 For 3 Inch NORGREN Type Pulse Valve Pneumatic Power



    Maintenance of Pulse Valve Diaphragm

    Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.Diaphragm and pilot unit inspection should be conducted annually.





    Advantages Our Products Have:
    Pulse valve diaphragm with strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, can easily ensure the complete synchronous operation with other control components, control the pulse compressed air injection. Even in extremely harsh working environment, it can guarantee its normal work and long service life. At the ambient temperature of -20-80℃ and the operating pressure difference of 0.8mpa, the working life of the diaphragm is not lower than 1 million times.







    Dust Pulse Valve Diaphragm Operation

    Pulse valve diaphragm, is the electromagnetic pulse valve air switch, electromagnetic pulse valve diaphragm back control pressure gas quickly discharged. Diaphragm front control pressure gas will lift the diaphragm, open the electromagnetic pulse valve channel into the bit on the injection, the electrical signal disappears, the electromagnetic pilot head of the spring make the moving column immediately reset closed unloading hole. Electromagnetic pulse valve diaphragm control gas pressure and diaphragm spring force after close the channel, the electromagnetic pulse valve to stop the resistance of injection on the diaphragm hole, when the guide head moving column is raised, when gas pressure unloading, electromagnetic pulse valve diaphragm have the effect of air resistance, when unloading closed cavity, after pressure gas is quickly to make the electromagnetic pulse valve diaphragm close the channel, stop blowing.







    If you are interested in our products,pls let us know at anytime.
