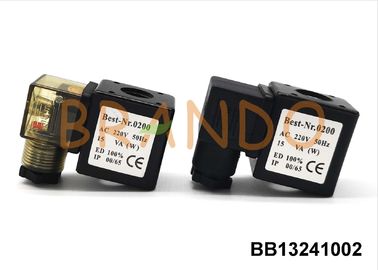

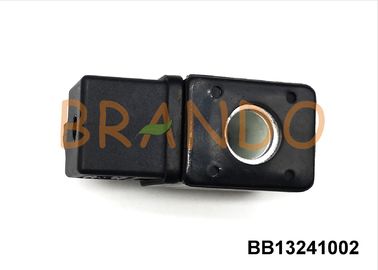

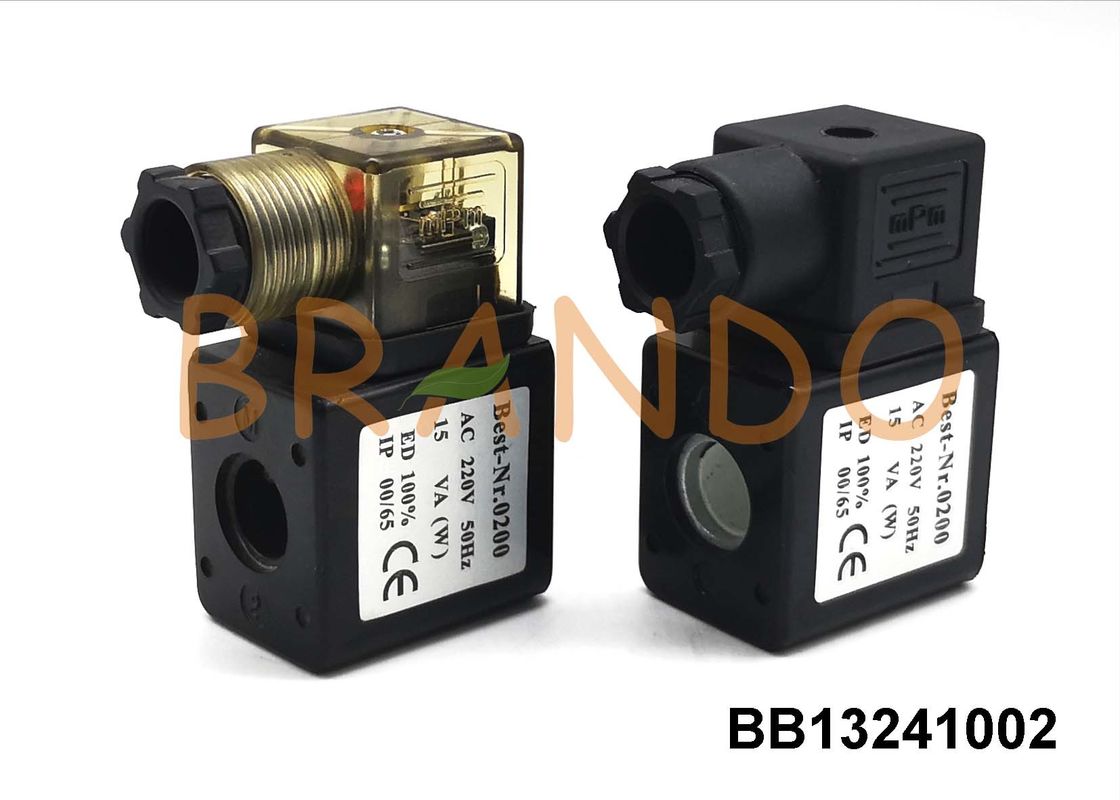

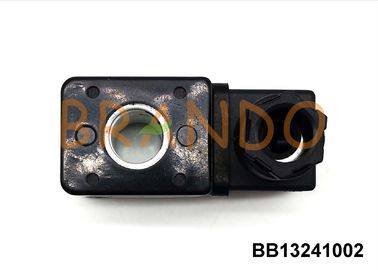

Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve

Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve

    • Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve
    • Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve
    • Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve
    • Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve
  • Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve

    Product Details:

    Place of Origin: NINGBO CHINA
    Brand Name: Brando
    Certification: CE
    Model Number: BB13241002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1-$3 per set
    Packaging Details: Inner Box,Carton,Pallet
    Delivery Time: 4-9 days
    Payment Terms: L/C, T/T, Western Union,Paypal
    Supply Ability: 250000 pieces per month
    Contact Now
    Detailed Product Description
    Type: Solenoid Valve Accessories Material: Plastic,Brass
    Product Name: Water Solenoid Valve Coils Voltage: DC24V/AC220V
    Power: Solenoid Operated Color: Black (Other Color Can Be Customized)
    Application: Automatic Control Insulation Class: H,F
    Connection Type: DIN43650A Model: Best-Nr0200

    Best-Nr0200 Type Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve



    Because micro-motors, electrical appliances, transformers or meters and other industries have high requirements on the number of turns of their solenoid coils, and some even do not allow half-turn errors. Therefore, the number of turns of the winding machine must be accurate and reliable. Our company uses a fully automatic winding machine to produce Best-Nr0200 Type Solenoid Coil to ensure the accuracy of the number of coil turns.



    The number of turns of the coil is reflected by the number of turns of the winding machine main shaft. The number of turns is then converted into a pulse signal by a reed sensor, shaped by a shaping circuit, and converted into a square wave, which is differentiated to trigger the counter. When the input given signal composed of the single-pole two-position switch coincides with the counting signal of the counter, that is, when the number of turns required to be wound is consistent with the number of turns that have been wound, the circuit-compliant door is It is turned on, and the signal is sent to the controller, so that the winding motor is immediately stopped, thereby ensuring the accuracy of the lap control.



    Technical parameter of Best-Nr0200 Type Solenoid Coils:

    Model Number BB13241002
    Normal voltage DC24V/AC220V; other voltage can be customized
    Normal power AC:18VA DC15W
    Insulation class H, F
    Connection type DIN43650A
    Application Water solenoid valve
    Weight 137.5 g
    Hole size 13 mm
    Height 41 mm



    Main dimension of 0200 type water solenoid valve coils:

    Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve



    Deconstruction picture of AC220V/DC24V solenoid coil for water electromagnetic valve:

    Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve



    Normally Close 0200 Pulse Solenoid Valve Coil Inner Hole 13mm Height 41mm:

    Small Pneumatic Solenoid Coil Inner Hole 13mm Height 41mm For Water Electromagnetic Valve



    Enameled wire is widely used, mainly in: inductors, VCM, transformers, solenoid coils, sensors, frequency transmitters, radar detection devices, etc., involving many fields of electronic components.



    Definition of solenoid coil enameled wire (self-adhesive enameled wire & non-self-adhesive enameled wire):
    The solenoid coil enameled wire is made of a high-purity, high-conductivity conductor covered with an insulating coating, namely: conductor + insulating paint + adhesive layer = self-adhesive enameled wire



    Self-adhesive enameled wire is a special enameled wire, which is because its special processing properties make the manufacture of the coil simple and easy. The wound coil can be bonded and formed by heating or solvent treatment, and the molding method is simple, and is widely applied to the manufacture of various complicated or non-skeletal electromagnetic coils. The application of self-adhesive enameled wire also brings significant social and economic benefits, which can simplify the coil forming process, improve work efficiency, save energy, improve environmental pollution, facilitate industrial production, and contribute to sustainable development.



    The self-adhesive enameled wire has a composite structure, that is, a layer of adhesive paint is applied to the outer surface of the ordinary enameled wire (baseline). At present, China attaches great importance to the development of composite insulating enameled wire, which has the characteristics of good variety and good performance. Since the composite layer enameled wire is coated with two to three layers of different materials, it is compatible with a variety of different paint characteristics compared with the single layer of wire, which solves the problem that a single material does not meet the production requirements. In the self-adhesive enameled wire structure of the composite layer, the insulating varnish mainly guarantees the insulation performance of the wire, and the second outermost viscous lacquer is mainly used to meet the needs of the coil forming process, and acts as a bonding and protects and enhances the baseline.
