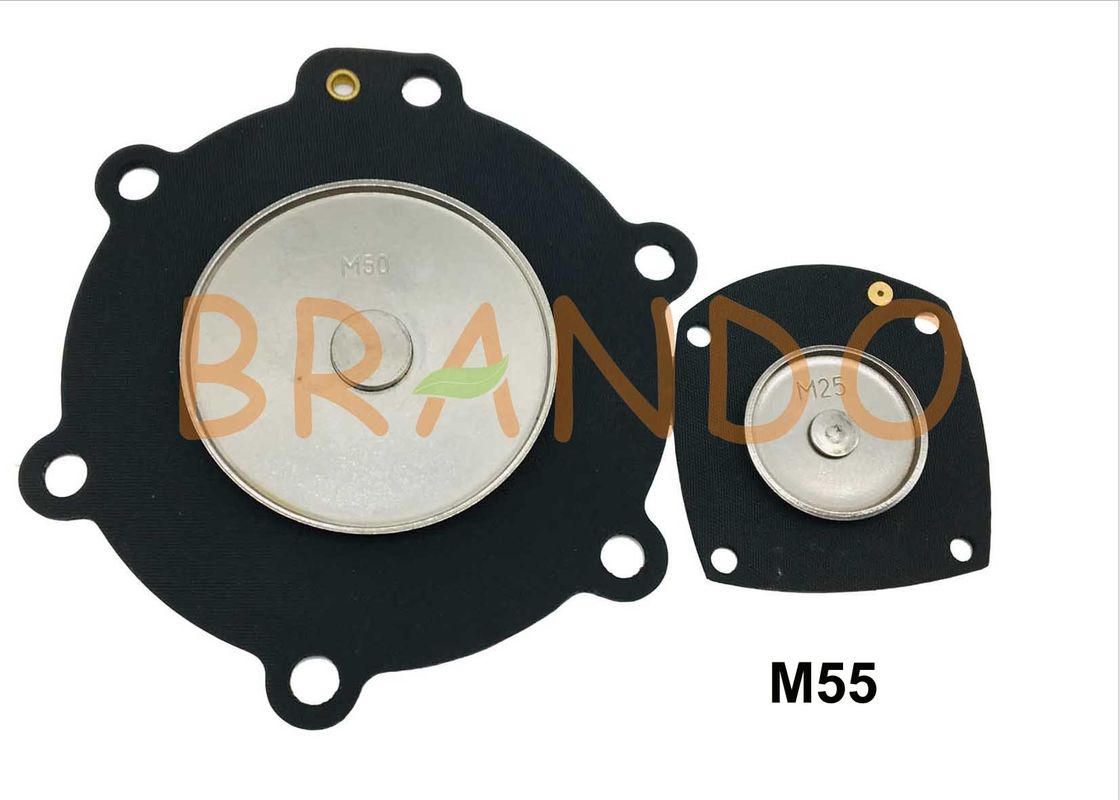

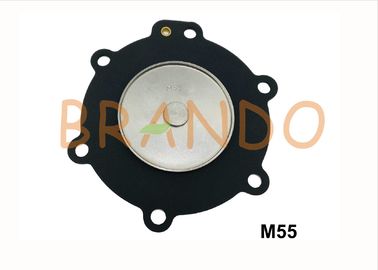

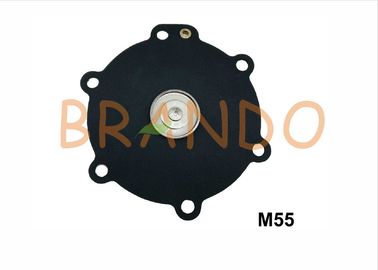

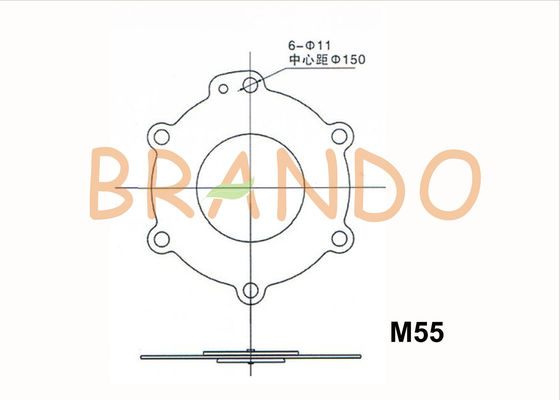

Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve

Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve

    • Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve
    • Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve
    • Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve
    • Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve
  • Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: M55

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pcs,Sample Available
    Price: USD3.00-30.00/PC
    Packaging Details: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Power: Pneumatic Material: NBR
    Media: Air Application: Industrial Dust Collector
    Size: 2'' Color: Black

    Pneumatic Power TURBO Type Solenoid Valve Diaphragm M55 For Pulse Blowing Valve



    Solenoid and diaphragm valves work together for the efficient operation of the cleaning system in a Pulse-Jet Dust Collector.

    Diaphragm Repair Kits M75,M25 For Turbo Integral or Remote Pilot Pulse Jet Valve.

    The diaphragms are repair kits for the Turbo pusle valves: FP65, FM65 , SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN
    We produced series TURBO type diaphragm repair kits, it is nice replacement for Turbo diaphragm.Ordering code: M20, M25, M40, M50, M55, M75



    Ordering Code Fitted Valve Code Valve Port Size Mateiral
    M25 All Type 1" Nitrile/Fluororubber
    M40 FP40,FM40
    DP40,DM40
    EP40,EM40
    1-1/2" Nitrile/Fluororubber
    M50 FP55,FM55
    SQP50,SQM50
    SQP60,SQM60
    2" Nitrile/Fluororubber
    M75 FP65,FM65
    SQP75-IN,SQM75-IN
    SQP100-IN,SQM100-IN
    3" Nitrile/Fluororubber



    Practical sample for reference

    Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve



    Of course,corresponding pulse valve can be available

    Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve



    Guarantee the delivery in time

    Industrial Dust Collector Solenoid Valve Diaphragm M55 For Pulse Blowing Valve




    Structure performance of Diaphragm

    Composed of one or more layers of two sides coated with glue, and also of rubber without fabric clip. According to the shape of the separation method membrane pressure method. According to the requirements of the production of different rubber, different fabric diaphragm. The properties of nitrile rubber and polysulfide rubber blends used in the diaphragm, the properties of rubber materials used in the canvas disc diaphragm and some silicone rubber, fluoro rubber and chloro rubber membranes developed in recent years are described as follows.



    The operating temperature and pressure range of the diaphragm itself depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness, aging resistance, and the service life is equal to that of engine overhaul.





    Working Principle of Diaphragm

    The air is uniformly distributed avoid channeling Initially a coat of material forms on the bags Subsequently, the coat acts as the filtering medium. The dust is accumulated on filter elements while the air passes thorough the filter bags from outside to inside. the accumulated powder is dislodged from the bags by reverse pulse-jet air intermittently. The dislodged powder falls on bottom cone and is discharged through powder discharge valves. The dust free air is sucked by induced draft fan and is exhausted to atmosphere.








    The selection of pulse valve with low resistance and high injection volume can remove larger area of filter material and greatly save the overall cost of the injection system. Due to the reduction of the number of valves, the operation and maintenance costs of the dust collector will also be reduced accordingly, so we should choose the electromagnetic valve diaphragm suitable for high, medium and low pressure range.



    If you have the present or future demand of our products,pls contact us without any hesitation
