11mm Hole MSV Series Solenoid Valve Coils For Automatic Refrigerant Control

35.5mm Height 11mm Hole MSV Series Refrigeration Solenoid Valve Coils For Automatic Refrigerant Control

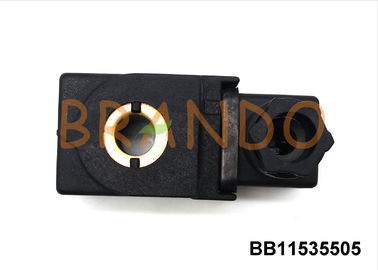

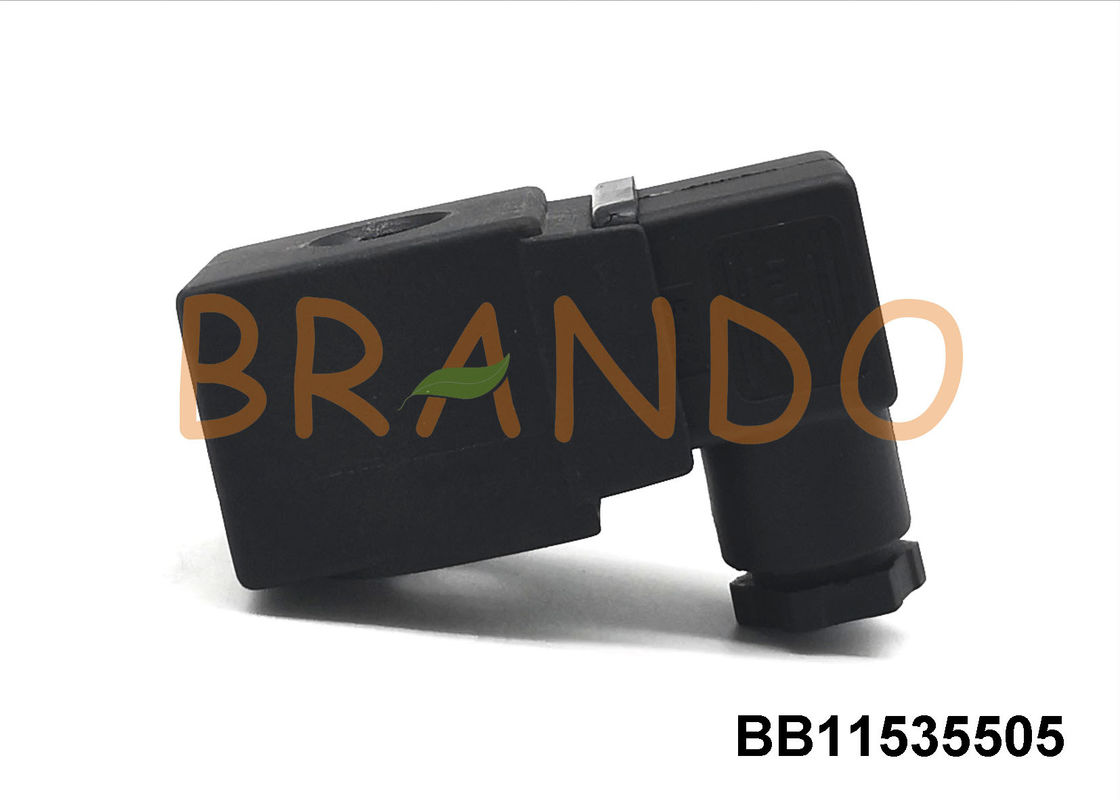

Providing a variety of voltage, a variety of power supply MSV series refrigeration solenoid coil, screw-type solenoid coil can be manually loaded and unloaded. Coil aperture, height: φ11mm x 35.5mm. Applicable power and voltage: AC: 8VA DC10W; AC220V DC24V or OEM.

Features of MSV refrigeration solenoid valve coils:
1. Covered with thermosetting composite or flame retardant resin.
2. Excellent temperature resistance and moisture resistance, and the protection grade is above IP65.
3. Widely used in refrigeration, cold car, home appliances and other industries.
4. Breakdown resistance ≥1500V 1MA/min
5. Protection level: IP65
6. Temperature resistance rating: F. N. H

Technical parameter of MSV series refrigeration solen oid valve coils:

Main dimension of 35.3 height 11mm hole refrigeration electromagnetic valve coils:

Production of Copper Solenoid Valve Coils For Automatic Refrigerant Control:

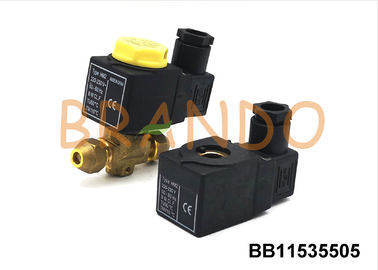

Application of MSV SAE/ODF connection solenoid refrigeration valves coils :

The working situation of refrigeration valve determined by solenoid coil:

The performance of the refrigeration solenoid valve is good or bad, and the quality of the refrigeration solenoid valve coil is inseparable. The quality of the refrigeration solenoid valve coil is determined by the solenoid coil. The surface of the coil we produce is smooth and has no defects such as porosity, looseness, chipping and cracking. Consistent with drawings and technical documents approved in accordance with the prescribed procedures. Use the caliper with a table caliper and a tape measure to check the outer dimensions of the coil. The coil is immersed in normal temperature water for 24 hours. The insulation resistance between the charged body and the uncharged metal part measured in water using a DC 500V megger should meet the requirements.

Application of solenoid valve coils in various equipment and occasions:
1, home RO machine (also known as pure water machine)
2, desktop iron, steam cleaner
3, coffee machine (desktop), two three-way, two two-way four, small argon arc welding machine, used in every machine
4, large plasma cutting equipment
5, twin-screw extruder, the main products are direct-acting
6, chick hatching equipment, water for temperature control
7, drying equipment (mainly pharmaceutical, chemical equipment)
8, back osmosis equipment, water treatment equipment, water equipment, filling equipment, coin filling machine.
9, wood drying equipment.
10, twin screw air compressor.
11, industrial washing equipment, mainly to control the entry of steam.
12, medical equipment (medical equipment), control the entry of steam.
13, industrial V-belt production equipment, mainly steam solenoid valves.
14, circuit board production equipment, mainly anti-corrosion solenoid valve.
15, ultrasonic cleaning equipment, mainly to control the in and out of hot water.
16, refrigeration solenoid valve, mainly used in various refrigeration equipment, ice machines, cold storage equipment, etc.
17, fire equipment, automatic rain systems, and fire engineering.
18, water treatment system, sewage treatment, mainly calculation engineering, using a larger range of water solenoid valve products.
19, filling machinery.
