Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material

Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material

  • Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material
  • Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material
  • Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material
  • Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material
Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material
Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Brando
Certification: CE
Model Number: BB14439333
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 200000 pieces per month
Contact Now
Detailed Product Description
Type: Pulse Jet Valve Accessories Main Material: Copper
Product Name: Pulse Solenoid Valve Coils Voltage: DC24V/AC220V
Hole Size: 14mm Power: Solenoid Operated
Color: Green (Other Color Can Be Customized) Weight: 311.5 G
Application: Automatic Control Pulse Jet Valve Connection Type: DIN43650A
High Light:

ASCO Solenoid Coil

,

ASCO Solenoid Valve Coil

,

ASCO Coils

ASCO Type Green Color Pulse Solenoid Valve Coils 14mm Inside Hole Height 39.3mm



Most of the coils suitable for solenoid pulse valves are currently used on the pulse jet valve of the dust collector. The product is sealed with bmc thermosetting material, 180 grade high temperature enameled wire, and td4c high quality royal iron. The shape is beautiful and bright. High quality and efficient.


The main parameters of the coil are as follows: internal aperture 14mm, height 39.3mm, power: AC21VA, DC18W.


The solenoid coils produced by our factory have a wide range of applications. Among them, the solenoid coils of electromagnetic pulse valve application are the leading products of our factory for many years, and are deeply loved by our customers. Our factory has rich production experience, advanced technical equipment and perfect testing means. And committed to improve product quality, pay attention to credibility, in response to market needs, and constantly introduce new products, especially welcome the research and development of special specifications products.



Technical parameter of ASCO type pulse solenoid valve coils:

Model Number BB14439333
Normal voltage AC220V; DC24V; or customized
Normal power AC: 21VA DC:18W
Insulation class H
Connection type DIN43650A
Application Automatic Control Pulse Solenoid Valve

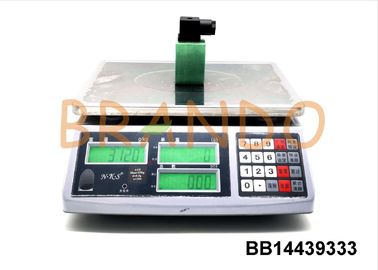

Weight 311.5 g



Main dimension of 14mm inside hole size ASCO green pulse jet valve coils:

Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material 0

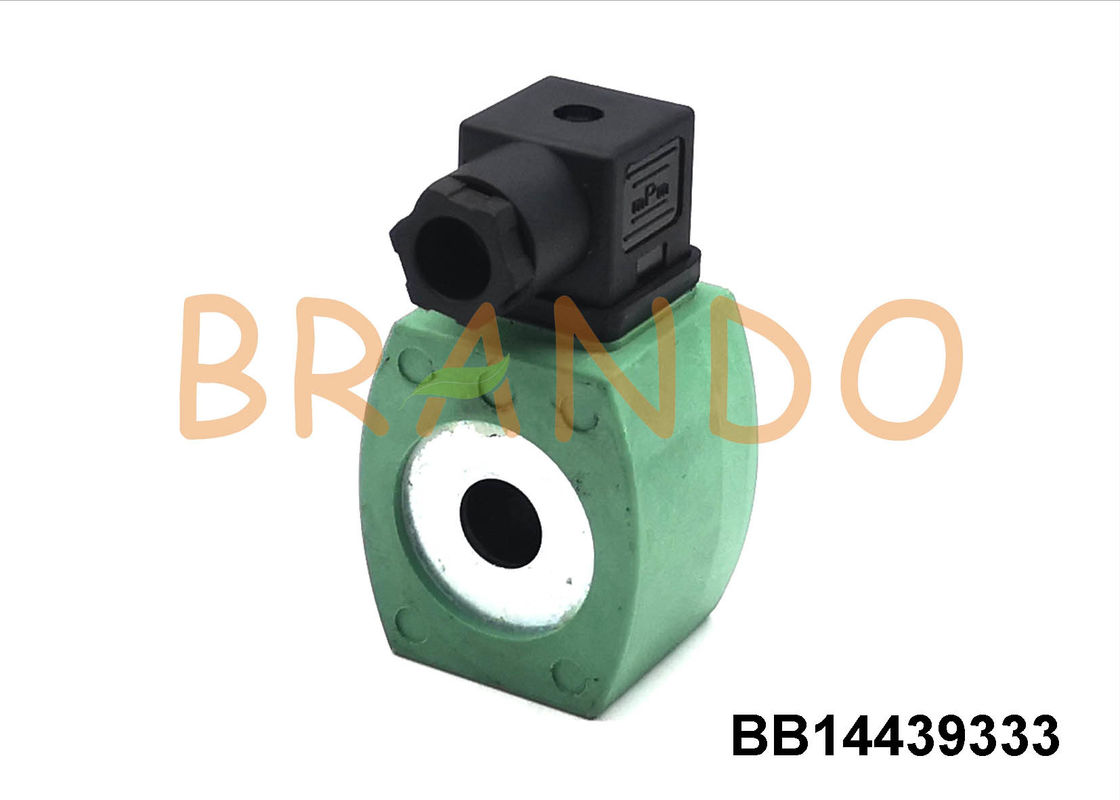

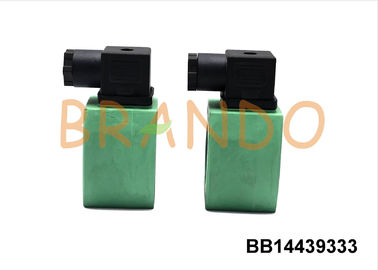

Detailed pictures of height 39.3mm pulse diaphragm valve accessories coils:

Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material 1Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material 2

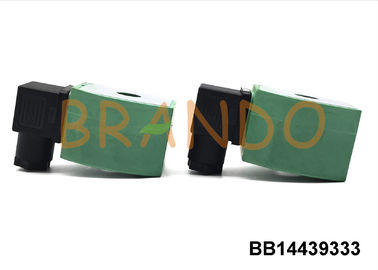

Production display of AC220V/24VDC DIN type pulse solenoid valve coils:

Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material 3Green Color Pulse Valve Solenoid Coil 14mm Inside Hole Height 39.3mm Copper Material 4



The bag filter with pulse solenoid valve coils:

The bag filter is mainly based on the mechanism of inertial bumping, sieving, and interception between the filter bag and the dust particles to complete the gas-solid separation. The filter wind speed, filter function, backflushing method and cleaning criteria of this type of dust collector have a great influence on the dust removal power and resistance. Therefore, in the dust collector planning, in addition to selecting the appropriate filter material according to the characteristics of the smoke, to determine the reasonable filtration wind speed, we must pay attention to the following points in the processing and production.


1. The reversing valve and its control equipment for atmospheric anti-suction or anti-bloom cleaning are necessary. It is necessary to start in place, the action is sensitive, the operation is simple, and it is tight and airtight when closed.


2. Pulse valve, solenoid valve and pulse control appearance are selected for pulse cleaning, which requires excellent function and sensitive action, and can be operated continuously for a long time.The pulse solenoid valve we produce uses a high-quality coil that guarantees one million blows and the coil is not burned out.


3. When the inner filter is selected, the upper hanging tissue and the lower flower plate should be centered to ensure that the filter bag satisfies the straightness and the flat belt distance; the filter bag hoisting tightness should be consistent, avoiding the transition deformation of the filter bag, affecting the dust collector Normal operation.


4. When the outer filter is selected, the outer surface of the cage bone supporting the filter bag is flat and lubricated. It is certainly not allowed to have sharp arched objects or corner burrs to avoid puncturing or excessively wear the filter bag, forming a short circuit of the airflow and reducing the dust removal power.


5. The connection between the filter bag and the flower board, it is necessary to consider the convenience of disassembly and assembly when changing the bag, but also to be tight and airtight, to avoid short circuit of airflow and reduce the dust removal power.



Pls contact us for more details!
