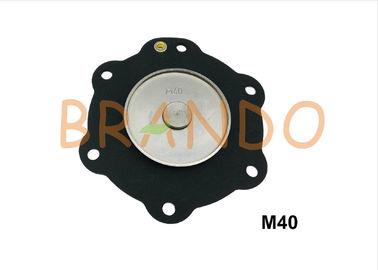

M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector

M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector

    • M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector
    • M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector
    • M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector
    • M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector
  • M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: M40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pcs,Sample Available
    Price: USD3.00-30.00/PC
    Packaging Details: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 1 1/2'' Media: Water
    Application: Industrail Pulse Dust Collector Power: Pneumatic

    Pneumatic Power 1 1/2'' TURBO Type Pulse Valve Diaphragm M40



    TURBO electromagnetic pulse valve diaphragm structure and performance: the performance of nitrile rubber and polysulfur rubber blends used in the diaphragm, the performance of rubber materials used in the canvas disc diaphragm (often called diaphragm), and some silicone rubber, fluoro rubber, chloro rubber diaphragm developed in recent years.



    Valve body inlet and outlet into a right Angle, directly controlled by electrical signal diaphragm valve; The right Angle electromagnetic pulse valve is the compressed air "switch" of the dust cleaning and blowing system of the pulse bag filter. Controlled by the output signal of pulse jet control instrument, the filter bag is sprayed and cleaned one by one (chamber) to keep the pressure of the dust collector within the set range, so as to ensure the processing capacity and dust removal efficiency of the dust collector.



    Ordering Code Fitted Valve Code Valve Port Size Mateiral
    M25 All Type 1" Nitrile/Fluororubber
    M40 FP40,FM40
    DP40,DM40
    EP40,EM40
    1-1/2" Nitrile/Fluororubber
    M50 FP55,FM55
    SQP50,SQM50
    SQP60,SQM60
    2" Nitrile/Fluororubber
    M75 FP65,FM65
    SQP75-IN,SQM75-IN
    SQP100-IN,SQM100-IN
    3" Nitrile/Fluororubber



    Our Diaphragm and Pulse Valve has competitive prices with superior quality

    M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector



    High working efficiency in bag dust filtration

    M40 1 1/2'' Pneumatic Valve Diaphragm For Industrail Pulse Dust Collector



    Performance of TURBO Pulse Valve:

    TURBO electromagnetic pulse valve diaphragm itself operating temperature range and pressure range depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness and aging resistance. A very good emp valve the most important thing is to emp valve diaphragm is good, good coil, these two objects are very important. Magnetic pulse valve be very careful with corrosive or explosive environment requirements corrosion electromagnetic pulse valve or use anti-static solenoid valve, flow temperature is too high, please replace the viscosity of the solenoid valve, when work restricted should choose multi-function solenoid valve, easy to use conveniently, quick maintenance effort, work pressure difference is not appropriate, adjust the differential, or replacement of proportion of electromagnetic pulse valve, according to need to choose model, size of solenoid valve. If the working frequency is too high or the service life has reached, please change the product or update the product. If the liquid viscosity of the filter is too high and the frequency is too high, please consider changing the product. The electromagnetic pulse valve cannot be closed.



    About Description of Pulse Valve

    The service life of emp valve design is generally three years or more than 1 million times, but according to our experience of many years, the number of times of emp valve more than three inches or in three years is generally 50,000 or 60,000 times, which is determined by the time between the injection of emp valve. Low pressure long bag off-line pulse dust remover three inches of electromagnetic pulse valve, generally use alternating spray, each electromagnetic pulse valve at an interval of 30 minutes, is a normal spray frequency. Three years of spraying 3×365×24×2 = 52,560 times, that is, more than 50,000 times.



    Therefore, the service life of electromagnetic pulse valve is an important parameter, but far less mysterious than some electromagnetic pulse valve manufacturers propaganda. Because of this, electromagnetic pulse valve in the use of the spray effect, sealing and stability is the key to measure the quality of electromagnetic pulse valve.





    If you have the present or future demand of our products,pls contact us without any hesitation
