14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

    • 14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117
    • 14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117
    • 14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117
    • 14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117
  • 14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB14040007

    Payment & Shipping Terms:

    Minimum Order Quantity: 250 pcs
    Price: $2-$7 per set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 6-10 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 200000 pieces per month
    Contact Now
    Detailed Product Description
    Type: Coils, Pulse Valve Accessories Material: Plastic, Brass
    Product Name: Pneumatic Jet Valve Coils Voltage: DC24V/AC110V/AC220V
    Hole Size: 14 Mm Power: Solenoid Control
    Ref Number: 400325342, 400425101, 400425118, 400425117 Application: Pulse Diaphragm Valve Automated Control Solenoid Coils
    Insulation Class: H Connection Type: DIN43650B

    14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

    The types of solenoid coils are mainly the following: thermoplastic coils, thermosetting coils, explosion-proof coils, waterproof coils, and varnish-type coils.

    Among them, the thermoplastic coil and the thermosetting coil belong to a plastic-type electromagnetic coil, and the thermoplastic coil has better weather resistance and toughness, and the thermosetting coil has a higher temperature resistance level, and the shrinkage is smaller during injection molding, and the shape is relatively flat.

    The following is a description of a thermoset coil that is widely used in ASCO type pulse diaphragm valves for automatic control.

    Technical parameter of 14 mm 400325342 pulse diaphragm valve solenoid coils:

    Model No. BB14040007
    Ref number 400325342, 400425101, 400425118, 400425117
    Normal voltage AC220V/AC110V; DC24V
    Normal power AC:28VA DC:18W
    Insulation class H
    Connection type DIN43650A
    Application SCG353A series ASCO type Pulse Diaphragm Valve

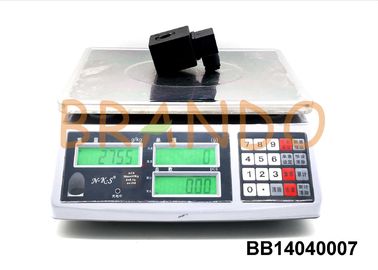

    Weight 275 g


    Main dimension of SCG353A043 pulse jet valve 400425101 electromagnetic coils:
    14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

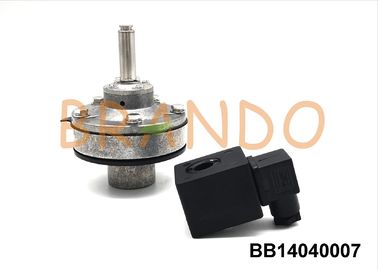

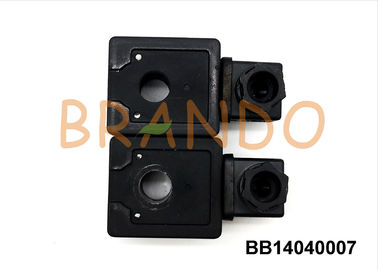

    Production dispaly of ASCO type 400425118 pulse solenoid valve coil:
    14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 40042511714 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

    14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 40042511714 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

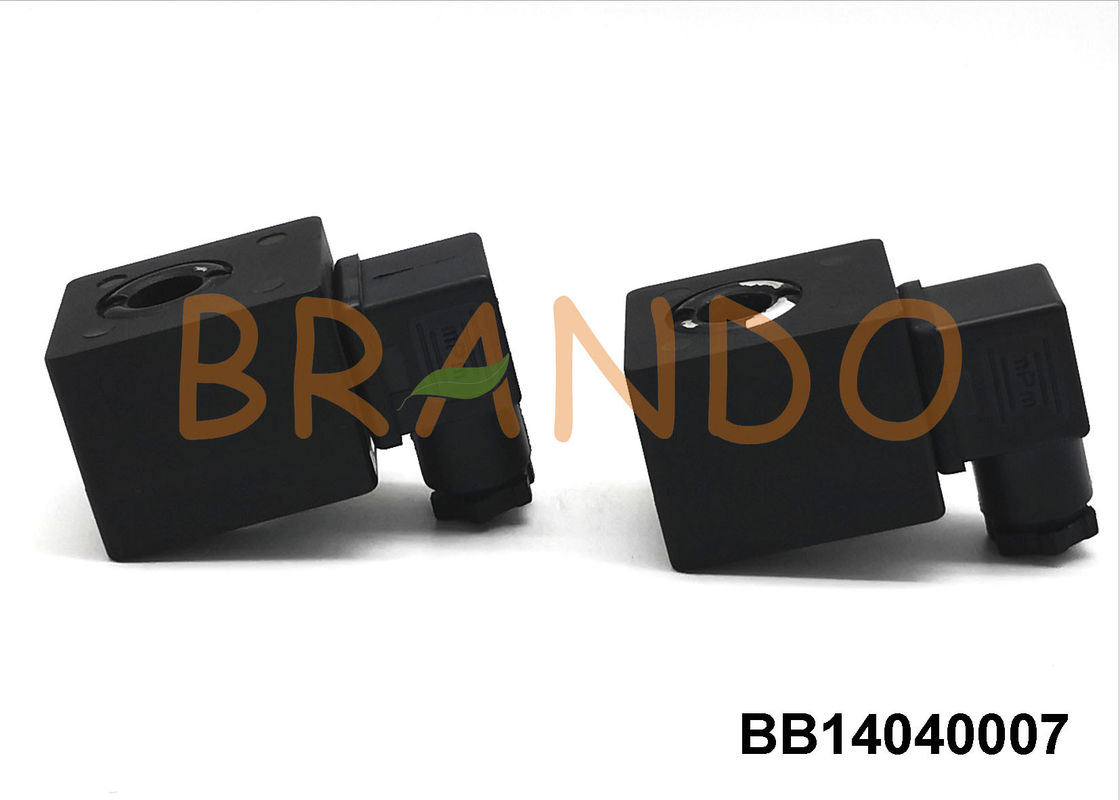

    Product real display of 400425117 AC220V / 24VDC ASCO type pulse valve coils:
    14 Mm Hole ASCO Type Pulse Solenoid Coil 400325342, 400425101, 400425118, 400425117

    ASCO Type pulse valve related repair kits and coils accessories table:

    Repair kits and coils
      Repair kits and coil Coils
    Valve AC DC DC24V AC24V AC115V AC230V
    SCG353A043 C113444 C113444 400325642 400325101 400325118 400325118
    ACG353A044 C113444 C113444 400325642 400325101 400325118 400325118
    ACG353052 C113444 C113444 400325642 400325101 400325118 400325118
    SCG353053 C113444 C113444 400325642 400325101 400325118 400325118
    SCG353A047 C113827 C113827 400325342 400425101 400425118 400425117
    SCG353050 C113685 C113686 400325342 400425101 400425118 400425117
    SCG353051 C113685 C113686 400325342 400425101 400425118 400425117
    SCG353060 C123432 C123433 400325342 400425101 400425118 400425117
    SCG353A065 C113827 C113827 400325342 400425101 400425118 400425117


    Four classifications of solenoid coils:

    1. According to the manufacturing process
    The electromagnetic coil can be divided into a dip-coating type solenoidcoil, a plastic-sealed solenoid coil, and a potting type solenoid coil according to the manufacturing process.

    1) Dipped paint type solenoid coil
    Early solenoid coils were mostly used in low-end products.

    2) Plastic-type solenoid coil
    The plastic-type solenoid coil can be further divided into a thermoplastic plastic coil and a thermosetting plastic coil.

    3) Poured solenoid coil
    The encapsulation type coil process is complicated and has a long production cycle and is not generally used.

    2. According to the use occasion
    The solenoid coil can be divided into waterproof solenoid coils, explosion-proof solenoid coils (explosion-proof grade: Ex mb I/II T4) and special types of solenoid coils.

    3. According to the use of voltage
    The solenoid coil can be divided into alternating current, direct current and bridge rectified alternating current according to the voltage used.

    4. According to the connection method
    The solenoid coil can be divided into lead type and pin type solenoid coil according to the connection mode.

    Magnet physical principle:
    There is a magnetic field around the magnet. When the solenoid is energized, a magnetic field is also formed. The direction of the magnetic field lines can be determined by the right hand spiral rule. The energized solenoid acts like a strip magnet and has the ability to attract ferromagnetic materials. If the ferromagnetic material is placed in a solenoid, a greater electromagnetic attraction can be produced.The total number of magnetic lines passing through the face is called flux. The magnetic flux per unit area is called magnetic induction.
