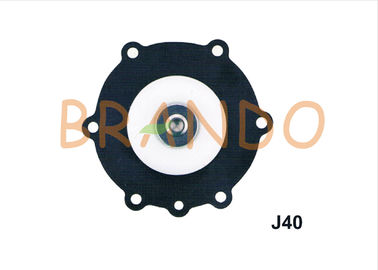

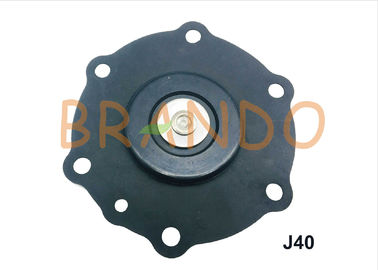

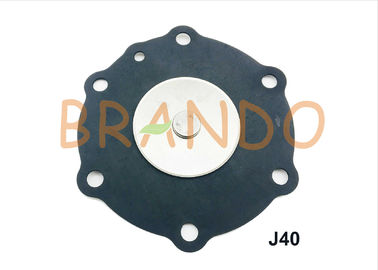

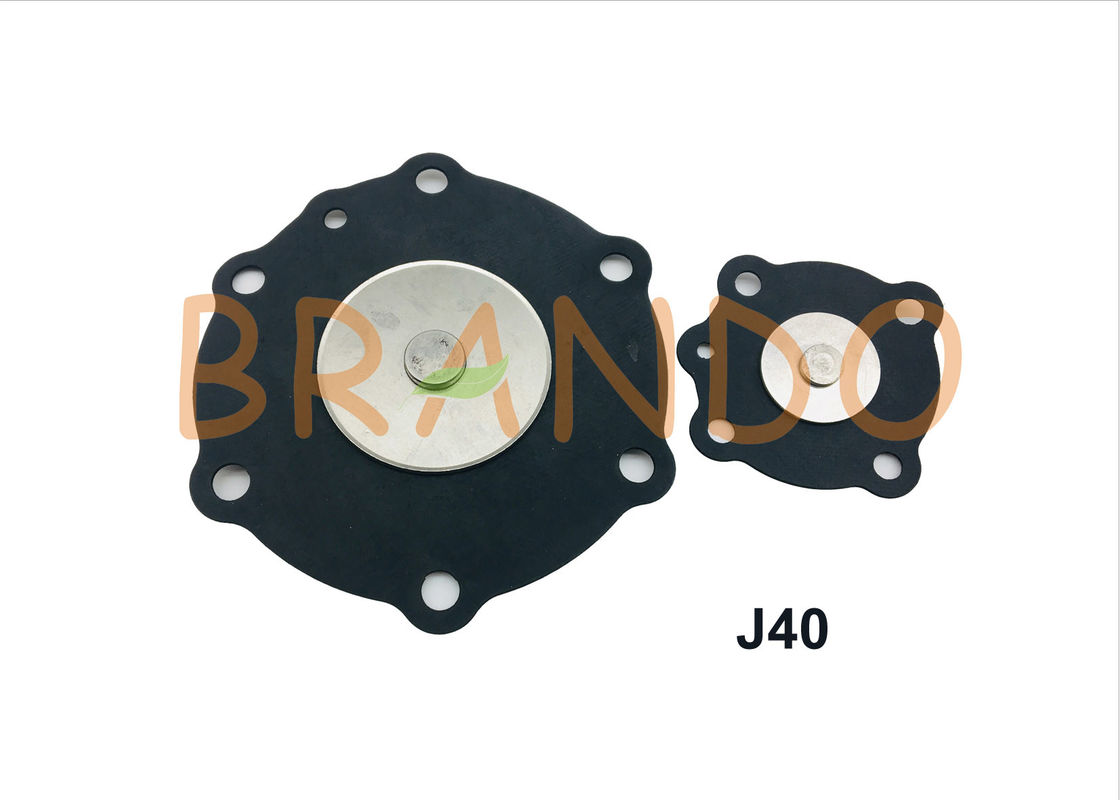

Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material

Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material

    • Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material
    • Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material
    • Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material
    • Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material
  • Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: J40

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 pc
    Price: USD3.00-30.00/PC
    Packaging Details: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Pressure: 0.2~0.6MPa Port Size: 1 1/2''
    Structure: Diaphragm Color: Black
    Application: Pulse Blowing System Material: NBR

    Joil Type 1 1/2'' Black Nitrile Rubber Diaphragm for Pulse Blowing System



    The solenoid valve diaphragm is also called the pulse valve diaphragm. The diaphragm valve diaphragm is a rivet head for venting the air outlet of the compressed air duct or the plugging valve, a venting relief hole and a bolt for fixing the surrounding. A whole high-quality rubber diaphragm formed by the hole, which is a key control component in the electromagnetic pulse valve.

    The pulse valve diaphragm is one of the "opening" of the blowing air path of the pulse bag type dust collector cleaning system and the normal operation of the valve body. The quality of the pulse valve diaphragm directly affects the working stability of the pulse bag type dust collector cleaning system, and is also directly related to the use cost of the dust removal device. The general pulse valve diaphragm has a promise of service life or number of actions. The high quality pulse valve diaphragm can directly reduce the cost of dust removal equipment.

    Type Quantity Suitable valve Material
    1" 1 JICI25,JICR25,JISI25,JISR25





    Nitrile or Viton

    1 1/2" 2 JICI40,JICR40,JISI40,JISR40
    2" 2 JISI50,JISR50
    2 1/2" 2 JISI65,JISR65
    3" 2 JISI80,JISR80,JIHI80,JIHR80



    Diaphragm installation in Pulse Dust Valve,application in pulse blowing system,bag dust filtration system

    Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material Pulse Blowing System Solenoid Valve Diaphragm Joil Type 1 1/2'' Black Nitrile Rubber Material

    About Failure and repair of diaphragm
    1. The spring is damaged. The spring on the pulse valve spool is easily damaged. The appearance is that the pulse valve is deflated to the blow port for a long time. The treatment method is to replace the spring.

    2. The rubber pad is damaged. After the use time is long, the rubber pad on the pulse valve spool is easily damaged. The appearance is that the pulse valve is deflated to the blowing port for a long time. The treatment method is to replace the rubber pad.

    3, the valve core dirt, because the intake air is not clean, causing the fouling of the valve core, resulting in the appearance of long-term intake of the nozzle or the pulse valve does not work after the power, the treatment method is to clean the valve core.

    4, the diaphragm is damaged, after long-term work, the diaphragm is easy to fatigue, oxidation, etc., resulting in the appearance of long-term deflation of the pressure relief port, the pulse valve does not work, the treatment is to replace the diaphragm.

    5. The orifice is blocked or damaged. The intake air is not clean and the throttle hole is blocked. The appearance is that the pulse valve is deflated to the nozzle for a long time. The treatment method is to clean the orifice; the orifice is damaged or missing, and the orifice is made. Loss of interception, resulting in abnormal pressure relief, the appearance of the pulse valve after the power is activated, the pressure relief port deflation, but the pulse valve is not sprayed, the treatment is a replacement orifice.



    If you want know more,pls feel free to contact us
