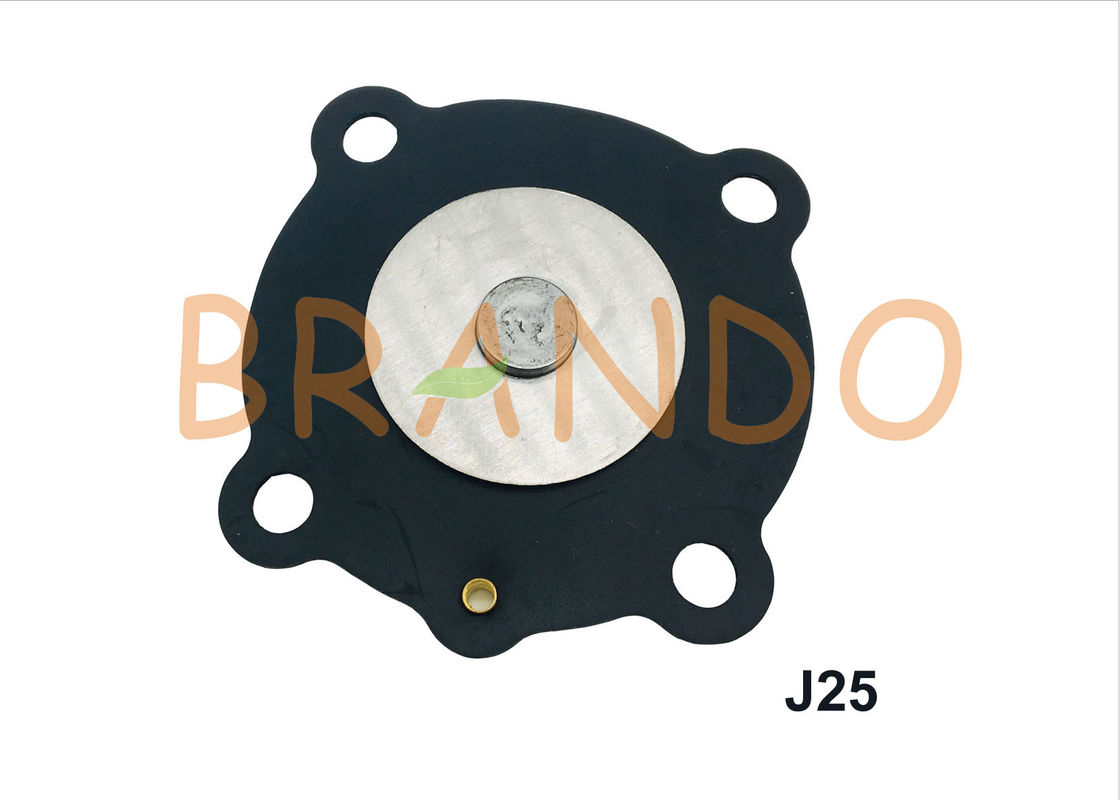

1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector

1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector

    • 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector
    • 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector
    • 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector
    • 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector
  • 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: J25

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 pc
    Price: USD3.00-30.00/PC,Negotiable
    Packaging Details: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: NBR Power: Pneumatic
    Media: Air Application: Industrial
    Port Size: 1'' Color: Black

    Joil Type 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Air Wokring Medium for Industrial Dust Collector



    The electromagnetic pulse valve diaphragm is the key to the normal operation of the electromagnetic pulse valve. The electromagnetic pulse valve is the “opening and closing” of the blowing air path of the pulse bag type dust collector cleaning system. The electromagnetic pulse valve diaphragm is controlled by the pulse controller. The diaphragm vibrates into the street and the pulse “pulse amount” is sprayed and cleaned. The area of ​​the electromagnetic pulse valve diaphragm is controlled to be larger than the area of ​​the front control, and the air pressure is large, so that the diaphragm is at a critical position. The pulse controller inputs an electrical signal to cause the electromagnetic head to pick up the transport and open the unloading hole.



    Model Joil Type Pulse Valve Diaphragm
    Hole numbers for mounting 6
    Working ambient temperature -20℃ to 80 ℃
    Working pressure 0.2Mpa to 0.6Mpa
    Working medium Water/Clean air
    Life expectancy over 1 million times or 2 yeas
    Transport By air,by sea,by express,etc



    Single diaphragm and double diaphragm installation in valve for reference

    1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector



    Finally,application in Bag Dust Collector System

    1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Joil Type For Industrial Dust Collector




    Operation of the electromagnetic pulse valve diaphragm
    The pulse valve diaphragm is an air switch of the electromagnetic pulse valve, and the pressure gas controlled by the electromagnetic pulse valve diaphragm is quickly discharged. The pressure gas controlled by the diaphragm lifts the diaphragm, opens the electromagnetic pulse valve channel and blows it on, and the electrical signal disappears. The spring of the electromagnetic pilot head immediately resets the opening and unloading hole. The electromagnetic pulse valve diaphragm controls the gas pressure and the spring force to close the diaphragm. The electromagnetic pulse valve stops the resistance hole on the diaphragm. When the pilot head moves up and the gas pressure is unloaded, the electromagnetic pulse valve membrane The sheet acts as a resistance air flow. When the unloading is closed, the pressure gas is quickly filled into the rear chamber, so that the electromagnetic pulse valve diaphragm closes the passage and stops the injection.





    We offers a full range of diaphragm valves and diaphragm kits suited to the high flow and fast response demands of reverse pulse jet dust collector applications. The reverse pulse jet diaphragm valves are built to an exceptional quality standard and are supported by dedicated and experienced applications engineers. All Pulse Jet Valves are built to the highest quality standards, making them a best-in-class product for durability and longevity. All our valves are 100% tested for function and leak prior to shipment and are the first choice solution with the largest system builders globally.



    If you want to know more,pls feel free to contact us
