|Place of Origin:||China|
|Minimum Order Quantity:||3 pc|
|Price:||USD2.00-10.00 per pc|
|Packaging Details:||PVC bag, inner box, carton, than packed by pallet|
|Delivery Time:||7 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100000pcs per month|
|Port Size:||3 Inch||Power:||Pneumatic|

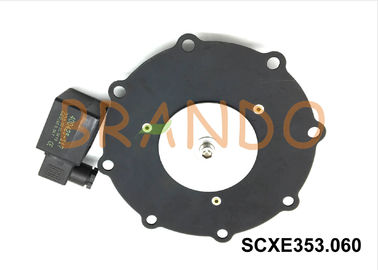

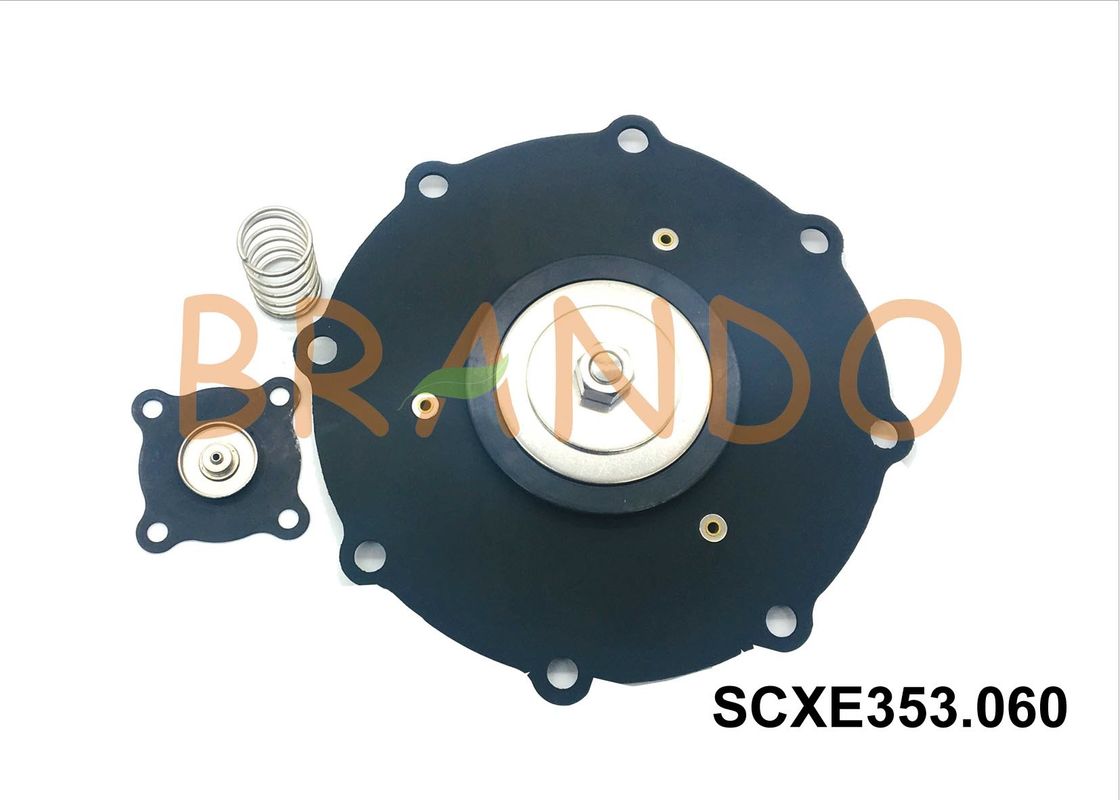

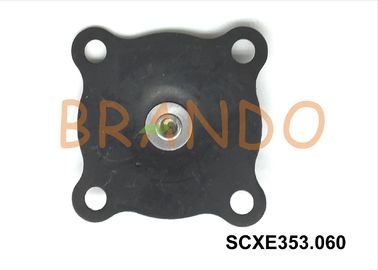

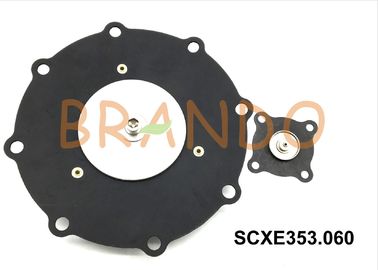

ASCO type Rebulid Kit Pulse Valve Diaphragm A76 for Industrial Bag Dust Filtration System
A very thin-walled diaphragm can withstand high pressures while remaining very flexible and responsive to minior pressure variations.
Fabrics made of polyester, nylon and silk ard basically used for most applications, fabric used for those applications exposed to high temperature. For those applications that require extremely high strength.
All types of elastomers, such as nitrile, EPDM, fluorocarbon, neoprene, silicone, fluorosilicone, can be used in the fabric-reinforced diaphragms.
fabric-reinforced diaphragms offer advantanges of no leakage, no lubrication, no breakaway force, no friction, high strength, functionality over wide pressure ranges, low cost, simple design, versatility.
|Name||ASCO Rubber Diaphragm|
|Material||VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR|
|Feature||Resistance to oil,water, abrasion|
|Standard||Standard or Customized according to your need|
|Color||As per your request|
|Size||standard or as your design|
|Quality Certification||CE, ISO|
3 inch ASCO type Diaphragm Drawings
Application in Dust Filter Machine
We guarantee offer actual and effective Certificate of Origin
Advantages of Pulse Valve Diaphragm:
Pulse valve diaphragm with strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, can easily ensure the complete synchronous operation with other control components, control the pulse compressed air injection. Even in extremely harsh working environment, it can guarantee its normal work and long service life. At the ambient temperature of -20-80℃ and the operating pressure difference of 0.8mpa, the working life of the diaphragm is not lower than 1 million times.
Daily Maintenance of Pusle Valve Diphragm
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
Diaphragm and pilot unit inspection should be conducted annually.suitable for dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
The practical application of diaphragm
The electromagnetic pulse valve diaphragm is the diaphragm in the electromagnetic pulse valve body, which is the key to its normal operation. The electromagnetic pulse valve is the blowing air circuit switch of the pulse bag type dust collector cleaning system. Since the pulse valve diaphragm is a flexible mechanism that requires frequent opening and closing operations to control air circulation, and requires good flexibility, and requires as high a sealing as possible, the material of the pulse valve diaphragm is directly It is related to the service life and effect of the pulse valve diaphragm. In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag type dust collector cleaning system, and is also directly related to the use cost of the dust removal device. The pulse valve diaphragm has a promise of service life or number of movements. The use of a high-quality pulse valve diaphragm can directly reduce the cost of dust removal equipment.
Thank you for your watching,if you have the present or future demand,could you pls take priority to us?Stock supply, also can be customized according to your needs and conditions
