Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air

Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air

    • Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air
    • Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air
    • Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air
    • Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air
  • Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: G50

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 pc
    Price: negotiation
    Packaging Details: pp bag inside, carton box outside
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: NBR Port Size: 2''
    Application: Industrial Color: Black
    Working Temperature: -20~80℃ Type: Solenoid Pulse Valve

    2'' Diaphragm of Solenoid Pulse Valve G50 Medium with Cleaning Air



    Since the pulse valve diaphragm is a flexible mechanism that requires frequent opening and closing operations to control air circulation, and requires good flexibility, and requires as high a sealing as possible, the material of the pulse valve diaphragm is directly It is related to the service life and effect of the pulse valve diaphragm. In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag type dust collector cleaning system, and is also directly related to the use cost of the dust removal device. The pulse valve diaphragm has a promise of service life or number of movements. The use of a high-quality pulse valve diaphragm can directly reduce the cost of dust removal equipment.


    Model Pulse Valve Diaphragm G50
    Center distance Φ140
    Application Dust Bag Filtration System
    Hole number for mounting 8
    Working temperature -20℃--80℃
    Working pressure 0.2Mpa-0.6Mpa
    Working medium Clean Air
    Diaphragm working life More than 1 million cycles
    Name rubber diaphragm
    Material VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR
    Working Medium Clean Air
    Feature Resistance to oil,water, abrasion
    Color As per your request



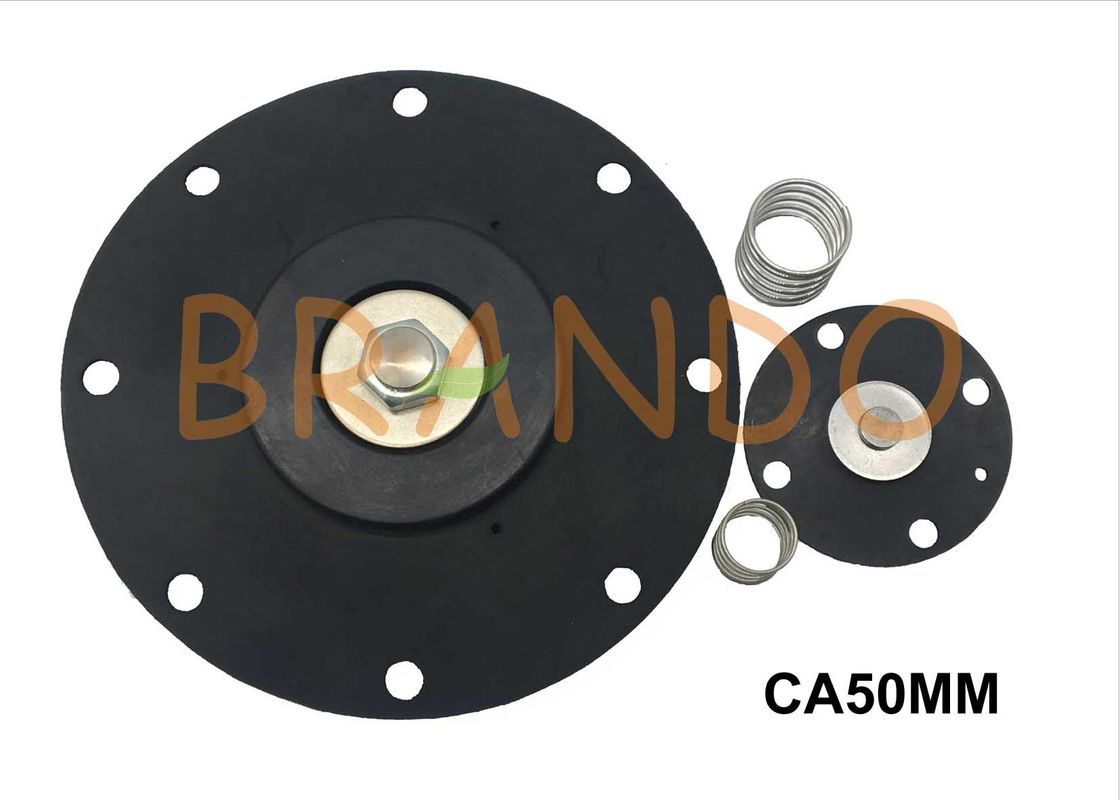

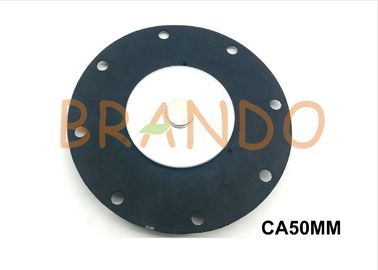

    Drawings of 2'' Pulse Valve Diaphragm G50



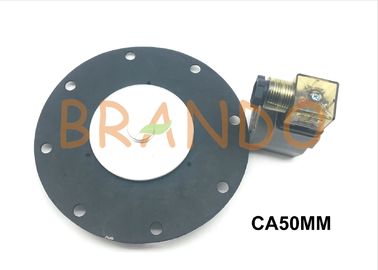

    Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air



    Diaphragm made of NBR

    Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air Black Color Pulse Solenoid Valve 2'' Diaphragm G50 Medium With Cleaning Air



    working principle

    The pulse valve diaphragm divides the pulse valve into two front and rear air chambers. When the electromagnetic pulse valve is turned on to clean the compressed air in the pulse bag type dust collector cleaning system, the compressed air passes through the throttle hole and enters the rear air chamber. The pressure in the rear air chamber closes the diaphragm to the air outlet of the valve, and the pulse valve is at In the off state, the pulse controller outputs a signal to move the pulse valve armature. After the valve, the air chamber vent hole is opened, and the rear air chamber is quickly depressurized, so that the diaphragm moves backward, and the compressed air is blown through the air outlet of the valve, and the pulse valve is opened. State injection starts, the electrical signal output by the pulse controller Disappeared, the electromagnetic pilot head of the pulse valve is reset, the rear air chamber vent is closed, and the rear air chamber pressure is raised so that the pulse valve diaphragm is in close contact with the valve outlet, the pulse valve is closed, the injection is stopped, and the injection time is The length of the air is controlled by the controller.



    The role of the solenoid valve diaphragm in the dust collector
    to control the oil pressure in the oil passage. Generally installed in the main oil circuit or damper back pressure oil circuit, to reduce the oil pressure shock when shifting and locking unlocking, so that the equipment operation is stable. Our pulse solenoid diaphragm is made of high-quality rubber sheet which is most suitable for the production of pulse valve diaphragm. It has strong oil resistance, acid resistance, high temperature resistance and alkali resistance. It can easily ensure complete synchronization with other control components. , control the injection of pulsed compressed air.
