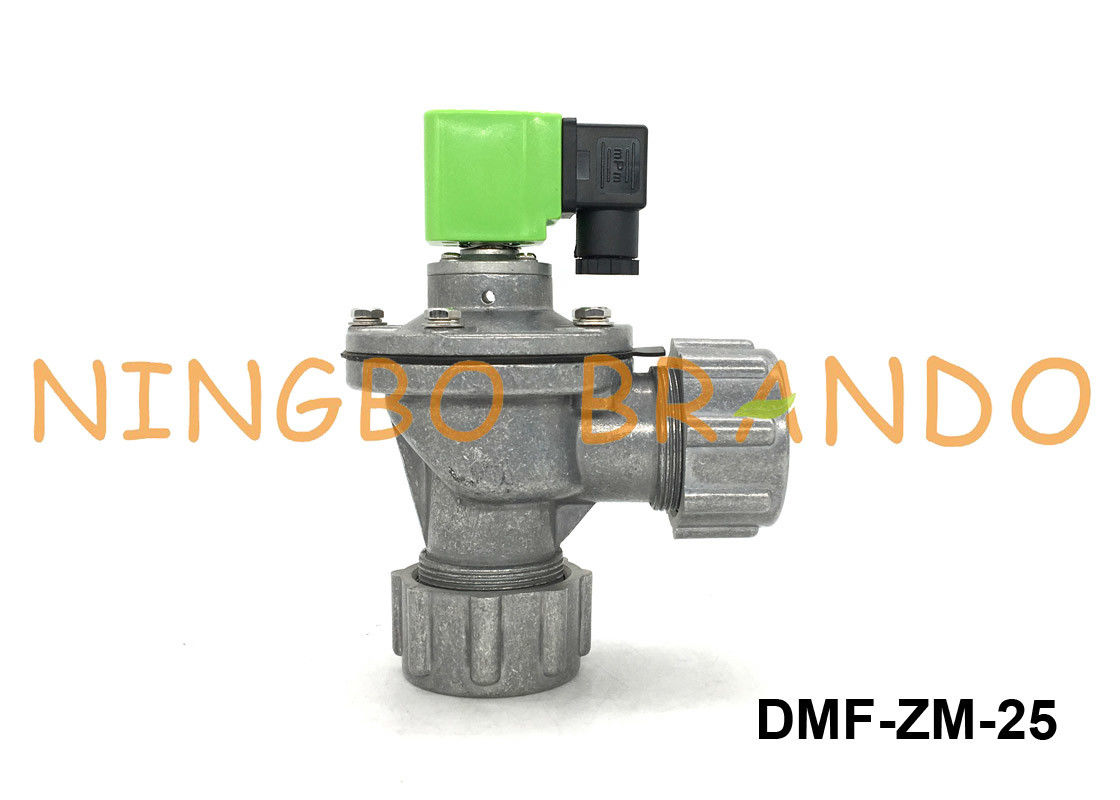

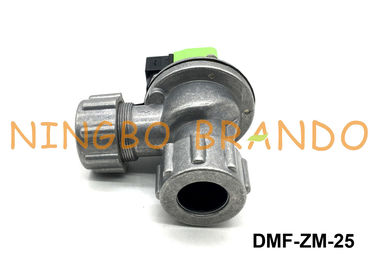

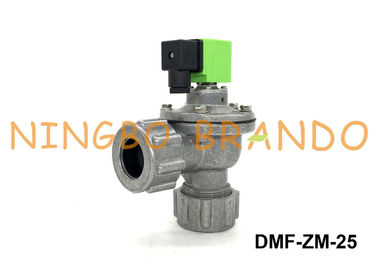

1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V

1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V

    • 1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V
    • 1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V
    • 1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V
  • 1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V

    Product Details:

    Place of Origin: CHINA
    Brand Name: Brando
    Certification: CE
    Model Number: DMF-ZM-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: T/T, L/C, PayPal, Western Union, MoneyGram
    Supply Ability: 100000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: SBFEC Type DMF-ZM-25 Diaphragm Valve Port Size: 1''
    Nominal Size: 25mm Connnection: Fixed Nut At Both End
    Diaphragm Material: NBR Number Of Diaphragm: 1
    Body Material: Aluminum Working Pressure: 0.1~0.8MPa
    Working Temperature: -25~+80℃ Supply Voltages: AC220V, AC110V, DC24V

    1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V



    Our DMF-ZM-25 dust removal pulse valve is the switch for compressed air in the dust clean blowing system of the pulsejet bag filter. Controlled by the output signal of the pulsejet control device (Sequential Timer), It makes dust clean to the filter bags cell by cell or row by row to keep the resistance of the bag house within the set range and thus guarantee the processing functions and the dust collecting efficiency of the bag house. The single DMF-ZM-25 pulse solenoid valve injection area reaches 8-10 square meters, and multiple pulse jet valves work at the same time to achieve the function of large-area injection.



    Material of construction:
    1. Body: High pressure diecast Aluminium
    2. Armature: 430FR Stainless Steel
    3. Diaphragm & Seal: Nitrile
    4. Spring: 321 Stainless Steel
    5. Screw: 302 Stainless Steel


    Working Index:
    1. Working Media: Clean, dry and Oil free air
    2. Working Pressure: 4kg/cm2 to 6kg/cm2
    3. Coil Voltage: DC 24V, AC 110V, AC 220V
    4. Current: 0.8A, 0.46A, 0.23A
    5. Temperature Level: -25 to 80⁰C, -25 to 150⁰C, -25 to 230⁰C
    6. RH factor: ≤ 85%
    7. Protection Class: IP 65



    YouTube video of DMF-ZM-25 SBFEC Replacement Diaphragm Valve:



    Overall dimension of DMF-ZM-25 SBFEC Type Dust Collector Valve:

    1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V



    Details display of SBFEC Replacement DMF-ZM-25 Pulse Jet Valve:

    1'' DN25 DMF-ZM-25 SBFEC Type Nitrile Diaphragm Valve With Fixed Nut DC24V AC110V AC220V



    Technical data of SBFEC Type ZM Series Electromagnetic Pulse Valves:

    Model
    DMF-ZM-20
    DMF-ZM-25
    DMF-ZM-40S
    Nominal Size
    20
    25
    40
    Port size
    mm
    20
    25
    40
    in
    3/4
    1
    1 1/2
    Blowing Area (m2)
    3.5~6
    8~10
    12~16
    Number of Diaphragms
    1
    1
    2
    Flow
    Kv
    17.55
    26.16
    45.82
    Cv
    20.48
    50.53
    53.47
    Pressure (Psi)
    0.1Mpa~0.8Mpa
    Temperature (℃)
    -25℃ to +80℃
    Voltage
    AC220V, AC110V, AC24V, DC24V

    Tips: All related accessories are also sold, like Pulse Controller, Diaphragm, Solenoid Coil and Armature Assembly.
