Dust Bag Filter System with High Strength Clean Air 1 1/2 Inch Solenoid Valve Diaphram D40
Pulse valve diaphragm before and after the pulse valve is divided into two air chamber, when electromagnetic pulse valve in the pulse bag filter dust on the clean compressed air system, the compressed air through the orifice, after entering air chamber, the gas chamber pressure after the air outlet of the valve on the diaphragm is clingy, pulse valve closed, the pulse controller output signal, the pulse valve moving armature, stomatal opening after the valve chamber, rapid loss of pressure chamber, make diaphragm backward-shift, compressed air through the outlet valve injection, injection, pulse valve is fully open pulse controller output signal disappears, the electromagnetic pulse valve pilot title iron reduction, air chamber after put the stomatal closure, After the air chamber pressure increases, the pulse valve diaphragm is close to the air outlet of the valve. The pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.
||Pulse Jet Valve NBR Diaphragm
||VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR
||Resistance to clean air
||Standard or Customized according to your need
||As per your request
||standard or as your design
||pp bag inside, carton box outside
|Date of Shipment
1) 7-15 days if goods in stock
2) 10-20 days if goods out of stock with molding
3) 25-35 days if goods out of stock without molding
4) Store, Prompt shipment if annual requirement informed
|Port of Loading
||By air, by sea, by express, etc

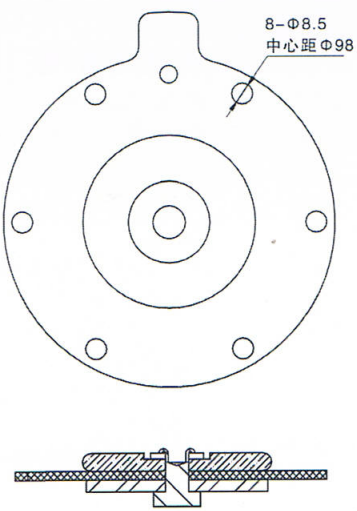

The Drawings of Diaphragm(D40) brings the further understand

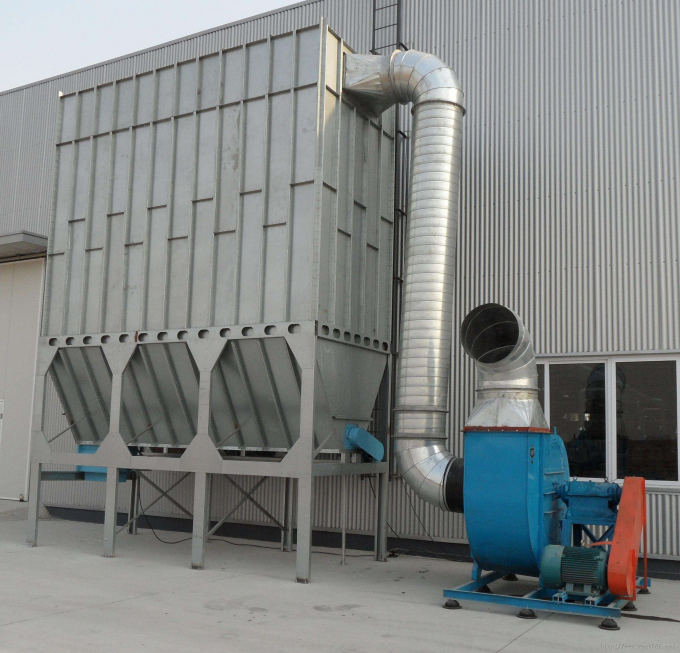

Practical Application Machine for Reference
Since the pulse valve diaphragm is a flexible mechanism that requires frequent opening and closing operations to control air circulation, and requires good flexibility, and requires as high a sealing as possible, the material of the pulse valve diaphragm is directly It is related to the service life and effect of the pulse valve diaphragm. In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag type dust collector cleaning system, and is also directly related to the use cost of the dust removal device. The pulse valve diaphragm has a promise of service life or number of movements. The use of a high-quality pulse valve diaphragm can directly reduce the cost of dust removal equipment.
It consists of a single layer or a plurality of layers coated with rubber on both sides, and there is also a rubber without a fabric. The film pressure method is divided according to its shape. According to the requirements of use, it is possible to manufacture diaphragms of different rubbers and different fabrics. The properties of the blended rubber of the nitrile rubber and the polysulfide rubber used for the diaphragm, the properties of the rubber compound used for the canvas disc diaphragm (commonly referred to as the diaphragm), and some silicone rubber, fluorine rubber, and chlorohydrin rubber developed in recent years. The diaphragm performance is as follows. The operating temperature range and pressure range of the diaphragm itself depend on the glue, fabric and structure. The diaphragm can work at -50 to 100 degrees Celsius and 0.4 to 0.8 MPa; the fluororubber and silicone rubber diaphragm can work at -80 to 232 degrees Celsius. The chlorohydrin rubber diaphragm can work under the pressure of 0.4~0.8MPa, with good air tightness, aging resistance and life expectancy equal to the engine overhaul life.
